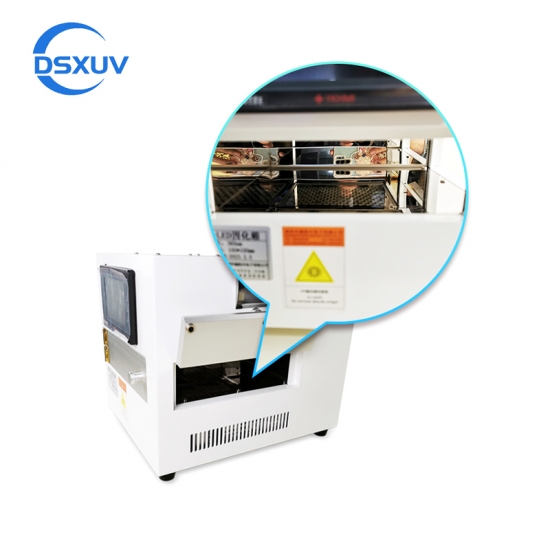

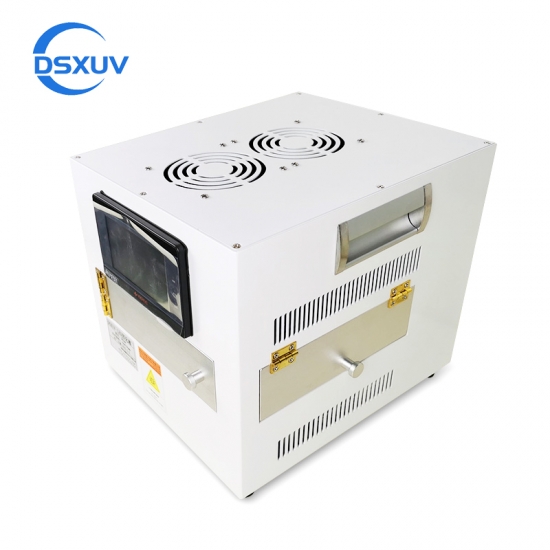

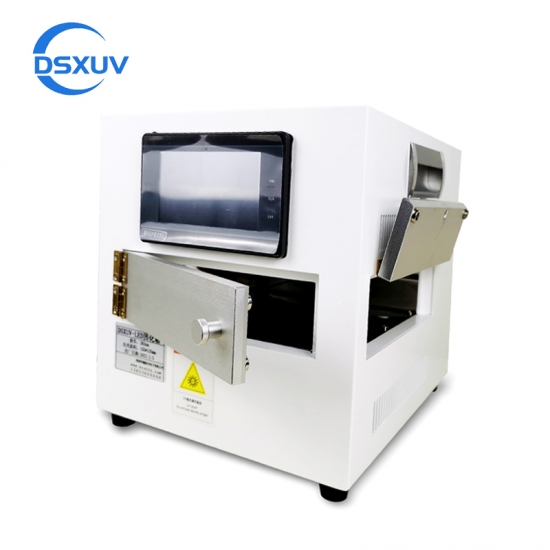

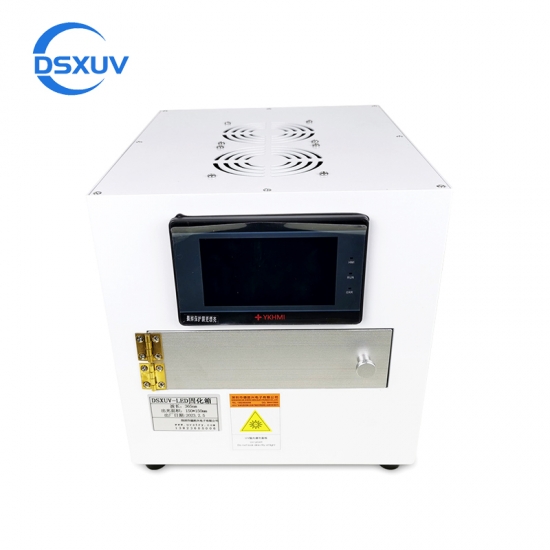

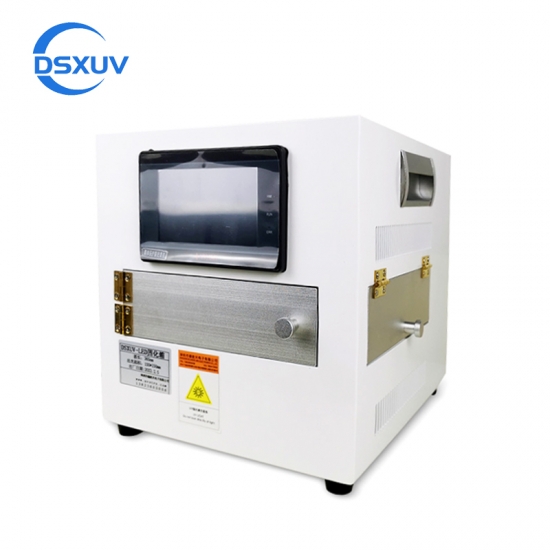

Compact 365nm UV LED Curing Chamber is air cooling, low temperature mirror aluminum inner cavity, support external signal input and trigger.
model no. :
UV LED Curing Light BoxBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :
ChinaBonding Catheter UV LED Curing Systems has the characteristics of low energy consumption, high temperature resistance, good stability, and small space occupation, widely used for laboratory, catheter material bonding, and other application.
Compact 365nm UV LED Curing Light Chamber is air cooling, low temperature mirror aluminum inner cavity, support external signal input and trigger, can be equipped with semi-automatic or automatic production line, professional for UV glue industry applications.
Parameters:
Outside Dimension |
L269*W323*H265mm |
Internal Cavity Size |
200x194x50mm |
Cooling |
Fan cooling |
Input Power |
100-240V AC 50-60 HZ |
Material |
White sheet metal |
Light Source |
One PCS |
Wavelength |
365nm (default) |
Intensity |
<1000mW/cm2 |
Lighting Area |
150X150mm |
Operation |
Touch screen display. Adjust curing time, intensity |
Total Power |
1200W |
Height of Curing |
10~15mm |
Service Life |
20000H |
Application |
Curing UV Glue |
Characteristics:
1. Baffle protects against radiation
2. Full mirror aluminum, even illumination
3. Long service life, more than 20000h
4. Touch screen man-machine interface control
5. Fan air cooling for heat dissipation
6. Can be customized according to different requirements
