QSC 2-4mW 270nm 275nm 280nm Deep UVC Ultraviolet UV Sterilizing Lamp 60°120° QSC 2-4mW 270nm 275nm 280nm Deep UVC Ultraviolet UV Sterilizing Lamp 60°120° QSC 2-4mW 270nm 275nm 280nm Deep UVC Ultraviolet UV Sterilizing Lamp 60°120°

QSC 2-4mW 270nm 275nm 280nm Deep UVC Ultraviolet UV Sterilizing Lamp 60°120°

Deep UVC UV Sterilizer Light has been applied in various civil and military scenarios such as Surface Sterilization, Water Sterilization, Ultraviolet Phototherapy, Air Purification, etc.

  • model no. :

    2-4mW UV Sterilizing Lamp
  • Brand:

    UV-LED CURING
  • port of dispatch :

    Shenzhen
  • Payment :

    T/T 100% Before Shipment
  • original region :

    China
Product Details

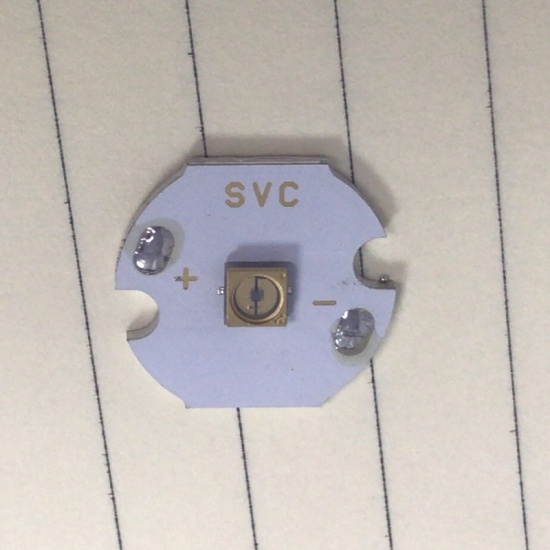

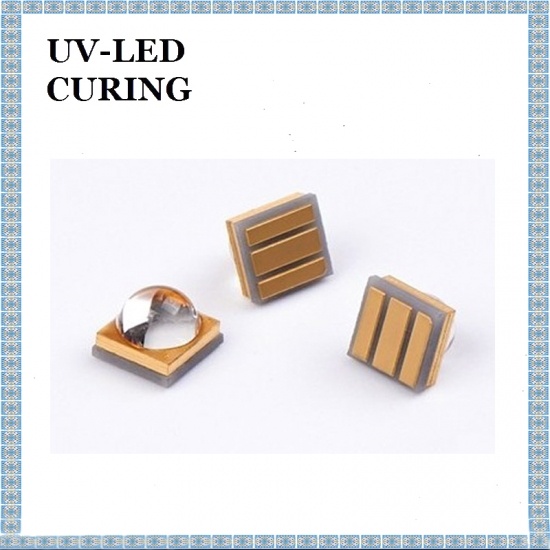

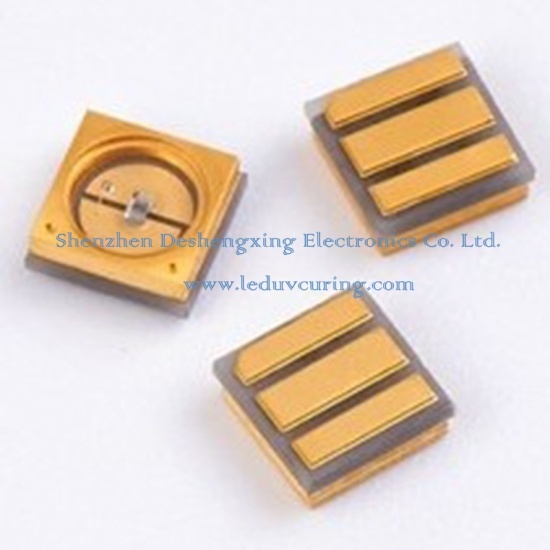

QSC 2-4mW UVC Ultraviolet UV Sterilizing Lamp is a deep UVC UV LED device that can emit 280nm ultraviolet light. It uses high thermal conductivity packaging materials, has the advantages of high reliability, low thermal resistance, light Angle adjustable, and so on, is an ideal deep UV light source chip device.


When purchasing, please note whether welding is required. The welding substrate is charged according to the market price, which is not too expensive.


Antiseptic UVC Ultraviolet Disinfection Lamp for Sterilization


Photoelectric Parameter of Bacteriocidal UVC UV LED Lamp Beads for Disinfection :

(Ta=25℃,RH=30%)

Parameter

Symbol

Sub-file

Value

Unit

Peak wavelength

λp

Default

(270, 280]

nm

-W

(280, 290]

Luminous Power

φe

20M001@40mA

2-4

mW

20E006@80mA

6-8

30a700@100mA

8-12

Driving Voltage

Vf

/

5-7

V

Full Width Half Maximum

△λ

/

11±2

nm

Angle of Light

2θ1/2

Default

60

deg.

-120°

120

Anti-static

HBM

/

>8

KV


Maximum Rating of Antiseptic UVC Ultraviolet Disinfection Lamp for Sterilization :

(Ta=25℃,RH=30%)

Parameter

Symbol

Value

Unit

Min

Type

Max

Operating Temperature

Topr

-30



60

Storage Temperature

Tstg

-40



100

Thermal Resistant

Rjs

15

K/W


Remark:

1.Light power refers to the total light output power collected using the integrating sphere (ATA-1000 in the distance of Hangzhou)

2.Thermal resistance refers to the total thermal resistance value from the power area of the chip to the patch solder

3.All data are based on the results of the deep ultraviolet technology test instrument, but some values may be slightly different depending on the conditions of the test equipment.

Sterilized UVC UV Light Emitting Diode for Disinfection Cabinet

Sterilized UVC UV Light Emitting Diode for Kitchen

Bactericidal UVC Ultraviolet LED Lights for Public Area

Sterilized UVC UV Light Emitting Diode killing Virus Suppliers


Bactericidal effect test of Bactericidal UVC Ultraviolet LED Lights Kill Bed Bugs :

280nm UVC Ultraviolet ray can be used to kill bacteria


Application for Sterilized UVC UV Light Emitting Diode killing Virus :

1. Surface sterilization : all objects in direct and indirect contact with the human body, their surface bacteria are in the application of deep ultraviolet LED sterilization consideration.

2. Water sterilization : water is the source of life, and the human health is closely related. Deep ultraviolet LED assisted water sterilization, making healthy water easier to obtain.

3. Air purification : a compact purifier with a higher spatial disinfection capability can be achieve by combining a deep UV LED with a filter.

4. Analysis and detection : certain substances have properties that enable them to absorb certain wavelengths of ultraviolet light and produce fluorescence. Because they are obtained by irradiating UV light and measuring the amount of light emitted.


Bacteriocidal UVC UV LED Lamp Beads Devices for Disinfection Cabinet
