PSC 2-4mW 120°275nm 280nm Deep UVC Ultraviolet LED Lamp Silicon Encapsulation PSC 2-4mW 120°275nm 280nm Deep UVC Ultraviolet LED Lamp Silicon Encapsulation PSC 2-4mW 120°275nm 280nm Deep UVC Ultraviolet LED Lamp Silicon Encapsulation PSC 2-4mW 120°275nm 280nm Deep UVC Ultraviolet LED Lamp Silicon Encapsulation

PSC 2-4mW 120°275nm 280nm Deep UVC Ultraviolet LED Lamp Silicon Encapsulation

This is a deep UVC UV LED Accessories that can emit 280nm ultraviolet light, special for sterilization, medical phototherapy and son on.

  • model no. :

    Deep UVC UV LED Light
  • Brand:

    UV-LED CURING
  • port of dispatch :

    Shenzhen
  • Payment :

    T/T 100% Before Shipment
  • original region :

    China
Product Details

L280-PSC1F20M001, PSC is the packaging process, 1F is the number of chips, 20M is the power distribution. This is a deep ultraviolet LED device that can emit 280nm ultraviolet light. Antiseptic UVC UV Light Sterilization Lamp Kills Bacteria uses alumina ceramic support, UV resistant silica gel and lead-free solder and other packaging materials, with low cost, easy to use and other advantages, is an ideal deep UV light source chip device.


When purchasing, please note whether welding is required. The welding substrate is charged according to the market price, which is not too expensive.


PSM UVC UV Disinfection Light


Photoelectric Parameter of Germicidal UVC LED Light Beads for Disinfection :

(Ta=25℃,RH=30%)

Parameter

Symbol

Sub-file

Value

Unit

Peak wavelength

λp

Default

270-285

nm

Luminous Power

φe

20M001@40mA

2-4

mW

Driving Voltage

Vf

/

5-7

V

Full Width Half Maximum

△λ

/

11±2

nm

Angle of Light

2θ1/2

Defult

120

deg.

Anti-static

HBM

/

>8

KV


Maximum Rating of Disinfectant UVC UV Germicidal Light for Sterilization :

(Ta=25℃,RH=30%)

Parameter

Symbol

Value

Unit

Min

Type

Max

Operating Temperature

Topr

-30



60

Storage Temperature

Tstg

-40



100

Thermal Resistant

Rjs

15

K/W


Remark:

1.Light power refers to the total light output power collected using the integrating sphere (ata-1000 in the distance of Hangzhou)

2.Thermal resistance refers to the total thermal resistance value from the power area of the chip to the patch solder

3.All data are based on the results of the deep ultraviolet technology test instrument, but some values may be slightly different depending on the conditions of the test equipment.

Germicidal UVC LED Light Beads for Disinfection Suppliers

Disinfectant UVC UV Germicidal Light for Sterilization

Antiseptic UVC UV Light Sterilization Lamp Kills Bacteria


Bactericidal UVC Disinfection Light for Healthcare

What kind of Ultraviolet ray can be used to kill bacteria?

Studies have shown that the UVC band (200-280nm) is the antiseptics part of ultraviolet radiation. For the different organisms, the bactericidal effect of each phase wavelength is different. Ultraviolet ray has good bactericidal effect to cholera, dysentery, enteritis and other major infectious diseases. According to the sterilization technical standard, each microorganism has its specifics UVC sterilization does standard. (exposure time multiply intensity)

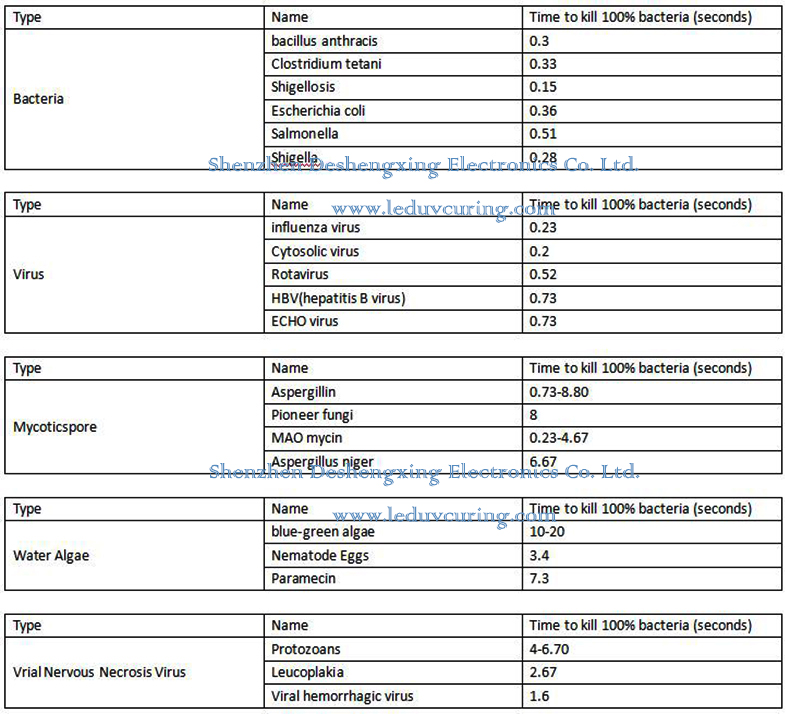

Type and time of Bactericidal UVC Disinfection Light for Healthcare :

Sterilization Efficiency of UVC Technology Against Common Bacteria and Viruses (UV Irradiation Intensity : 30,000uW/cm2)

280nm UVC Ultraviolet ray can be used to kill bacteria



Applications for UVC LED Killing Bacteria :

With its friendly bactericidal and sterilizing performance, deep ultraviolet LED has been applied in various civil and military scenarios such as air, water, surface sterilization, chemical analysis, and biological action, etc., showing infinite possibilities for the semiconductor LED industry.

Applications for UVC LED killing bacteria
