QSC 12mW Sterilized UVC UV Light Beads 60 degree Quartz Glass Out Light 120 degree Flat Out Light QSC 12mW Sterilized UVC UV Light Beads 60 degree Quartz Glass Out Light 120 degree Flat Out Light QSC 12mW Sterilized UVC UV Light Beads 60 degree Quartz Glass Out Light 120 degree Flat Out Light QSC 12mW Sterilized UVC UV Light Beads 60 degree Quartz Glass Out Light 120 degree Flat Out Light QSC 12mW Sterilized UVC UV Light Beads 60 degree Quartz Glass Out Light 120 degree Flat Out Light QSC 12mW Sterilized UVC UV Light Beads 60 degree Quartz Glass Out Light 120 degree Flat Out Light

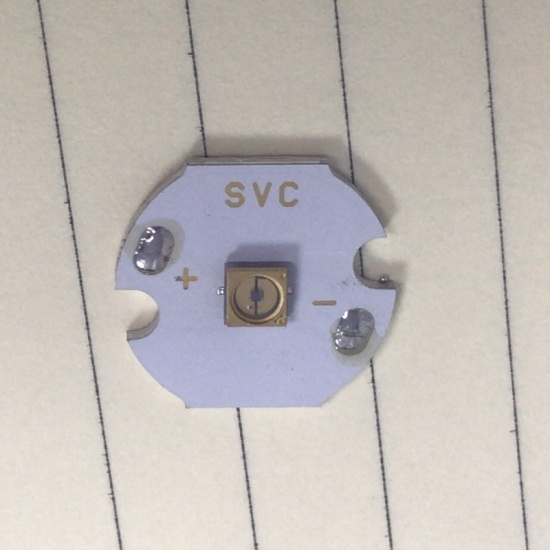

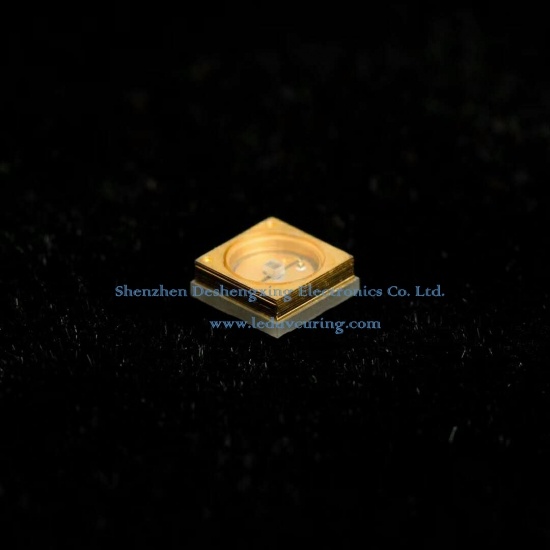

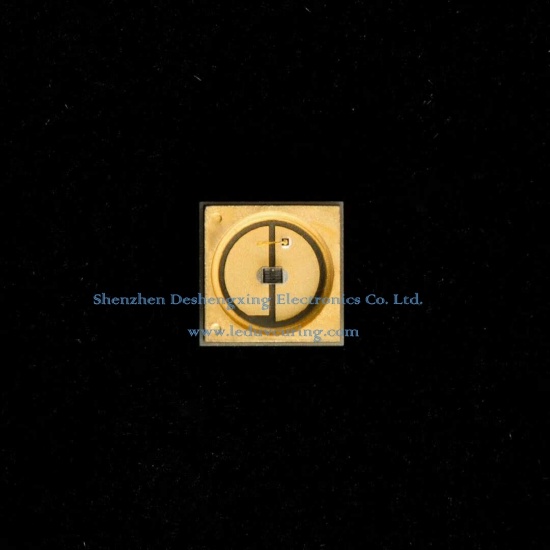

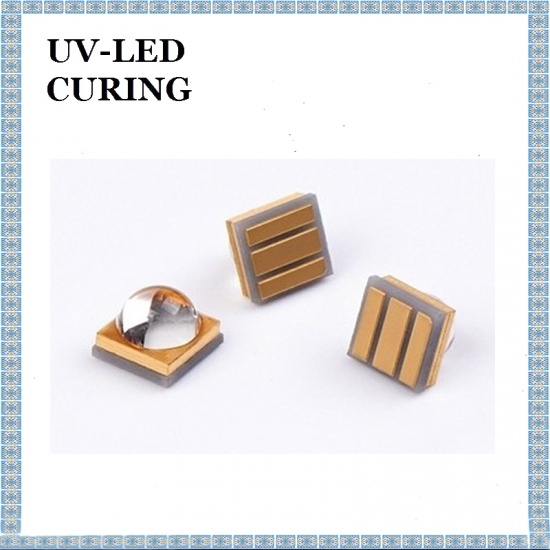

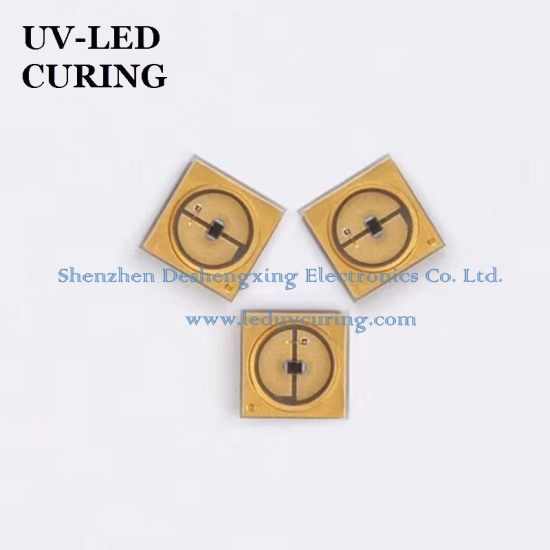

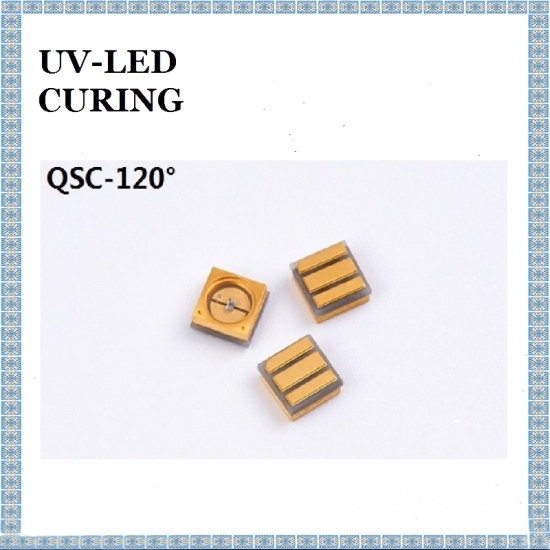

QSC 12mW Sterilized UVC UV Light Beads 60 degree Quartz Glass Out Light 120 degree Flat Out Light

UVC UV Disinfection Lamp will damage their DNA, and make them harmless. UVC can be used for Water Disinfection, Air Disinfection and Surface Disinfection.

  • model no. :

    12mW UVC UV Lamp Beads
  • Brand:

    UV-LED CURING
  • port of dispatch :

    Shenzhen
  • Payment :

    T/T 100% Before Shipment
  • original region :

    China
Product Details

UVC Disinfect is a fast, effective and safe technique. When microorganisms (ex : bacteria, virus cyst and mycete) are exposed under UVC Light, UVC UV Disinfection Lamp will damage their DNA, and make them harmless. UVC can be used for Water Disinfection, Air Disinfection and Surface Disinfection. UVC Light measurement can be used to measure air, impurity of matter, water quality, protein and DNA.


When purchasing, please note whether welding is required. The welding substrate is charged according to the market price, which is not too expensive.


High Performance UVC UV Sterilizer Light Sterilization and Disinfection


Photoelectric Parameter of High Power UVC Ultraviolet Light Beads for Sterilization of Kitchen :

(Ta=25℃,RH=30%)

Parameter

Symbol

Sub-file

Value

Unit

Peak wavelength

λp

Default

(270, 280]

nm

-W

(280, 290]

Luminous Power

φe

20M001@40mA

2-4

mW

20E006@80mA

6-8

30a700@100mA

8-12

Driving Voltage

Vf

/

5-7

V

Full Width Half Maximum

△λ

/

11±2

nm

Angle of Light

2θ1/2

Default

60

deg.

-120°

120

Anti-static

HBM

/

>8

KV


Maximum Rating of Deep Antiseptic UVC UV Sterilizer Light for Regular Disinfection :

(Ta=25℃,RH=30%)

Parameter

Symbol

Value

Unit

Min

Type

Max

Operating Temperature

Topr

-30



60

Storage Temperature

Tstg

-40



100

Thermal Resistant

Rjs

15

K/W


Remark:

1.Light power refers to the total light output power collected using the integrating sphere (ATA-1000 in the distance of Hangzhou)

2.Thermal resistance refers to the total thermal resistance value from the power area of the chip to the patch solder

3.All data are based on the results of the deep ultraviolet technology test instrument, but some values may be slightly different depending on the conditions of the test equipment.

High Power UVC Ultraviolet Light Beads for Sterilization of Kitchen Suppliers

Deep Antiseptic UVC UV Sterilizer Light for Regular Disinfection

High Efficiency UVC UV Disinfection Lights Killing Pathogenic Bacteria

Germicidal UVC Ultraviolet Germicidal Lights Killing Virus


Type and time of Germicidal UVC Ultraviolet Germicidal Lights Killing Virus :

The new coronavirus 2019-nCoV UV LED left dose : 1085mJ/cm2

Deep UVC Ultraviolet Light Beads Killing Bacteria


Principle of High Efficiency UVC UV Disinfection Lights Killing Pathogenic Bacteria :

Germicidal UVC Ultraviolet Germicidal Lights for Disinfection Distributors
