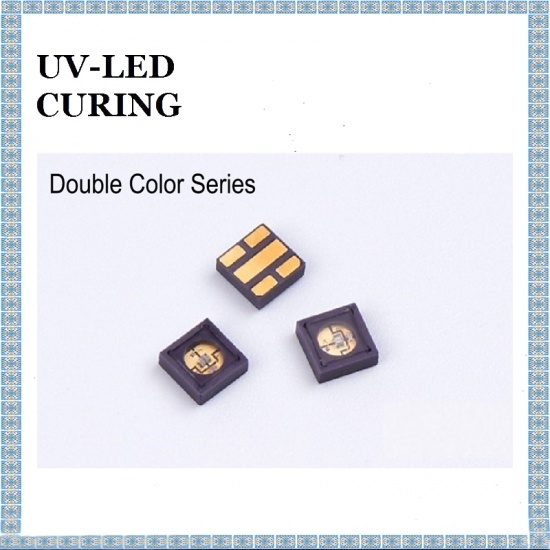

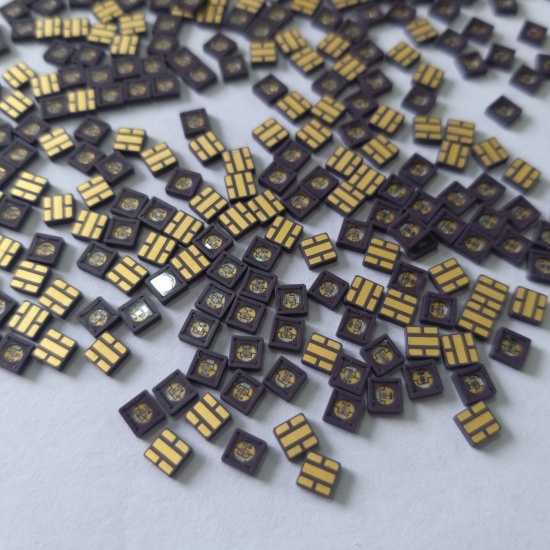

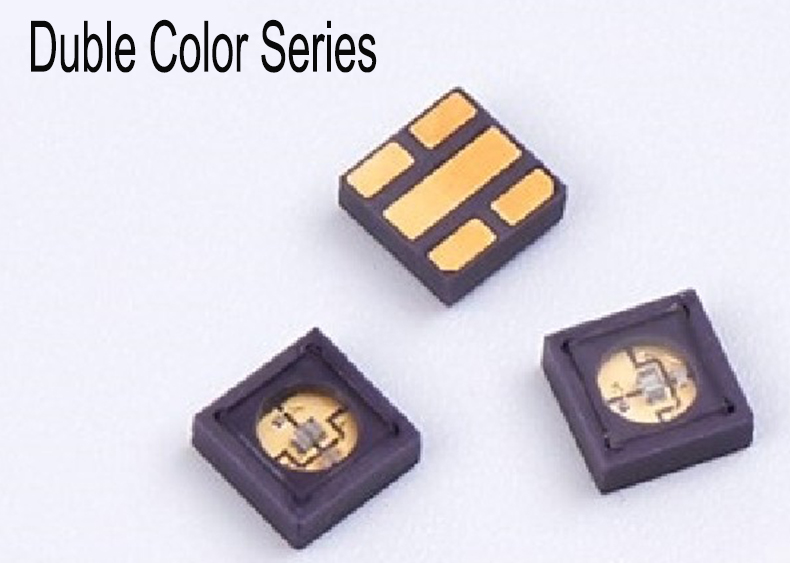

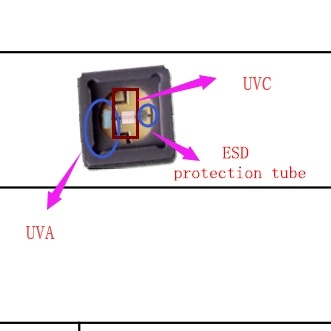

L280405-3535P3 is a deep UVA UVC ultraviolet LED device that can emit 280nm and 405nm UV light at the same time.
model no. :
UVC LED Sterilization LampBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
ChinaL280405-3535P3 is a deep ultraviolet LED device that can emit 280nm and 405nm UV light at the same time. It uses high thermal conductivity alumina ceramic support, quartz glass and lead-free solder and other packaging materials, has the advantages of high reliability, low thermal resistance, environmental protection, low light decay, large luminous Angle and so on, is an ideal deep UV light source chip device.
Type : DSX280405-3535P3
Parameter of power supply : 3-6mW@40mA
Voltage : 5-8V
Light Output Angle : flat 120°
UVC Photoelectric Parameter of Germicidal UVC LED Light Kill Bed Bugs :
(Ta=25℃,RH=30%)
Item |
Symbol |
Unit |
Value |
UVC peak wavelength |
λp |
nm |
270-285 |
UVC radiant flux |
Po |
mW |
3-6 |
UVC forward current |
If |
mA |
40 |
UVC forward voltage |
Vf |
V |
5-8 |
UVC max forward current |
Ifmax |
mA |
120 |
UVA Photoelectric Parameter of Antiseptic UVC Ultraviolet Germicidal Irradiation for Sterilization :
(Ta=25℃,RH=30%)
Item
Symbol
Unit
Value
UVA peak wavelength
λp
nm
405
UVA radiant flux
Po
mW
60-150
UVA forward current
If
mA
40-80
UVA forward voltage
Vf
V
3.0-4.0
UVA max forward current
Ifmax
mA
100
Remark:
1.Light power refers to the total light output power collected using the integrating sphere (ATA-1000 in the distance of Hangzhou)

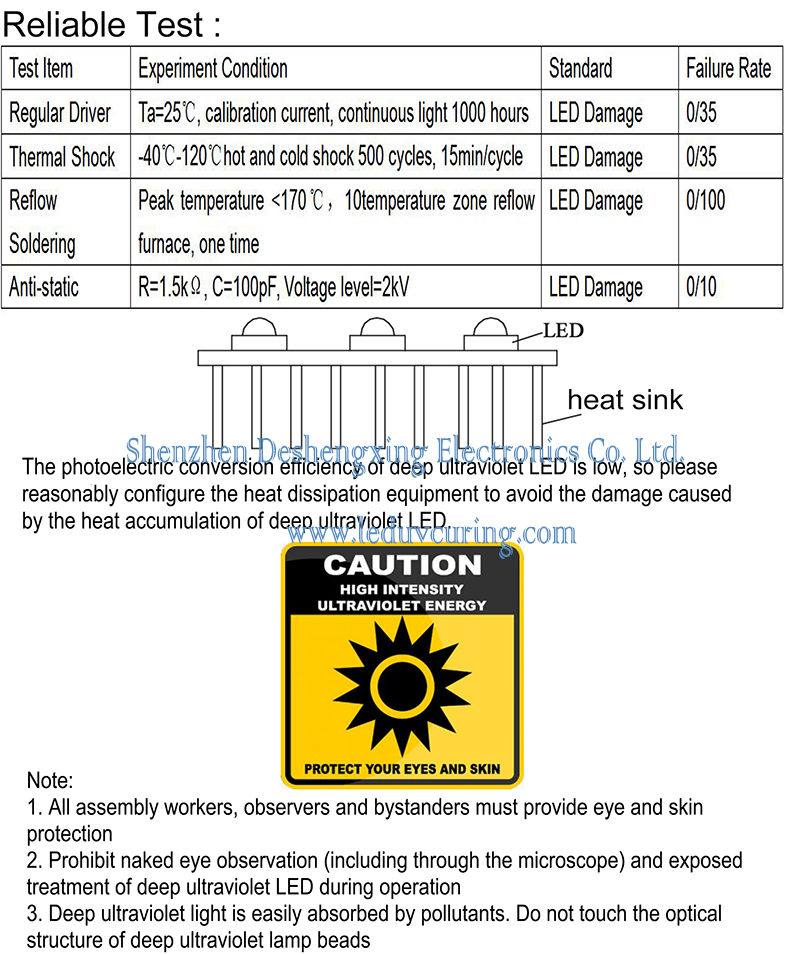

2.It is recommended to provide a good cooling environment or cooling system for the best use.
3.All data are based on the results of the deep ultraviolet technology test instrument, but some values may be slightly different depending on the conditions of the test equipment. The increase of the injection current will cause the temperature to rise, the light attenuation of LED beads will be accelerated, and the service life will be shortened. When tested or used outside the above limit range, the reliability of the device may be affected and permanent damage may be caused.
Application of Antiseptic UVC UV Light Beads Kill Virus :
sterilization
Medical phototherapy
Optical sensor
Biological analysis / detection
Security testing
Bactericidal effect test of Disinfectant UVC Ultraviolet Light Emitting Diodes Kills Virus :

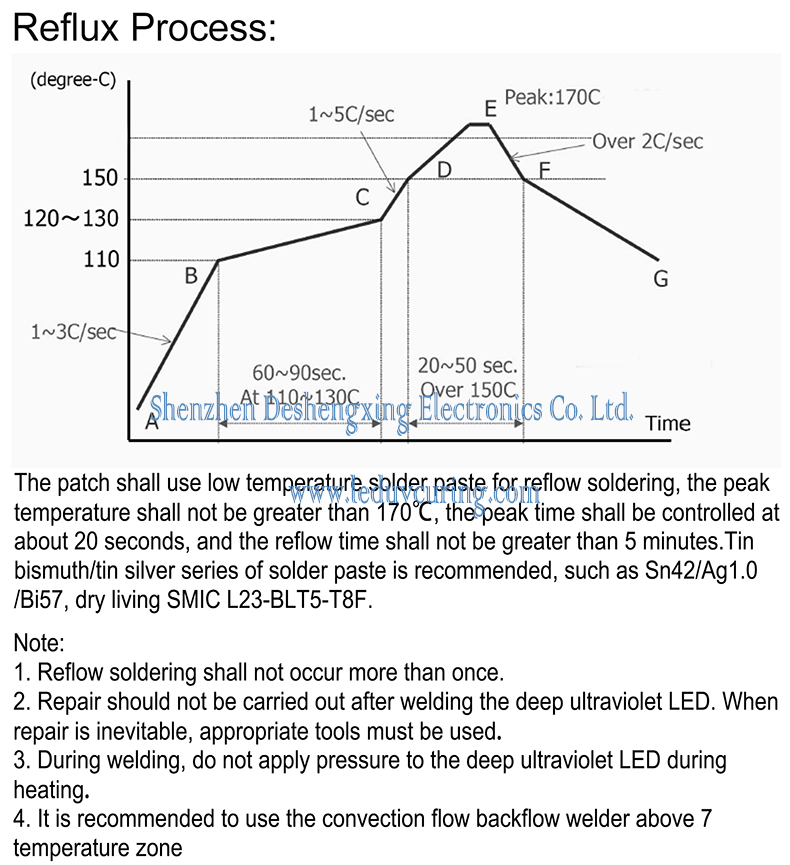

When purchasing, please note whether welding is required. The welding substrate is charged according to the market price, which is not too expensive.
