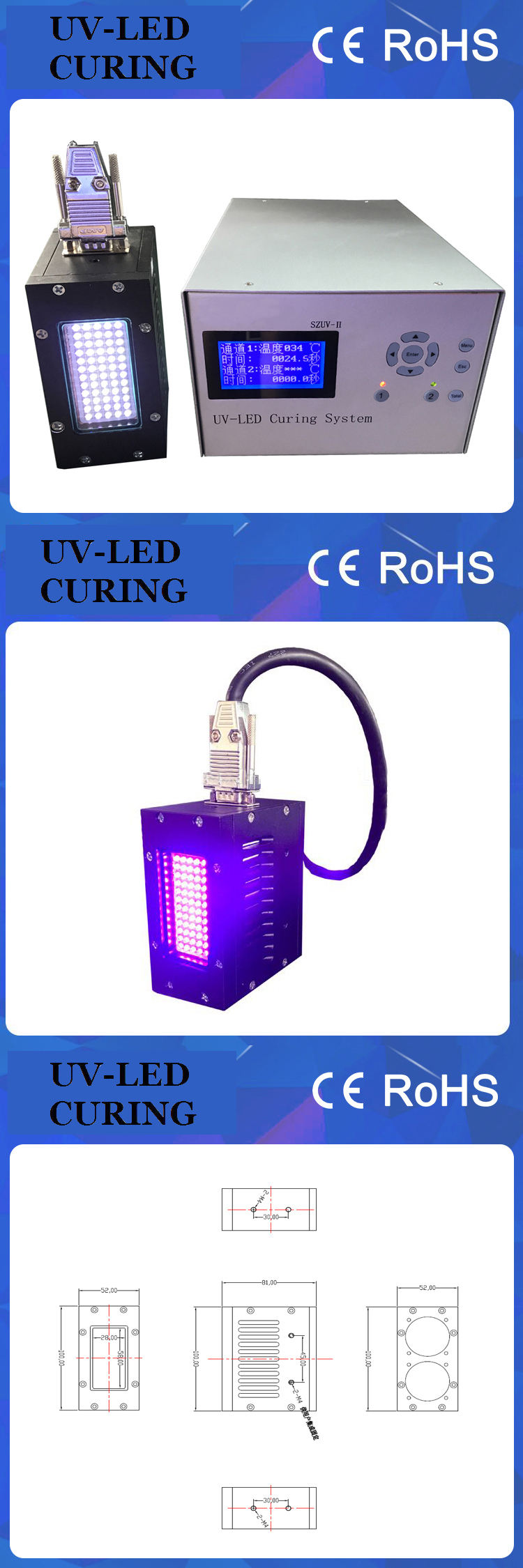

Portable UV Coating Machine UV Curing Machine is easy to use. Its print speed is 10m to 30m each minute.
model no. :
Portable UV CoatingBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINALead Time :
15-30 DAYS
Portable UV Coating Curing Machine for UV Printing has fast curing speed. On the other hand, it is a portable machine, you can carry it to somewhere you need it. The product is simply curing device, so it is easy to maintain.
Product Parameters of Hand-held UV Coating UV Solidify Machine:
Condition |
New |
Type |
UV curing machine |
Automatic Grade |
Automatic |
Place of Origin |
Guangdong, China (Mainland) |
Brand Name |
UV-LED CURING |
Model Number |
UV-LED CURING-4 |
Voltage |
220V |
Power(W) |
10w~2000w |
Dimension(L*W*H) |
340*240*170mm |
Weight |
10kg |
Certification |
ISO |
Warranty |
1 Year |
After-sales Service Provided |
Engineers available to service machinery overseas |
Wavelength |
365nm~405nm |
Cooling Method |
Air Cooling or Water Cooling |
|
|

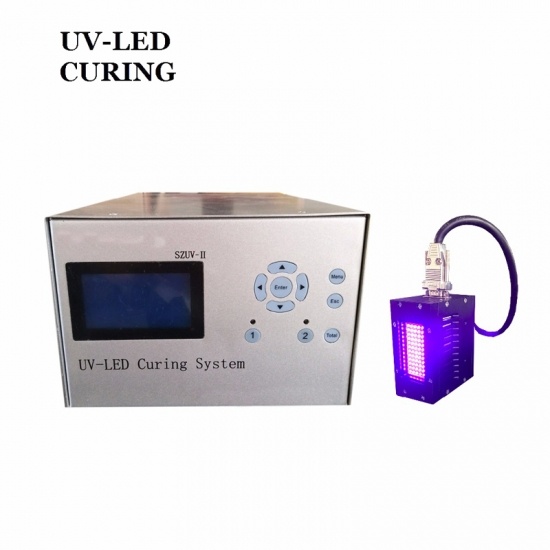

Technical Data of the Controller of Large Area LED UV Curing Coating Machine: |
||
Type |
SZUV -Ⅱ |
|
Channel |
2 |
|
The size of controller |
L200*W310*H150mm |
|
Terminal I/O |
Input |
Pedal switch & serial RS-232 communication signals |
Output |
Serial RS-232 communication signals |
|
Cooling method of controller |
Air cooling |
|
Power supply voltage |
AC100~240V±10%(50/60HZ) |
|
Operation mode |
Touch Panel |
|
Ambient temperature and humidity |
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH |
|
Dimming/Exposure control |
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s) |
|
Setting operation |
Using the operating switch is set, Power key parameter switch, RS-232 |
|
External Control |
External input |
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch |
External output |
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used) |

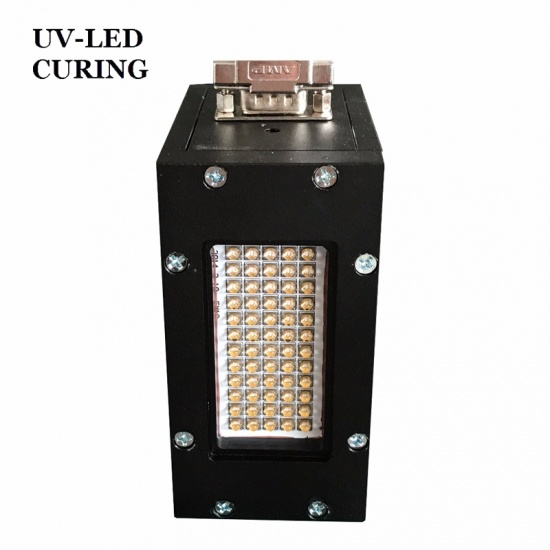

Irradiation Head Specification of High Power UV Coating Curing Equipment for Bonding :
Curing Area
Wavelength
Power Intensity
Cooled Method
Print Speed
60*25mm
395nm
12W/cm2
Air or Water Cooled
10m to 30m / min

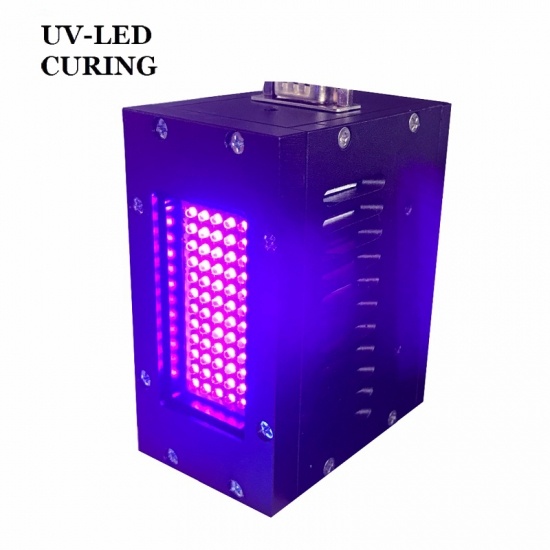

Air Cooling UV Solidify Machine, Emitting Window:104*25mm, is designed as a simple, low cost, small form factor air-cooled UV LED curing lamp for pinning and curing of inks, coatings and adhesives, mobile phone touch screen.
The WnnexCureTM EB168 UV Light Emitting Diode provides highest output power in an extremely medium mechanical package for high speed pinning and full cure applications. The EB168 UV LED Light Source is CE, RoHS, and REACH compliant.
100*100mm high power top quality power saving 365nm LED UV Curing Machine Curing UV Glue can be customized. You know 365nm is the best wavelength to cure UV glue.
Customized 365nm UV LED Curing System for lens bonding. UV LED Area Curing System can make glue curing, wavelength 365nm, rec area : 20*25mm, quickly, effective to cure.
Energy Saving Bar Type LED UV Curing System, This kind of UV LED curing system can be used for curing UV ink, UV varnish and UV paint and is suitable for flex printer, offset printer, flatbed printer and flexo printer.
High Power UV LED Dryer for UV Adhesive Curing System is 30*120mm, 365nm.
