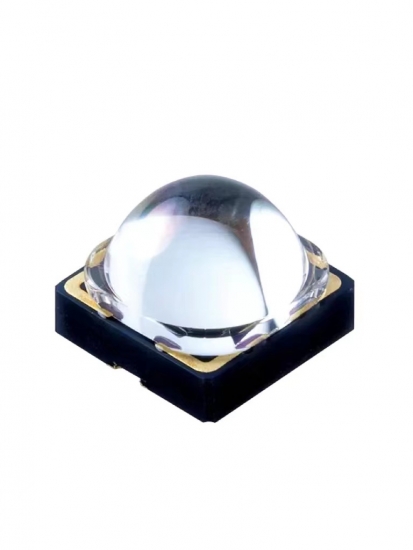

NICHIA NVSU233C-D4 5W High Power SMD UV LED Light Beads NICHIA NVSU233C-D4 5W High Power SMD UV LED Light Beads

NICHIA NVSU233C-D4 5W High Power SMD UV LED Light Beads

Nichia NVSU233C-D4 SMD UV LED

  • model no. :

    UV LED Light
  • Brand:

    DSXUV
  • port of dispatch :

    Shenzhen
  • Payment :

    T/T 100% before shipment
  • original region :

    Japan
Product Details

NVSU233C-D4-2


parameter:

Model: NVSU233C-D4
Peak wavelength 365nm
Forward current: 1400mA
Power: 5.88W
Voltage: 3.6-4V
Radiation flux:>1450mW/cm2
Lens material: quartz glass
Lens angle: 60 degrees

Size: 3.5X3.5mm


Application field:
The most commonly used areas are UV curing and bonding. UV glue and UV ink curing. The applicable devices are UV LED point light sources, UV LED line light sources, and UV LED surface light sources.
Penetrant testing and fluorescence testing.
Biopolymerization and fluorescence observation.
Air conditioning refrigerant leakage detection.
Engine lubricating oil leakage detection.
Criminal investigation: observation of fingerprints and blood stains.
Fluorescence observation of ores.
Oil contamination cleaning detection.
Fluorescent testing: Fluorescent penetrant testing and fluorescent magnetic particle testing for steel, non-ferrous metals, automobiles, aircraft, etc.
Pollution inspection: electronic components, motherboard, dust inspection, LCD panel, clean room entry inspection.
Leakage inspection: oil leakage inspection of hydraulic machines, liquid tanks, exhaust pipes, etc., and water leakage inspection using fluorescent agents.

Confirmation of Degreasing Cleaning: Confirmation of Degreasing Cleaning for Food Industry, Kitchen, Cookware, and Tableware.
