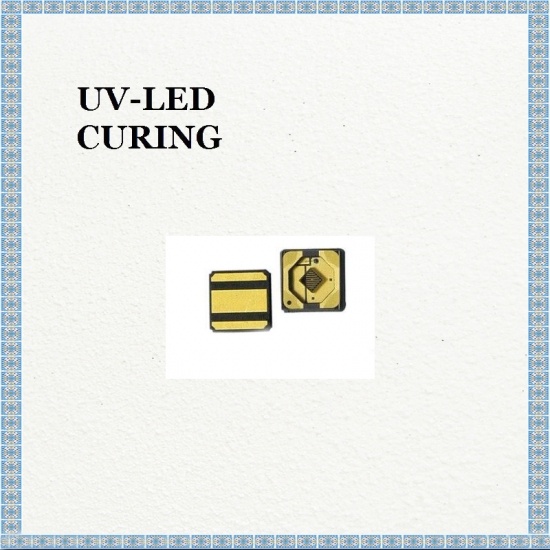

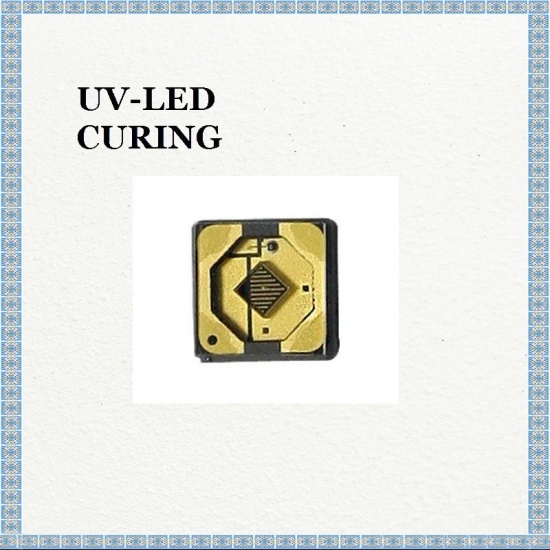

Deep UVC LED 275nm CUD7GF1A Water Sterilizer Medical Treatment

CUD7GF1A Deep UVC LED, 275nm newly imported product, is used for microbial sterilizing of medical treatment,  water treatment and air purification.

  • model no. :

    CUD7GF1A 275nm UVC LED
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
  • Lead Time :

    The Same Day
Product Details

CUD7GF1A UV LED UVC 275nm is a deep ultraviolet light emitting diode with peak emission wavelengths from 270nm to 280nm. The Deep UV LED is sealed in Ceramic packages with a choice of UV-transparent optical window. It incorporates state of the art SMD design and low thermal resistance. CUD7GF1A UV LED UVC 275nm is designed for air and water sterilization and tools including chemical and biological analysis in that spectral range.

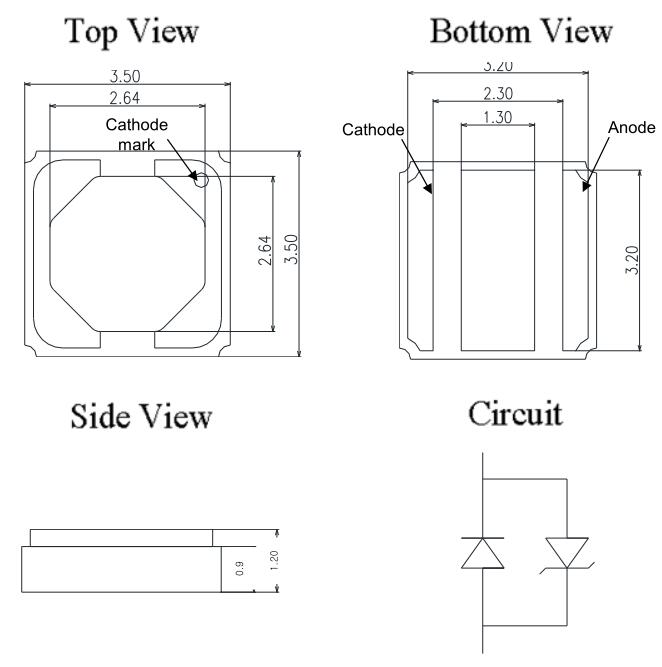

Outline dimensions of Ultraviolet Emitting 275nm UV LED:

CUD7GF1A UV LED


Notes :

[1] All dimensions are in millimeters.

[2] Scale : none

[3] Undefined tolerance is ±0.2mm

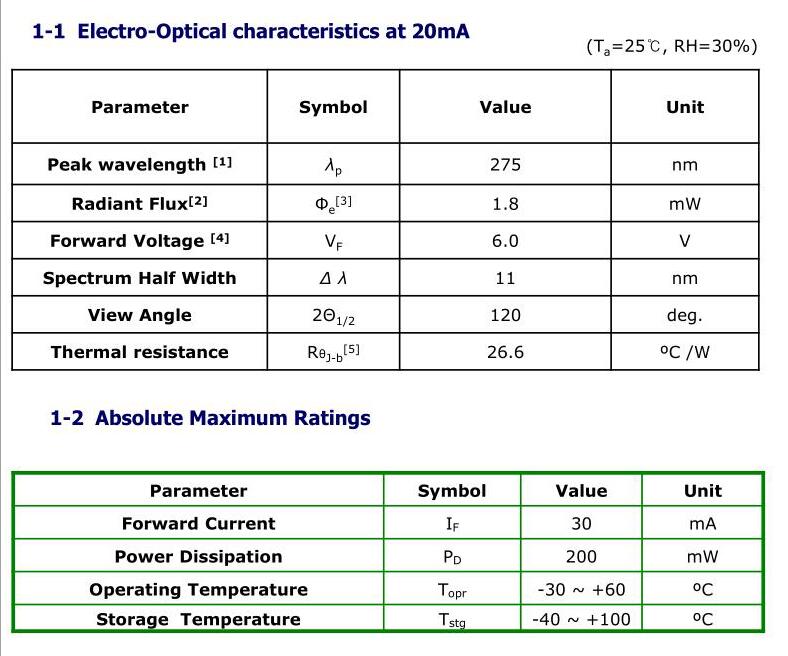

Characteristics of CUD7GF1A UVC LED :

Deep UVC LED 275nm UV Sterilization


Notes :

1. Peak Wavelength Measurement tolerance : ±3nm

2. Radiant Flux Measurement tolerance : ± 10%

3.  Φ e is the Total Radiant Flux as measured with an integrated sphere.

4. Forward Voltage Measurement tolerance : ±3%

5. R θ J-b is the thermal resistance between chip junction to PCB board bottom.

The PCB is made of aluminium and the size of PCB is 3.5mm by 3.5mm
