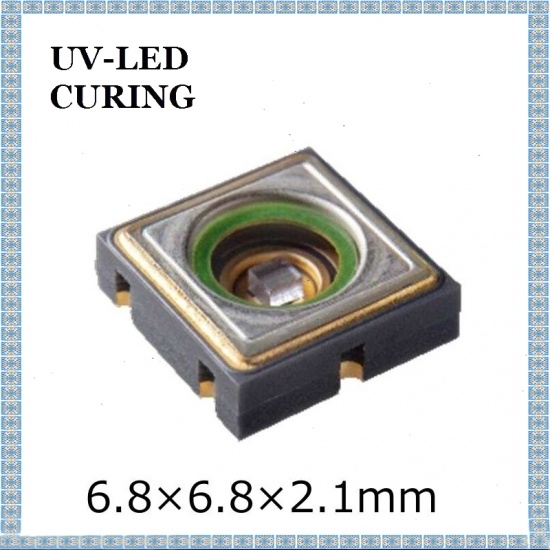

High Reliability NCSU334A UVC LED 280nm UV LED for Sterilization and Disinfection

High Reliability NCSU334A UVC LED 280nm UV LED for Sterilization and Disinfection

Newest NICHIA NCSU334A UVC LED 280nm Deep UV LED is specially used for sterilization and disinfection.

  • model no. :

    NCSU334A UV LED Light
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
  • original region :

    CHINA
Product Details

NICHIA UVC LED 280nm NCSU334A is specially used for sterilization and disinfection. NICHIA will push out a new product UVC-LED 280nm in April, 2019. Welcome to purchase the samples for testing.


Specifications of High Power NCSU334A 280nm UV LED for Disinfection:

1.Absolute Maximum Ratings of Best 280nm UVC UV Light

Item

Symbol

Absolute maximum rating

Unit

Forward current

IF

500

mA

Pulse forward current

IFP

600

mA

Allowable reverse current

IR

85

mA

Power dissipation

PD

3.16

W

Operating temperature

Topr

-10~85

Storage temperature

Tstq

-40~100

Junction temperature

TJ

110

* Absolution Maximum Ratings at Ts=25℃

* TFP conditions with pulse width ≤10 ms and duty cycle ≤ 10%


2.Initial Electrical / Optical Characteristics of High power 280nm UVC UV Light

Item

Symbol

Condition

Typ

Max

Unit

Forward voltage

VF

IF=350mA

5.2

-

V

Radiant flux

Φe

IF=350mA

55

-

mW

Peak Wavelength

λp

IF=350mA

280

-

nm

Spectrum half width

△λ

IF=350mA

10.0

-

nm

Thermal resistance

RθJS

-

8.4

9.9

/W

RθJc_real

-

4.3

4.6

RθJc_el

-

4.1

4.4

* Characteristics at Ts=25℃.

* Radiant flux value as per CIE 127:2007 standard.

* RθJS is the thermal resistance from the junction to the Ts measurement point.

* Thermal Resistance values (RθJc_real) determined by considering the energy conversion efficiency (ηe=3%). Refer to JESD51.

* The thermal resistance between value (RθJc) is used to perform logical analysis (e.g. computer-based thermal analysis simulation) and represents a thermal resistance between the die to the Tc measurement point (PCB used : Aluminum PCB t = 1.5mm, Insulating layer t =0.12mm).

* For more details on thermal resistance, see CAUTIONS, (6) thermal management.

* It is recommended to operate the LEDs at a current greater than 10% of the sorting current to stabilize the LED characteristics.


RANKS of Soldering NVSU334A 280nm UV LED for Sterilization :

Item

Rank

Min

Max

Unit

Forward voltage

-

4.5

6.0

V

Radiant flux

P14

54.4

76.8

mW

P13

38.4

54.4

Peak wavelength

U280

275

285

nm

* Ranking at Ts=25℃

* Forward voltage tolerance : ±0.09V

* Radiant flux tolerance : ±6.5%

* Peak wavelength tolerance : ±3nm

* LEDs from the above ranks will be shipped. The rank combination ratio per shipment will be decided NICHIA.


Outline Dimensions of Installing NCSU334A 280nm UV LED for UV Flashlight :

UVC Ultraviolet LED Wholesale

Soldering of Deep NCSU334A 280nm UV LED for Disinfection

Recommended reflow soldering condition (lead-free solder)

High Power UVC Ultraviolet LED for Sterilization

1.This LED is designed to be reflow soldered to a PCB. If dip soldered or hand soldered, NICHIA will nit guarantee its reliability.

2.Reflow soldering must not be performed more than twice.

3.When the LEDs are cooled from the peak reflow temperature, ensure that the cooling is performed very gradually to avoid excessive stress on the LED (e.g. causing cracks in the solder joints). Ensure that sufficient preliminary verification is performed to ensure that there are no issues with the chosen reflow soldering conditions / process.

4.During reflow soldering, the heat and atmosphere in the reflow oven may cause the optical characteristics to degrade. In particular, reflow soldering performed with an air atmosphere may have a greater negative effect on the optical characteristics than if a nitrogen atmosphere is used; NICHIA recommends using a nitrogen reflow atmosphere.

5.Repairing should not be done after the LEDs have been soldered. It should be confirmed beforehand whether the characteristics of the LEDs will or will not damaged by repairing.

6.The Die Heat Sink should be soldered to customer PCB. If it is difficult or impossible, use high heat-dissipating adhesive.

7.When soldering, do not apply stress t the LED while the LED is hot.

8.When using a pick and place machine, choose an appropriate nozzle for this product.

9.The soldering pad pattern above is a general recommendation for LEDs to be mounted without issues; if a high degree of precision is required for the chosen application (i.e. high-density mounting), ensure that  the soldering pad pattern is optimized.

10.When flux is used, it should be a halogen free flux. Ensure that the manufacturing process is not designed in a manner where the flux will come in contact with the LEDs.

11.Ensure that there are no issues with the type and amount of solder that is being used.


Optical characteristics of High Power NCSU334A 280NM Ultraviolet LED for Sterilization :

High Efficiency UVC Ultraviolet LED for UV Flashlight

Reliability of Safety 280nm UVC UV Light for UV Flashlight :

NICHIA UV LED Lights Lights for Sale

Cautions of High Efficiency NICHIA UV LED Lights 280nm UV LED for Sterilizatioin :

High Power Ultraviolet LED Lights for UV Flashlight

280nm UVC Ultraviolet LED Lights Wholesale

High Power 280nm UVC Ultraviolet LED Lights for UV Coating

High Power 280nm UVC Ultraviolet LED Lights for Disinfection

Soldering 280nm UVC Ultraviolet LED Lights for UV Flashlight
