High Power Desktop 300x30mm UV LED Curing Machine High Power Desktop 300x30mm UV LED Curing Machine High Power Desktop 300x30mm UV LED Curing Machine

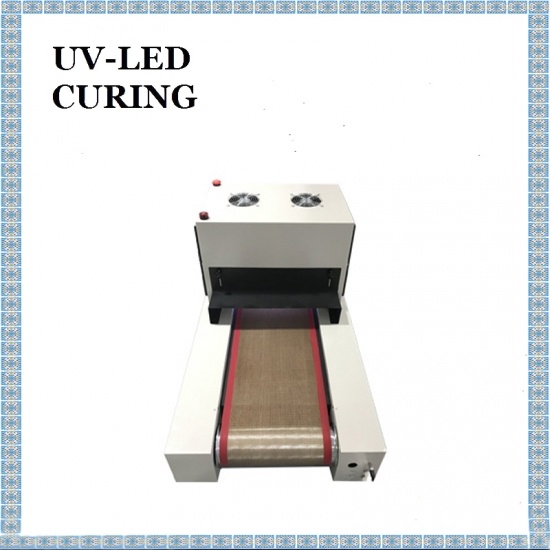

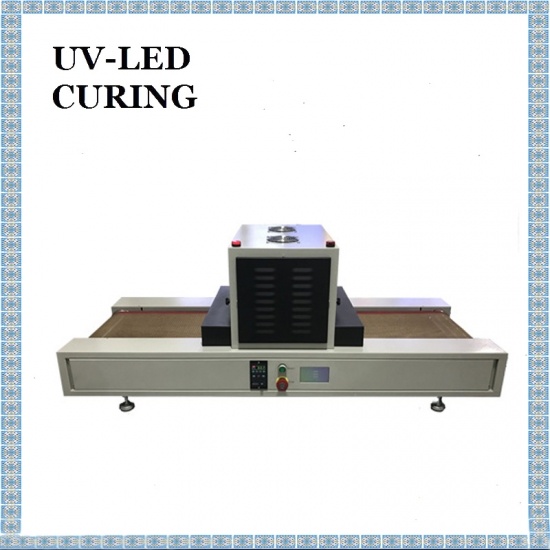

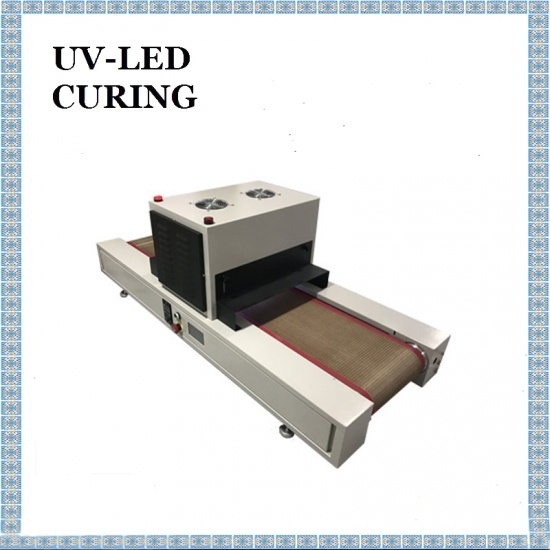

High Power Desktop 300x30mm UV LED Curing Machine

300*300mm LED UV curing machine replaces traditional mercury lamp, suitable for curing of various UV glue, UV ink, infrared transmission Intelligent control, start-stop control on demand.

  • model no. :

    Customized UV Curing Euqipment
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
  • original region :

    CHINA
Product Details

300*300mm LED UV curing machine replaces traditional mercury lamp, suitable for curing of various UV glue, UV ink, infrared transmission Intelligent control, start-stop control on demand.


Product Overview :

The UVLED head of the machine is integrated with imported high-intensity ultraviolet LED. The UV spectrum wavelength is 365nm. The effective curing area is 300X30mm. It supports external signal input and triggering. It can be used in semi-automatic or fully automatic production lines. The conveyor belt is made of Teflon.

LED UV curing machine replaces traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption, high efficiency, no infrared radiation, cold light source, suitable for curing of various UV glue, UV ink, infrared transmission Intelligent control, start-stop control on demand.


Specification Sheet :

wavelength : 365nm

Type : DSX-S396-300X30-365

Electric power  :  1188W

Optical power density   : 8000MW/CM2

Irradiation area  : 300X30mm

Heat dissipation method  : Water cooling

Overall size  : L1500mm*W570mm*H490mm


UV Conveyor


UV Curing Machine
