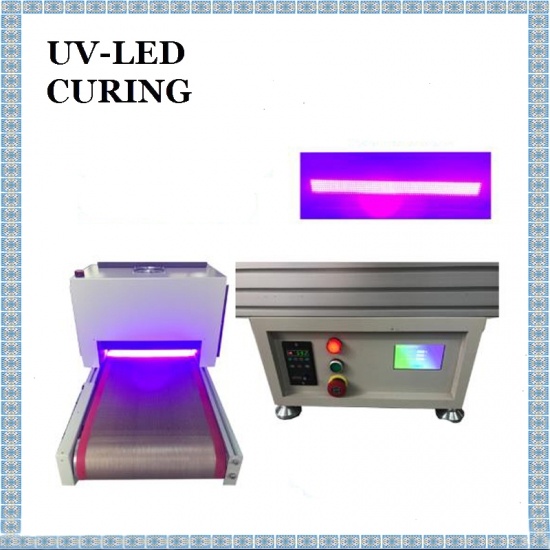

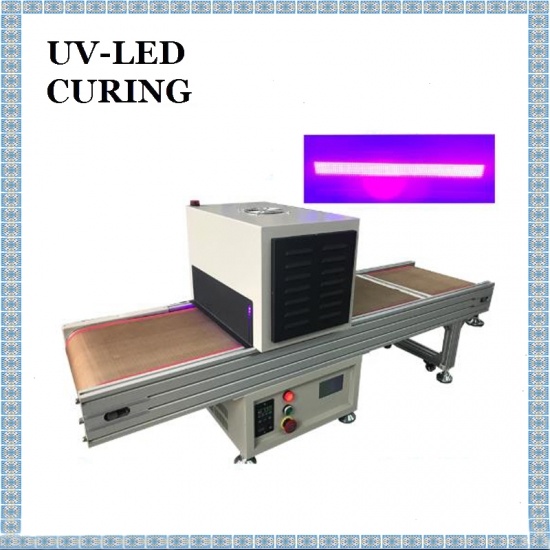

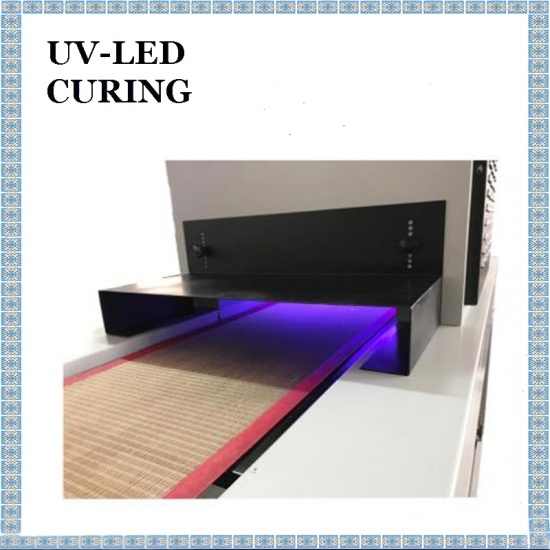

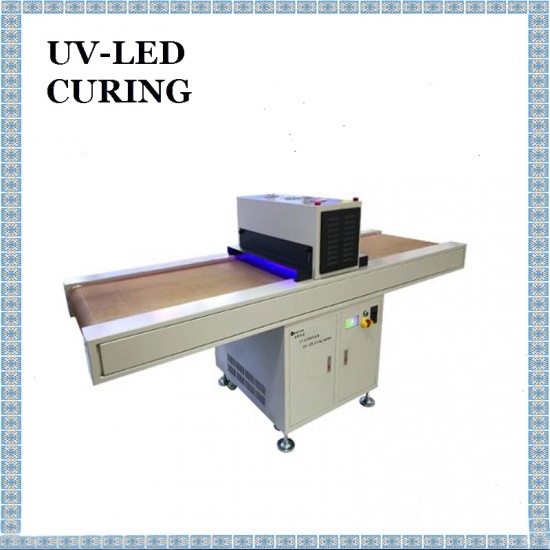

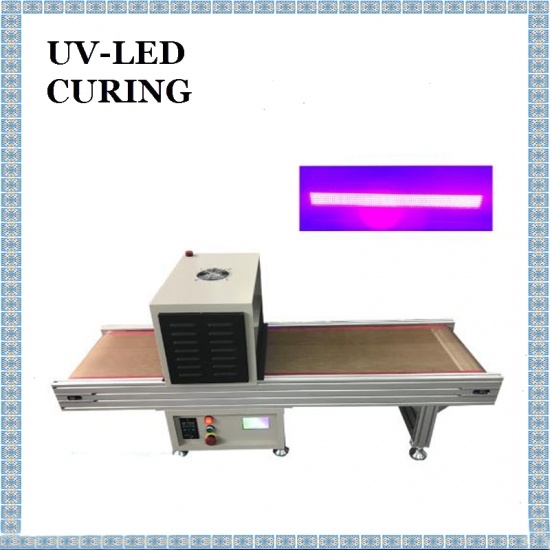

 China Manufacturer of UV Coating Machine UV Curing Machine UV Dryer for Printing Machine

China Manufacturer of UV Curing Machine UV Dryer for Printing Machine can apply for PCB/PCBA Conformal Coating curing, Medical instrument uv glue curing, UV Printing  etc.

  • model no. :

    UV Coating Machine for Printing
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
  • original region :

    CHINA
Product Details

China Manufacturer of UV Curing Machine UV Dryer for Printing Machine can apply for PCB/PCBA Conformal Coating curing, SMT component protection and reinforcement, Medical instrument uv glue curing, UV Printing  etc.


Quick Details

Condition: New

Type: UV Curing machine

Automatic Grade: Semi-Automatic

Place of Origin: Guangdong, China (Mainland)

Brand Name: UV-LED CURING

Model Number: UV-LED CURING-SL528*350*30-395nm

Voltage: 220V/50Hz

Power(W): 1.5kw

Dimension(L*W*H): 1500x820x1100mm

Weight: 50kg

Certification: CE RoHS

Warranty: One Year

After-sales Service Provided: No overseas service provided

Application: Screen Printing

Item: Screen Printer Machine

Speed: Adjustable

Application area: UV PRINTER


Technical Data of the UV LED light head :

Wavelength(±5nm)  :  365nm /385nm/395nm/405nm

Curing area : 350x30mm / other sizes available

Electronic power : 1500w

Input voltage : 220VAC 50Hz / 60HZ

Cooling method : Water or Air cooling

Life  : >20000 H

Conveyor speed : 100-400mm adjustable

Irradiation distance : 10-100mm adjustable

Optic power : 13000mw/cm2  (10mm irradiation distance)

Recommend irradiation distance : 10-100mm


Control system features:

1: Panel display, touch operation, real-time monitoring of the head of the working state

2: Intensity adjustable from 0-100%

3: Temperature monitoring

4: Infrared sensor control, work mode selection

5: Whole machine size: L1500*W820*1100mm


UV Coating Machine for Printing

Product feature:

1. Instant ON/ OFF, NO preating required.

2. Adjustable curing distance, UV output intensity and conveyor speed

3. Energy saving and environmental protection

4. infrared sensor to stop, protect your products

5. No infrared radiation, cold light source, suitable for all types of heat-sensitive material curing.

6. Conveyor belt with adjustable width.


Advantages :

Replace the mercury lamp!

1.Extra-long life: 25000h~30000h

2.Energy saving: save 80%  electrical energy than  Mercury lamp

3.UV output adjustment: From 1% to 100%

4.Multiple control modes :  Constant current, pedal control, intelligent optical and manual modes

5: Photoelectric induction, instant on/off, no preheating required.

6: Low energy consumption, just 20% of the ordinary uv lamp

7: No mercury, No Ozone, eco-friendly

8: Cold light source, low temperature

9: Stable output, high uniformity.


why choose UV-LED CURING

1:  UV-LED CURING have real factory, professional engineers with over 7 years experience and skilled workers

2:  We have over 12 years experience in LED UV curing industry

3:  We has established good reputation and high quality position and it supplies high quality UV LED lights.

4:  We have professional R&D team and one year free warranty

5:  7*24 hours Technical support

6:  Abundant Experience of Export
