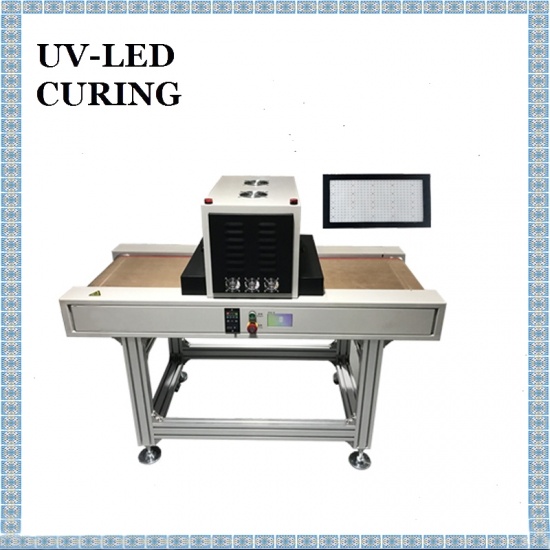

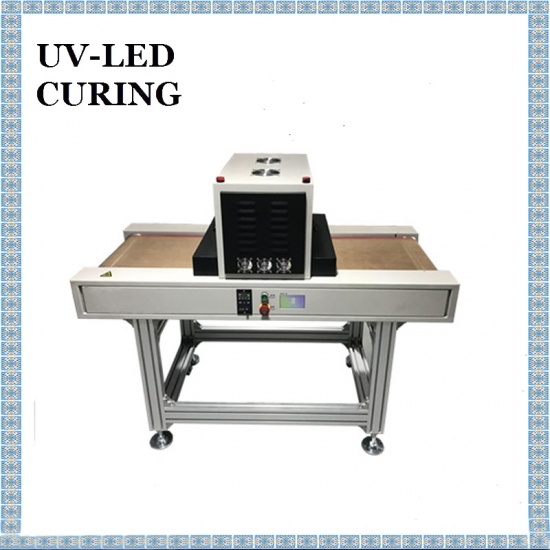

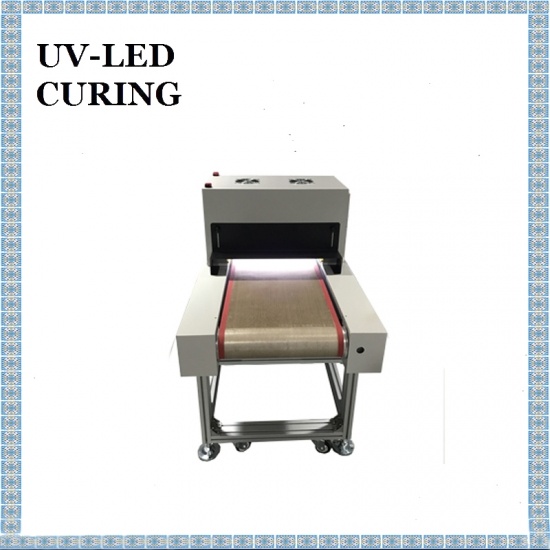

400X200mm Portable High Efficiency UV LED Curing Machine for Coating

400X200mm Portable High Efficiency UV LED Curing Machine for Coating

400X200mm UV LED curing machine UVLED head of the machine is integrated with imported high-intensity ultraviolet LED. The UV spectrum wavelength is 365nm.

model no. :
400X200mm UV Curing Machine
Brand:
DSXUV
port of dispatch :
SHENZHEN
Payment :
T/T 100% Before Shipment
original region :
CHINA

contact now

Product Details

The UVLED head of the machine is integrated with imported high-intensity ultraviolet LED. The UV spectrum wavelength is 365nm. Portable High Efficiency UV LED Curing Machine for Coating supports external signal input and triggering. It can be used in semi-automatic or fully automatic production lines. The conveyor belt is made of Teflon.

Specification Sheet :

wavelength : 365nm

Model : DSX-S480-400X200-365

Electric power : 1440W

Optical power density : 1700MW/CM2

Irradiation area : 400X200mm

Heat dissipation method : Air cooled

Overall size : L1500mm*W670mm*H1149mm

Product Overview ：

LED UV curing machine replaces traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption, high efficiency, no infrared radiation, cold light source, suitable for curing of various heat sensitive materials UV glue, infrared transmission Intelligent control, start-stop control on demand.

High Efficiency UV LED Curing Machine
