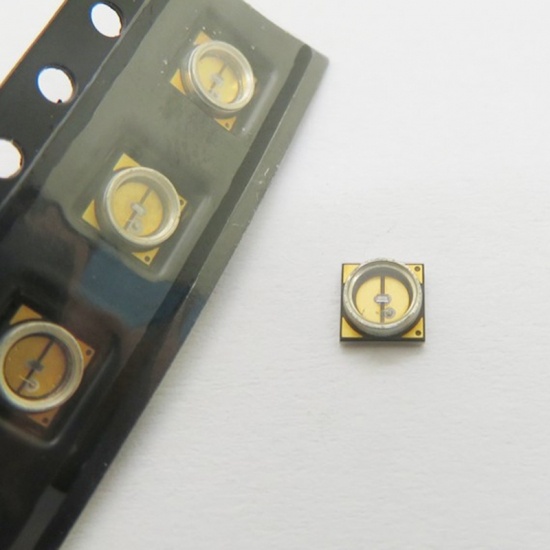

High Performance Deep 254nm UVC LED Light Beads for Killing Bacteria

254nm Deep Ultraviolet LED Diode Lamp SMD Beads is used for installing in sterilizing equipment board. Common disinfection equipment includes : bottle disinfection machine, toothbrush disinfection box, shoes sterilization cabinet, towel disinfection chamber, fish tank Aseptic, etc. You can contact us if you need to customize.

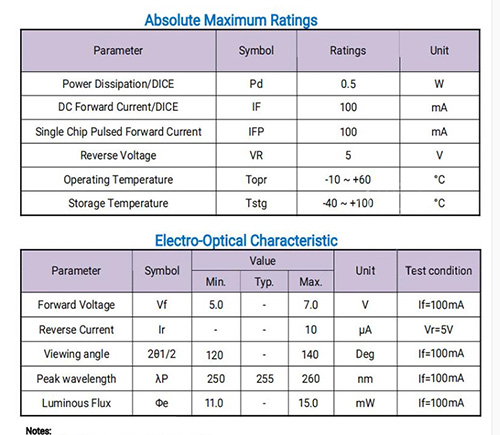

Parameters :

Model : DSXUV-254nm-10mW

Electric Power : 0.-0.6W

Voltage : 5.5-6.5V

Current : 50-100mA

Angle of Light : 12-140°

Wavelength : 250-260nm

Peak Wave : 254nm

Optical Power : 10-15mW/cm2

Cautions :

1.Before purchase, confirm the model, size and quantity of the products you need.

2.All UVC LED light beads cannot be directly connected to the battery. (the correct method is : the UVC LED drives first, then connects to the power)

3.The aluminum / copper substrate welded by the lamp bead only plays the role of heat conduction and does not have the heat dissipation function completely. Please add a radiator. At the same time, the bottom of the lamp bead should be coated with thermally conductive silica gel / silicone grease, closely attached to the heat dissipation equipment.

4.All UV LED Light Beads sold by DSXUV will be shipped after the test is OK, please carry out lighting test before welding after receiving the goods (the time is not more than 3 seconds), the light bead is normal. If it is not bright, please contact the seller immediately. Once the lamp beads are tinned or burned out, the buyer is responsible for the consequences.
