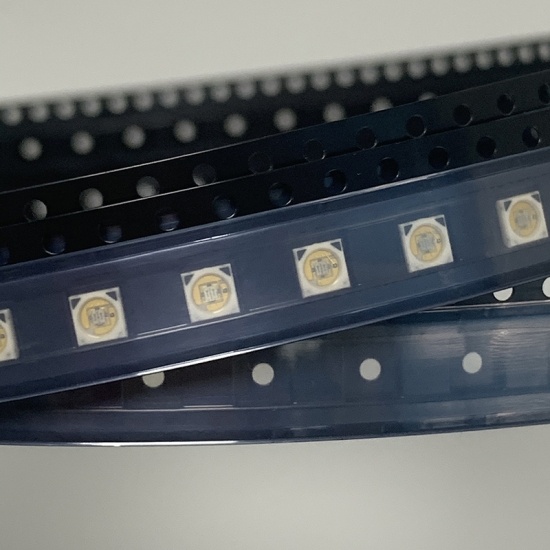

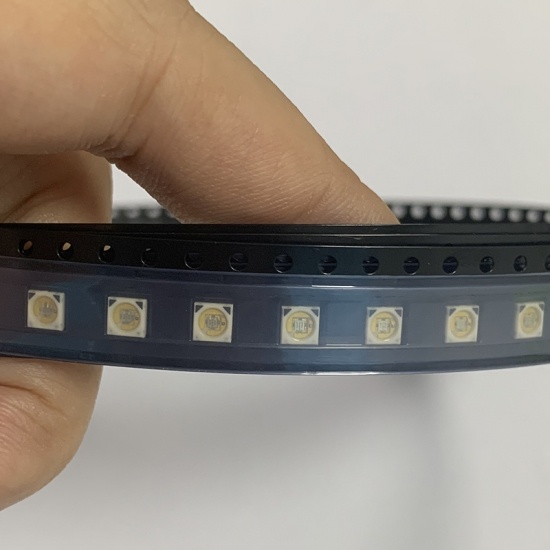

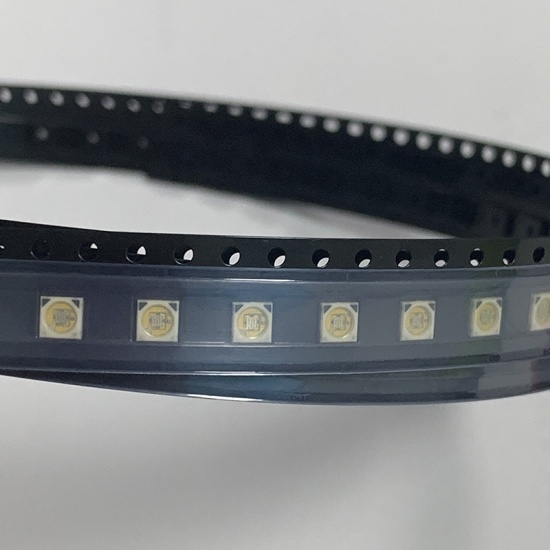

NICHIA NCSU275 365nm Ultraviolet Light Emitting Diode can be made into UV Curing Systems, which has extensive drying function.
model no. :
NCSU275 UV LampBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
ChinaNICHIA 365nm Ultraviolet Light Emitting Diode NCSU275 can made into UV LED Module, UV Spot Light Source, Linear UV Curing Machine, etc, to solidify UV ink, UV glue, UV coating. The service life of UV LED is relatively long, about 20 thousand hours, and no mercury, environmental protection, and fast curing, save energy. Choosing UV LED is the best option.
Parameters of NICHIA NCSU275 LED UV Light :
Current : 700mA
Voltage : 3.65V
Optical Power : 2.87W
Illuminance : 148-255mW/cm2
Light Angle : 120 degree
Material of Lens : silicon
Please contact service if you need complete specification.
NCSU275 can be matched with these PCB :
High Power 365nm UV LED Light Beads is used for UV curing, fluorescent spectroscopy, sensors and monitors, phototherapy, printing, coating, etc..
High Power 12W NICHIA UV Light Beads curing UV ink, UV glue, etc.
High power 70mW UVC LED UV Disinfection Lamp for water treatment air purification, for laboratory test.
NWSU333B LED UV Lamp Source is widely used in UV LED Curing Machine, because of its stable output, high uniformity, and save 80% electrical energy than mercury lamp and low energy consumption.
Deep Ultraviolet UVA+UVC lamp belt application field : pet environment, medical equipment, house disinfection, pharmaceutical manufacturing, laboratory
365nm 6868 4in1 LED UV Ink Curing Light Chips is used in UV curing, UV ink curing, photo-catalyst, sensor light, etc.
