EIT UV Power Puck II Ultraviolet Irradiation Meter UV Meter 4 UV Bands Measuring Intensity Energy Temperature EIT UV Power Puck II Ultraviolet Irradiation Meter UV Meter 4 UV Bands Measuring Intensity Energy Temperature EIT UV Power Puck II Ultraviolet Irradiation Meter UV Meter 4 UV Bands Measuring Intensity Energy Temperature

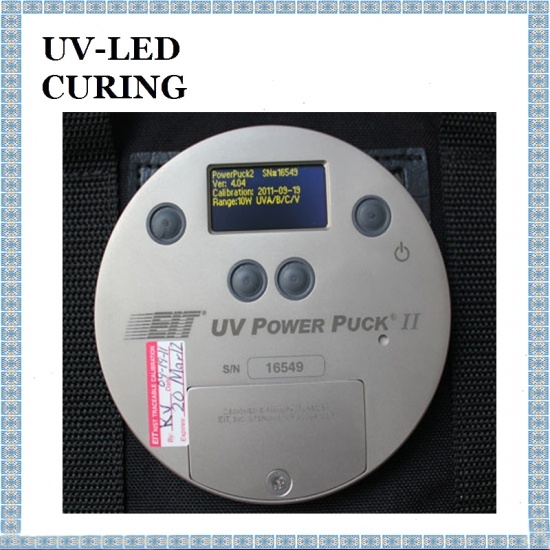

EIT UV Power Puck II Ultraviolet Irradiation Meter UV Meter 4 UV Bands Measuring Intensity Energy Temperature

Two-in-One Ultraviolet Irradiation Meter is combined with UV integrator and UV meter.

  • model no. :

    Ultraviolet Irradiation Meter
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
Product Details

The radiometers that first set the standard for the UV industry are now setting a new standard with advanced features and an easy to read display, multiple user selectable modes, and PC communications for data logging and trending capabilities. UVICURE Plus II and UV Power Puck II are widely used throughout the global UV industry. With user selectable sample rates, these reliable instruments can be used for fast conveyor lines or slower lines.


Standard Features and Benefits Include:

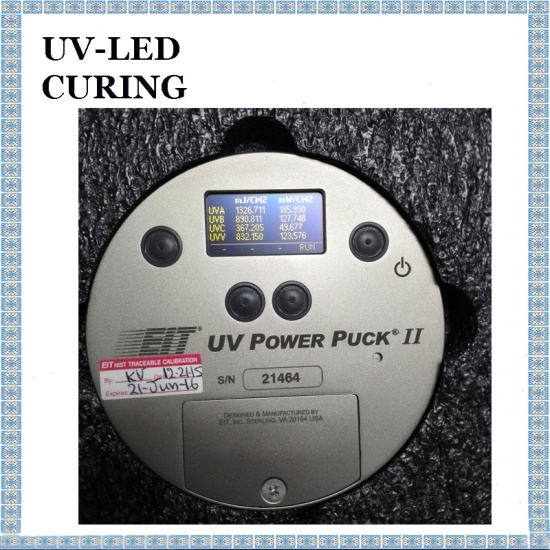

Easy to Use. Single Button for On/Off and Run UV Data Displayed on One Screen for Up to 4 Bands. Data is simultaneously collected for up to 4 bands on the UV Power Puck II, then displayed on a single screen in mW/cm 2 and mJ/cm 2 for quick and easy viewing by the operator. No need to toggle through all eight readings, one screen at a time. Soft buttons are used for function selections, and are indicated on the bottom of the display for easy operator selection and use.

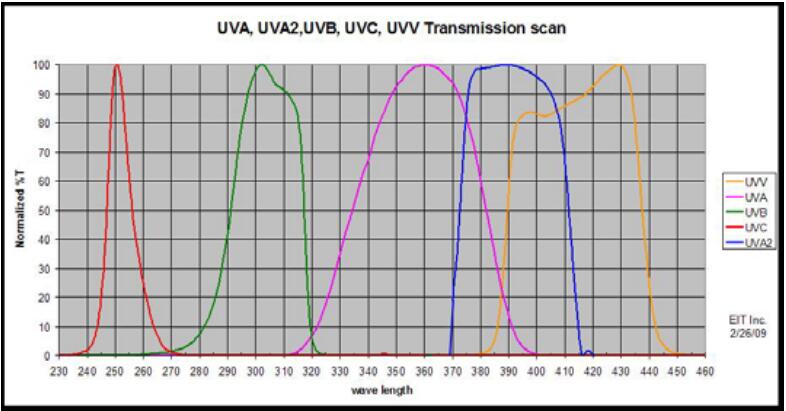

Standard EIT Bandwidths (UVA, UVB, UVC, UVV) and the introduction of EIT UVA2

EIT’s standard bandwidths - (UVA (320-390nm), UVB (280-320nm), UVC (250-260nm), UVV (395- 445nm) as well as our new UVA2 (380-410nm) bandwidth are available in the Uvicure Plus II and UV Power Puck II. UVA2 can be used to measure LEDs in the +/- 390nm range as well as additive (mercury-iron, mercury gallium) bulbs. UVA2 is available in a single channel Uvicure Plus II or UV Power Puck II with UVA, UVA2, UVB, & UVV.


Two-in-One Ultraviolet Irradiation Meter


Operating Ranges

The Uvicure Plus II or UV Power Puck II instruments are now available in three operating or dynamic ranges. The standard (10 Watt) unit works well for high power curing applications. The new Mid Range unit (1 Watt) works well with lower power arc lamps and applications with lamps that are non-focused or a little further away from the cure surface. The Low Power unit (100 mW) works well in exposure systems and applications with low power lamps.


Setup Function

Provides user selectable instrument default modes for data analysis and comparison, screen, and operational settings.


Graph Mode

A graph illustrating the collected UV irradiance and energy is displayed for each of the UV bands. Data is expressed in mW/cm 2 vs.

time.


User Selectable Sample Rate

Smooth On Data: Compatible with previous sampling rate on Power Puck versions

Smooth Off Data: Compatible with UV PowerMAP sampling rate at over 2000 samples per second.


Reference Mode

Used for comparison between readings. Can be useful for system setup and troubleshooting. The user can store the selected UV

reading in the radiometer as a base line or reference reading, then compare that reading to another. The radiometer will display both readings and indicate the percentage of change between readings. Data is displayed in mJ/cm 2 and mW/cm 2 , and percentage.


Unit of Measure

The unit of measure is user selectable to provide ease of reading for operators. Display the data as you want to see it. Selections are: mJ/cm 2 , mW/cm 2 , J/cm 2 , W/cm 2 , µJ/cm 2 , µW/cm 2


Colorful, Easy to Read Display

Select low, medium, or high intensity for the graphical display brightness.


Communications Port

USB Port

Download collected data to a computer for statistical analysis and data logging. Software provided by EIT.


Specifications  (Subject to change without notice)

Display

Easy to Read, Yellow Text on Black Background

Suggested Operating

Ranges

Standard High Range: UVA, UVB, UVV - 100mW/cm² to 10W/cm² / UVC - 10mW/cm² to 1W/cm²

Mid-Range: UVA, UVB, UVV -10mW/cm 2 to 1W/cm 2  / UVC: 1mW/cm 2 to 100mW /cm 2

Low Power: UVA, UVB, UVV - 1mW/cm² to 100mW/cm² / UVC - 1mW/cm 2 to 100mW/cm 2

Units will turn onand display data at irradiance values much lower than the suggested Operating

Ranges. The suggested Operating Ranges are where the instrument performs best.

Accuracy

+/- 10%; +/- 5% typical

Spectral Ranges

(UV Power Puck® II)

4-channel continuous monitoring .Standard version: 320-390nm (UVA), 280-320nm (UVB), 250-

260nm (UVC), 395-445nm (UVV) / UVA2 Version: 380-410nm (UVA2 replaces the UVC band).

Spectral Ranges

(UVICURE® Plus II)

1-channel continuous monitoring. 320-390nm (UVA), 380-410nm (UVA2 for LED monitoring and

additive bulb monitoring), 280-320nm (UVB), 250-260nm (UVC), 395-445nm (UVV)

Spatial Response

Approximately cosine

Operating

Temperature

0-75°C Internal temperature; tolerates high external temperatures for short periods (audible alarm

indicates when temperature has exceeded tolerance)

Time-Out Period

2 minutes DISPLAY mode (no key activity). A no time-out mode can be activated by EIT-IM.

Battery

Two user-replaceable AAA Alkaline Cells

Battery Life

Approx. 20 hours with display on

Dimensions

4.60 x 0.50 inches; 117 mm x 12.7 mm (D x H)

Weight

10.1 ounces (289 grams)

Instrument Materials

Aluminum, stainless steel

Carrying Case

Material

Cut polyurethane interior, scuff resistant nylon exterior cover

Carrying Case Weight

9 ounces (260 grams)

Carrying Case

Dimensions

10.75 x 3.5 x 7.75 inches; 274 x 89 x 197 mm (W x H x D).
