24mW UVC Chip Hybrid Encapsulation UV Sterilization Light Module for Bag Box Cabinet Colset Disinfection 275nm+395nm 24mW

Dual band UVC LED ultraviolet sterilization lamp, UVA+UVC band, 280nm+395nm dual color lamp, silicone package for disinfection cabinet, disinfection package and so on.

  • model no. :

    UV Sterilization Lamp COB Module

  • Brand:

    DSXUV

  • port of dispatch :

    Shenzhen

  • Payment :

    T/T 100% Before Shipment

  • original region :

    China
contact now
Product Details

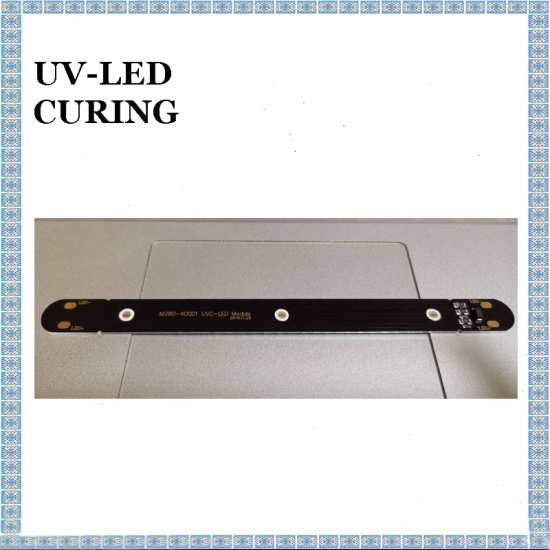

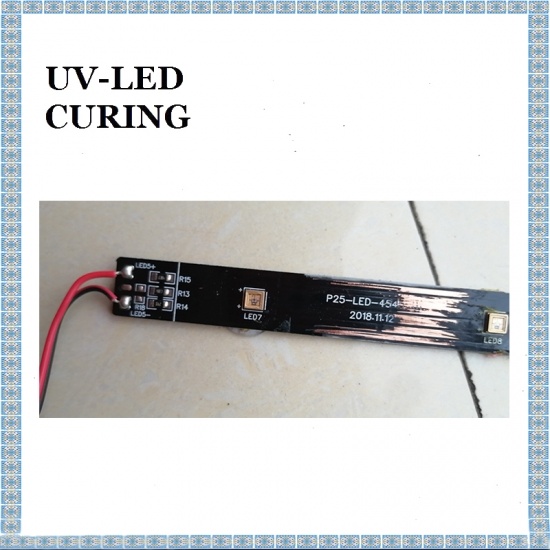

The use if independent research and development of deep ultraviolet UVC-LED, reliable performance, high light power, low power consumption. The thickness of UVC LED Lamp is thin, the product volume is compact. Nanosecond instant start of product without delay, stable working state can be achieved after starting.


Dual band UVC LED ultraviolet sterilization lamp, UVA+UVC band, 280nm+395nm dual color lamp, silicone package. Power supply is 18-24mW@260mA, voltage is 9V.


Important safety tips of Bactericidal UVC UV LED Diode kills bacteria for Household Use :

1.The product will produce deep ultraviolet light after electrification. This type of UV can cause damage to human skin and eyes. Direct exposure to UV without protective measures should be avoided.

2.It is strictly prohibited to look directly at the deep ultraviolet radiation emitted by the product with naked eyes at any time.

Antiseptic UVC UV LED Lights Sterilization for Disinfection Cabinet

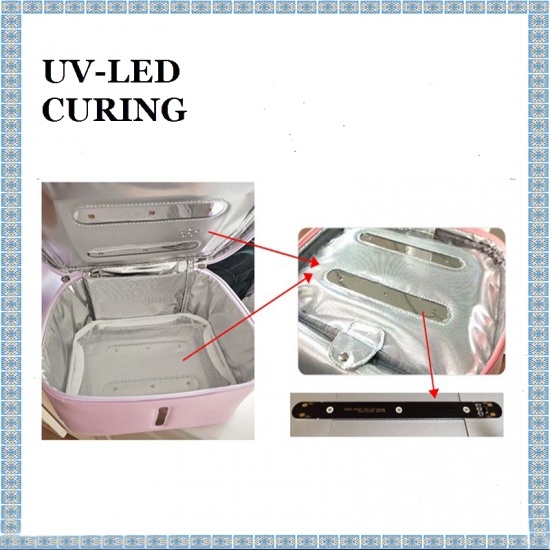

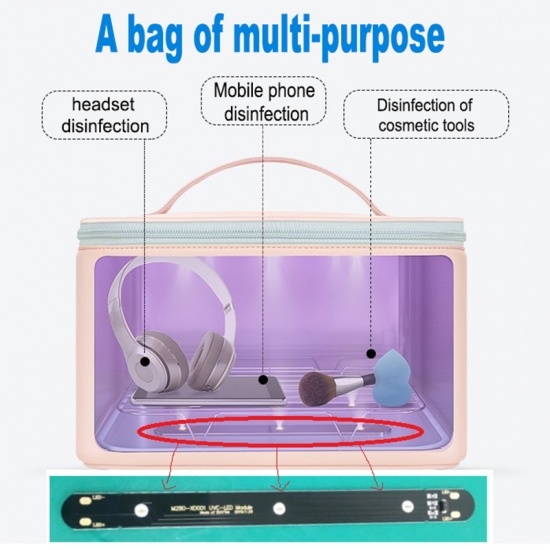

This module can be used for ultraviolet sterilization package, ultraviolet sterilization box, ultraviolet sterilization Cabinet, etc..



Parameters of Sterilized UVC Ultraviolet Disinfection Lights for Public Use :

(unless otherwise specified, the test ambient temperature T=25℃)

Parameters

Min. Value

Typical Value/rating

Max. Value

Unit

Input Voltage

/

9

/

V

Input Current

220

260

300

mA

Input Power

1.98

2.34

2.7

W

Wavelength

UVC

270

/

280

nm

UVA

390

395

400

nm

Luminous Power

180

21

24

mW

Ambient Temperature

-30

/

60

℃

LED Encapsulation

/

COB

/

LED

Quantity

3

/

PCS

Size

/

As shown in drawing

/

mm


Photoelectric Parameter of Bacteriocidal UVC UV LED Disinfection Lamp for Healthcare :

Parameters

Symbol

Unit

Specification

Peak Wavelength

λp

nm

270~280

Radiant Power

Po

mW

6~8

Full Width Half Maximum

△λ

nm

10~14

Drive Current

If

mA

80

Operating Voltage

Vf

V

5~8

Thermal Resistant

Rθj-b

℃/W

~18


Size and Drawing : (unit : mm)

Antiseptic UVC UV Chips Kills Bacteria Suppliers


Bactericidal effect test of Antiseptic UVC UV LED Lights Sterilization for Hotel Use :

The new coronavirus 2019-nCoV UV LED left dose : 1085mJ/cm2

High performance UVC LED Lamp Disinfection Test

Related Tags : Bacteriocidal UVC UV LED Disinfection Lamp for Healthcare Sterilized UVC Ultraviolet Disinfection Lights for Public Use Bactericidal UVC UV LED Diode kills bacteria for Household Use Antiseptic UVC UV LED Lights Sterilization for Hotel Use
