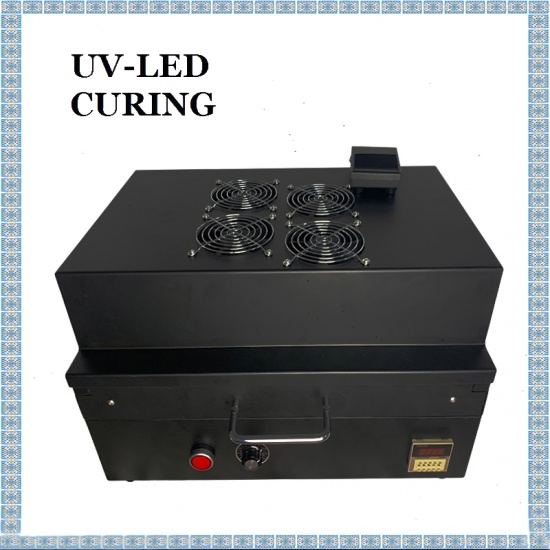

Professional Manufacturing UV Wafer Tape Curing Machine is low calorie, good bonding performance, fast speed, environmental protection equipment.
model no. :
Ultraviolet Exposure BoxBrand:
UV-LED CURINGport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
China
High Power UV Irradiation Machine Curing Epoxy Resin is low in calorie, good bonding performance, fast speed, environmental protection equipment.
Parameter of Non-Standard Customization UV Tape Curing Machine:
Brand |
DSX-200x200 |
Input Voltage |
AC220V-230V 50Hz |
Name |

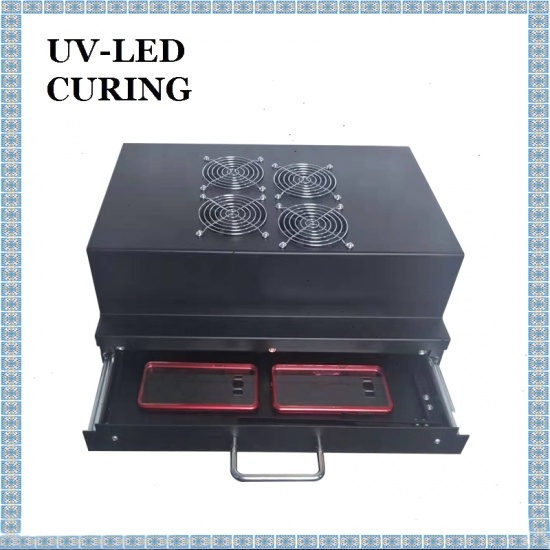

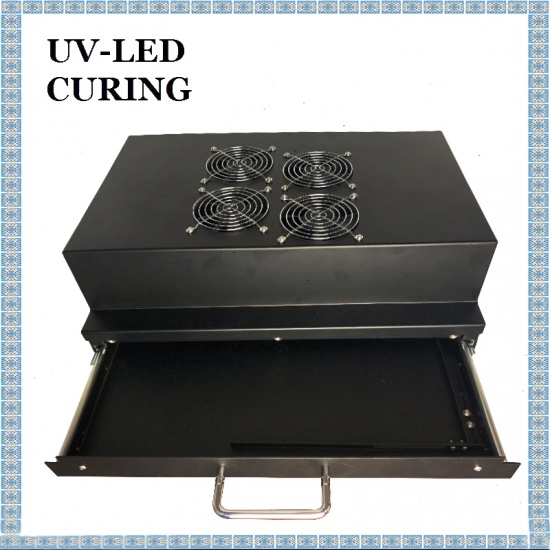

Drawer UV LED Curing Box |
Intensity |
>700mw/cm2 |
Material of Light Head |
Superconducting hot aluminum |
Outside Dimension |
L 460mm * W 380.9mm * H 276.8mm |
Weight |
35KG |
Cooling Method |
Air Cooling |
Irradiance Area |
200*200mm |
Control Method |
I/O |
Irradiance Distance |
15mm (best effect) |
Inside Dimension |
410*320*15mm |
Power of Light |
400W |
Intensity of Adjusting |
Knob to adjust (0-100%) |
Wavelength |
395nm (can be customized 365nm-420nm) |
Quality Guarantee |
One year |
Characteristics of High Intensity UV LED Exposure Machine Curing UV Wafer :
1.Small body, suitable for 6/8/12/15 inch chip irradiation.
2.Time and brightness adjustable, touch screen operation, simple and convenient.
3.Top down irradiation for easy placement of wafers.
4.LED clod light source, environmental protection products, with low temperature, uniform exposure, compact structure, low energy consumption, is the ideal type of semiconductor industry, and low temperature no damage to thermal sensitive materials.
5.Its service life is 10 times longer than that of ordinary mercury lamp. Its continuous service life is 15000-30000h.
6.Zero maintenance cost, long-term work without replacement of lighting source parts.
7.Enclosed light source design, no ultraviolet side leakage, no damage to human body.
Application of Collimated UV LED Screen Exposure System Curing UV Glue :
1. Suitable for optical lens, LED, IC, semiconductor, integrated circuit board, mobile hard disk and other semiconductor materials, glass filter and others UV film curing, UV tape curing.
2. UV Tape Curing Machine is a UV film and cutting film adhesive tape viscosity reduction and viscosity relief of automatic curing equipment. For materials such as wafers and glass, UV Tape adhesive is used on 8’’, 12’’, and 15’’ bracket fixture curing device, which has high efficiency curing ability and can quickly reduce the viscosity of UV Tape on materials and parts.
The UV Irradiation Chamber is also equipped with positioning fixture to avoid deviation of the objects.
Size for High Performance UV Mask Exposure Machine for Semiconductor Bonding :
The masking function of Environmentally Safe UV LED Exposure System enables to reach resolutions less than 2µm. It’s a new approach of masking, LED generation, unrivalled collimation performance.
UV Wafer Tape Curing System solves the curing process of wafer, glass and ceramic cutting technology, which is not only limited to semiconductor packaging industry, but also applicable to UV film curing of optical lens, LED, IC, semiconductor, integrated circuit board, mobile hard disk and other semiconductor materials.
