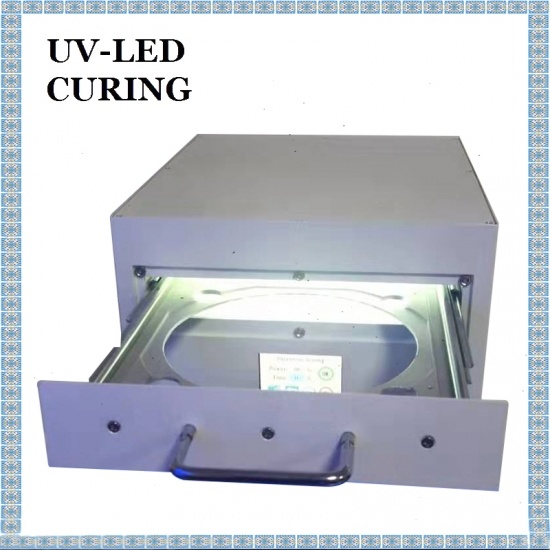

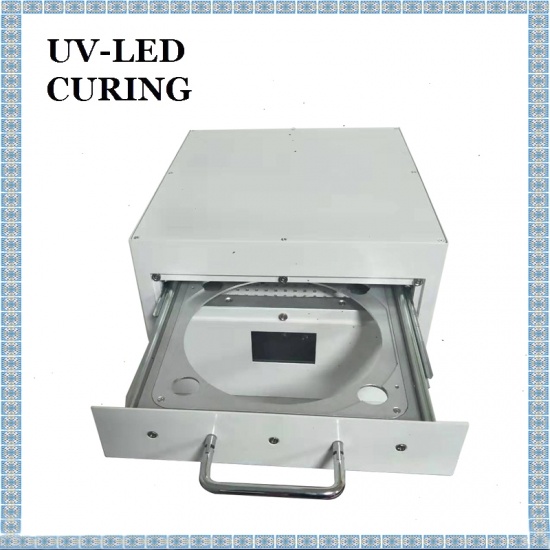

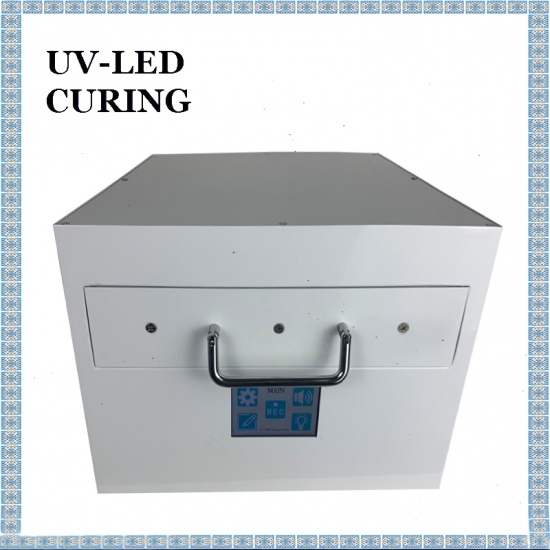

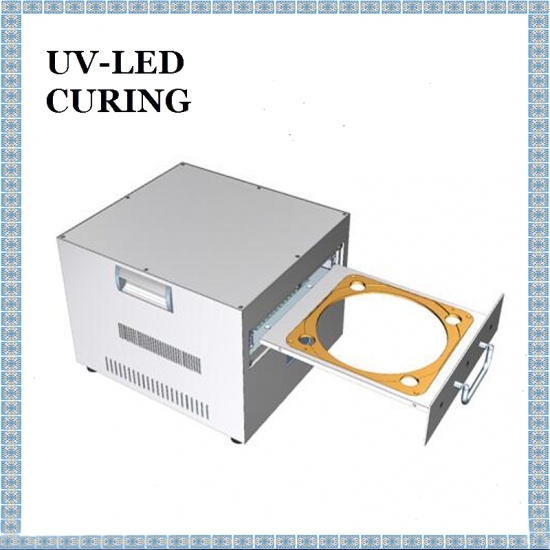

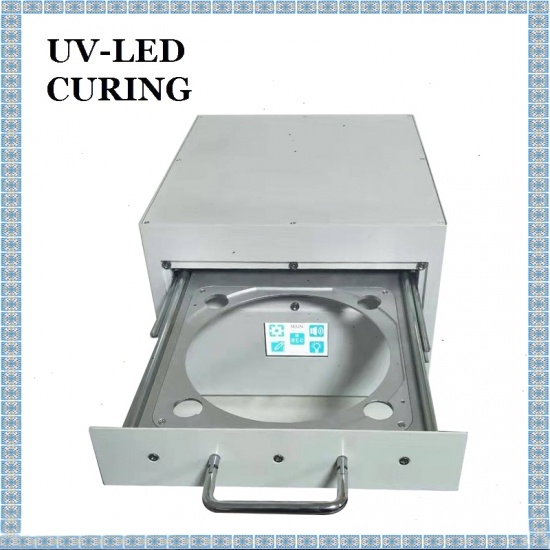

Professional manufacturing DSX-150-200 UV Degumming Machine for semiconductor, wafer, curing UV glue UV ink, etc.
model no. :
UV Light Curing BoxBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :

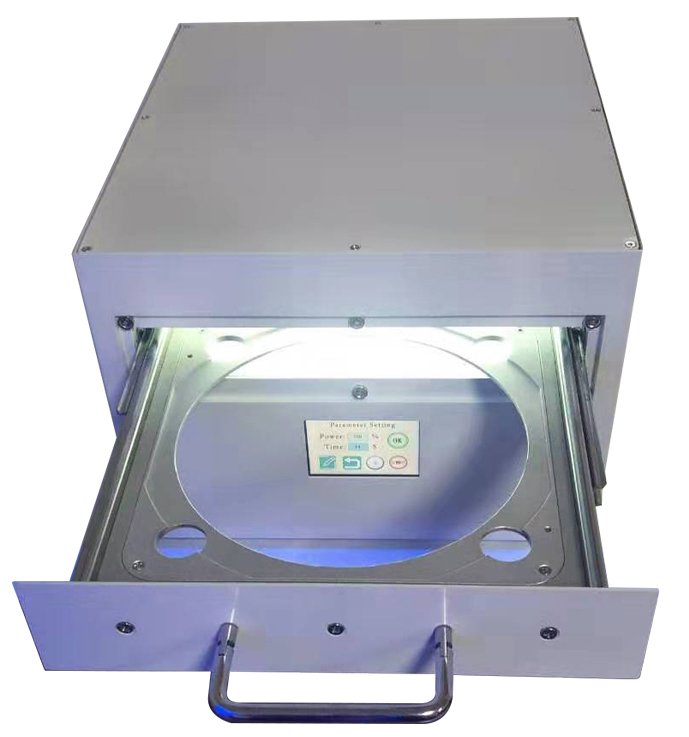

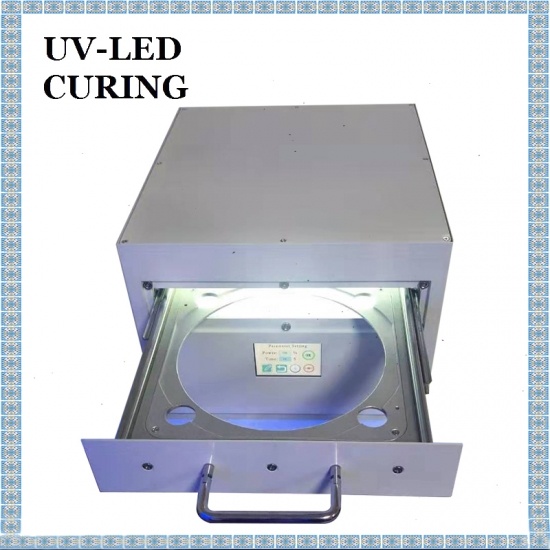

ChinaDSX-150-200 UV Curing Machine is mainly used in degumming UV tape in crystal cutting process. Deshengxing UV curing machine produced by the wavelength of the light source concentrated in UVA 365nm, not containing high heat infrared ray and human injury caused by the short wave ultraviolet, and can ensure sufficient uniformity, for UV tape ungluing performance more stable. Deshengxing DSX-100-200 Automatic LED UV Degumming Machine for Wafer UV Tape adopts the irradiation mode from bottom to top, which is more convenient for the operator to place the crystal element, and can be matched with a variety of sizes, which can fully meet the needs of customers.
Characteristics of Fast Curing LED UV Chamber Curing Semiconductors:
1. single wavelength, ultra-low temperature control
2. uniform irradiation intensity, bottom-up irradiation
3. uitable for curing different size crystal element
Parameters of Customized LED UV Curing Light Box Degumming UV Film :
Model |
DSX-150X200 |
Manufacturer |
Shenzhen Deshengxing Electronics Co., Ltd. |

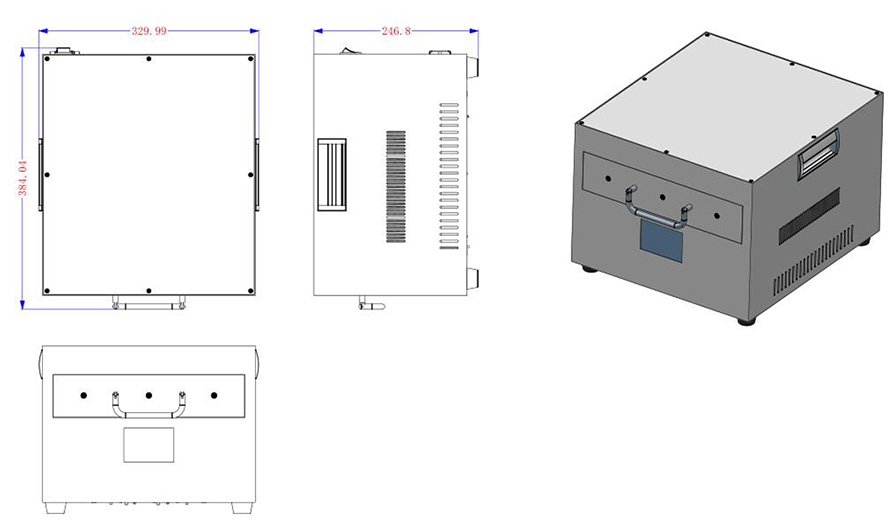

Dimensions |
386*332*250mm |
Lighting Area |
150*200mm |
Cooling |
Fan Cooling |
Power Input |
100-240V AC 50-60HZ |
Power |
500W |
Wavelength |
365nm |

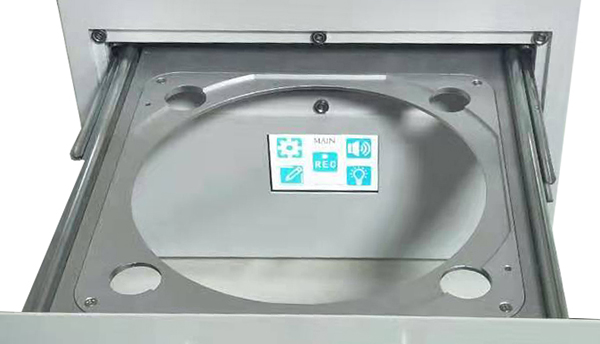

Drawer Capacity |
214*214*15mm |
Intensity |
>500mW/cm2 70mm by EIT |
Function |
Time, intensity, mode adjustable |
LED Cumulative Time |
Record accumulated using time |
6 inches Wafer Expander Rings is used for semiconductor packaging, film, cutting, adhesive process bearing appliances.
Stainless Steel 12'' Iron Ring Wafer Frame is strong hardness, resistance to bending, good stickiness, durability.
The selection material of Stainless Steel Wafer Iron Rings is through SGS certification, high bending strength, high hardness, can bear high load, high wear, corrosive media.
Curing multiple 6 inches UV Wafer at the same time, UV Film Tape Curing Systems reduce the adhesive strength of all UV-sensitive dicing tapes under controlled environment.
Professional Manufacturing UV Wafer Tape Curing Machine is low calorie, good bonding performance, fast speed, environmental protection equipment.
Adhesive strength becomes lower when UV(Ultraviolet light) is irradiated by UV Tape UV Curing Systems.
