The selection material of Stainless Steel Wafer Iron Rings is through SGS certification, high bending strength, high hardness, can bear high load, high wear, corrosive media.
model no. :
Wafer Frame Cutting RingBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :

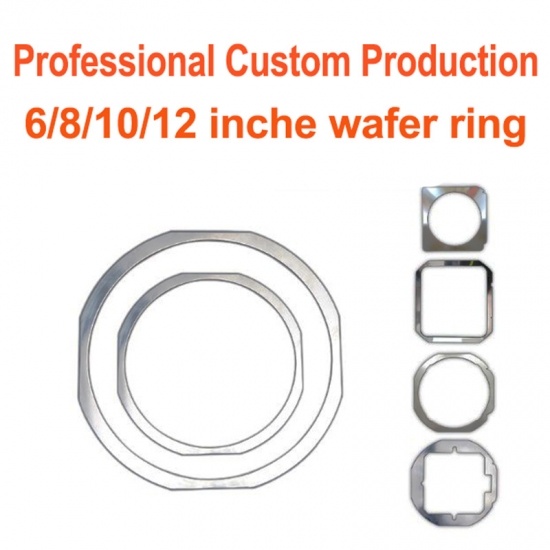

ChinaCustomized 6/8/12 inches Iron Wafer Frame Ring is strong hardness, resistance to bending, good stickiness, durability, widely used in semiconductor packaging, film, cutting, adhesive process bearing appliances.
Advantages Recommended :
ISO9001 quality system certification
SEMI standard customized production

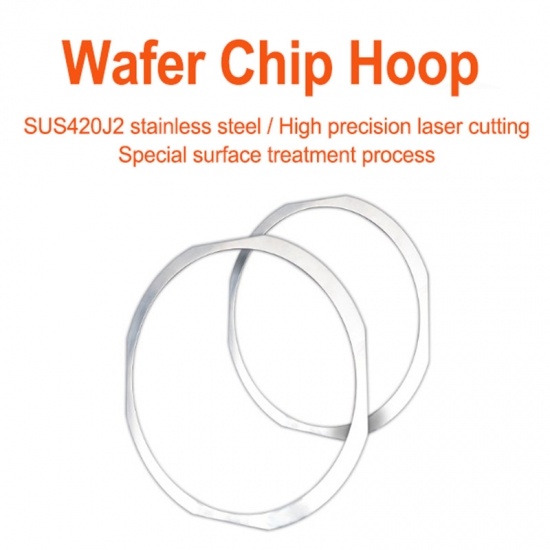

SUS420J2 stainless steel
High precision laser cutting
Special surface treatment process
Rugged and durable, save time and money

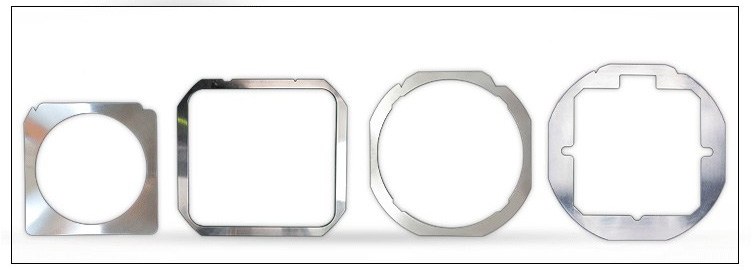

Wafer Frame, also known as Wafer Ring, Wafer Ring, main purpose:
The stainless steel iron ring for semiconductor is used to hold the outer frame for fixing the wafer during wafer cutting and polishing, and is attached with a film to prevent the wafer from slipping off during cutting and grinding. The non-disposable product is cleaned. Can be used repeatedly.

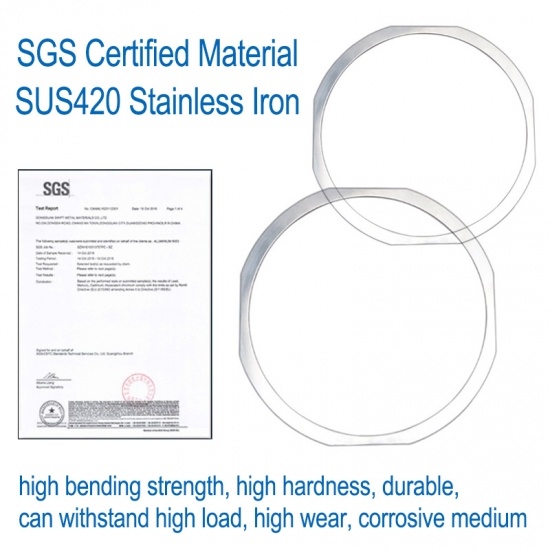

1.SGS Certified Material
SUS420 stainless iron, selection material through SGS certification, high bending strength, high hardness, durable, can withstand high load, high wear, corrosive medium.

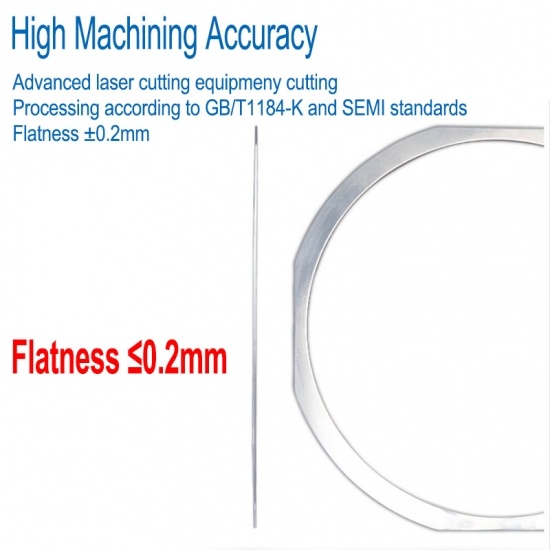

2.High Machining Accuracy
Advanced laser cutting equipment cutting, processing according to GB/T1184-K and SEMI standards, flatness ±0.2mm.
3.Special Surface Treatment
Polishing, matt, nickel plating, special processing technology, with goods viscosity, can keep clean and bright for a long time.
Product Attributes for More Information

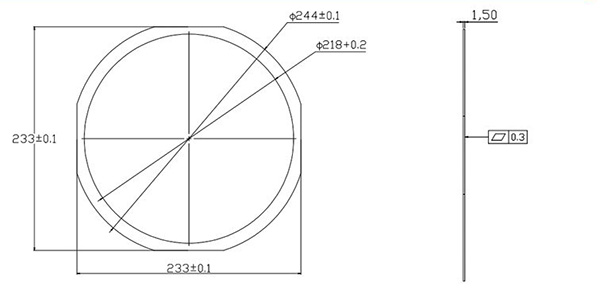

Name : 6 inch wafer ring
Type : DSXUV-MTQT06
Size : 233*233*1.5mm
Material : SUS420J2
Wafer : 6 inches (φ150mm)
Function : fixed wafer patch ring
Other Size :
|
Suitable size |
Dimension mm |
Suitable wafer |
Thickness mm |
No. |
Material |
|
6 inches |
211.5*211.5*1.5 |
150mm |
1.2-1.5mm |
DSXUV-MTQT06 |
SUS420J2 |
|
8 inches |
275.2*275.2*1.2 |
200mm |
DSXUV-MTQT08 |
||
|
10 inches |
324*324*1.5 |
250mm |
DSXUV-MTQT10 |
||
|
380*380*1.5 |
300mm |
DSXUV-MTQT12 |

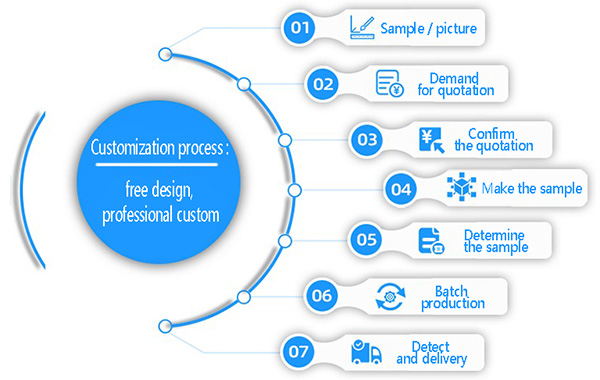

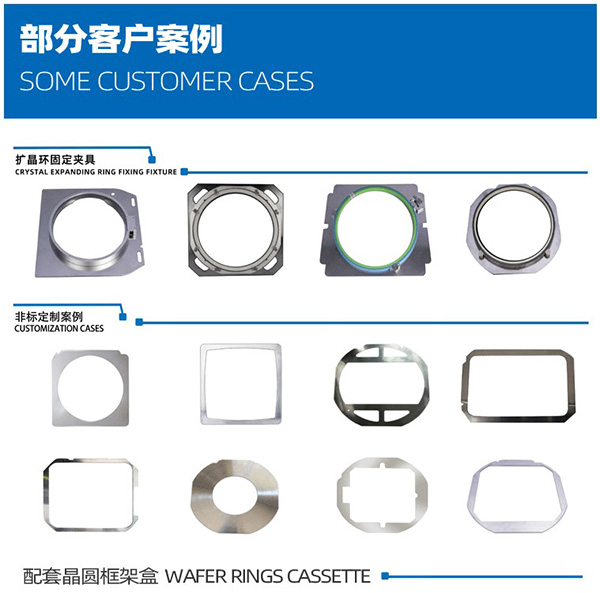

Customized items :
Composition material
Surface treatment technology
Specification / dimension
LOGO engraved
Sample custom
Other requirements
