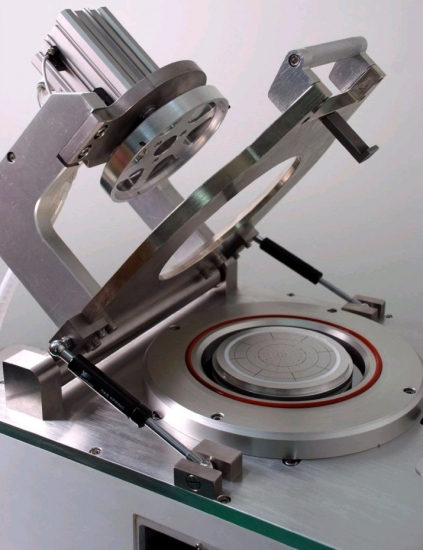

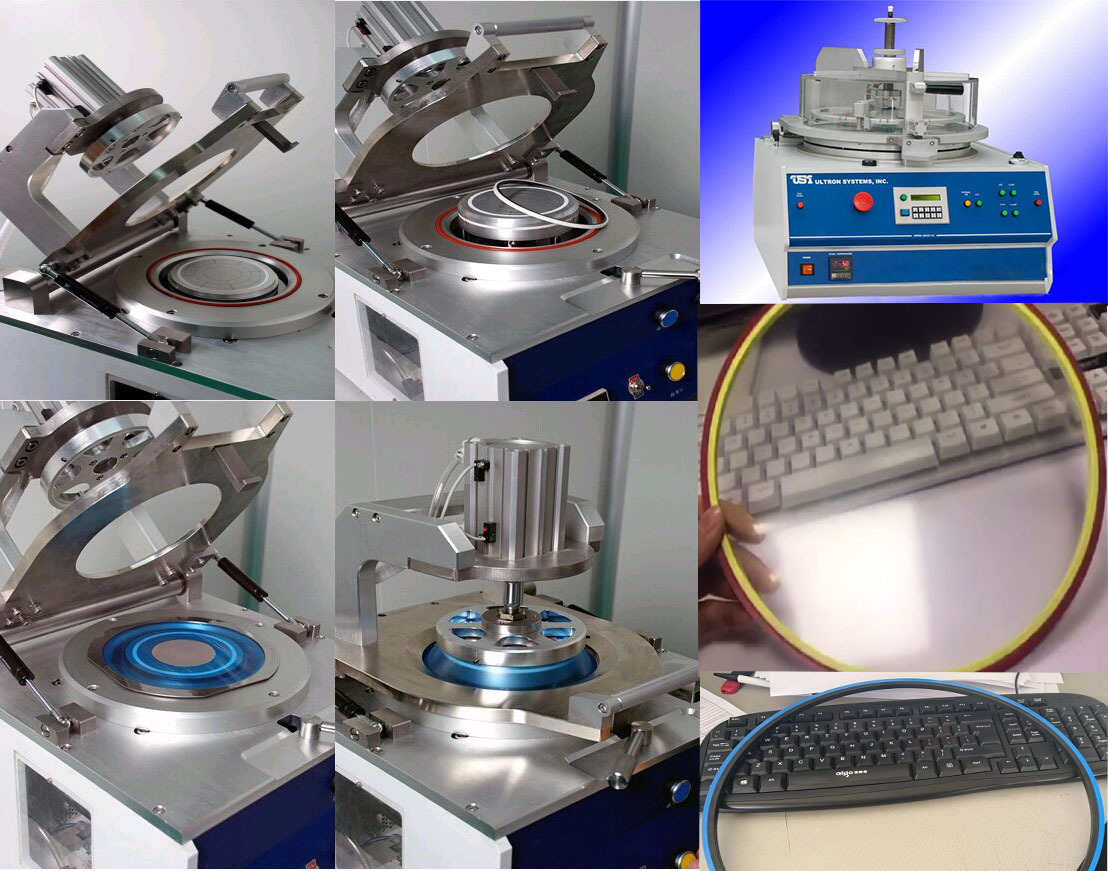

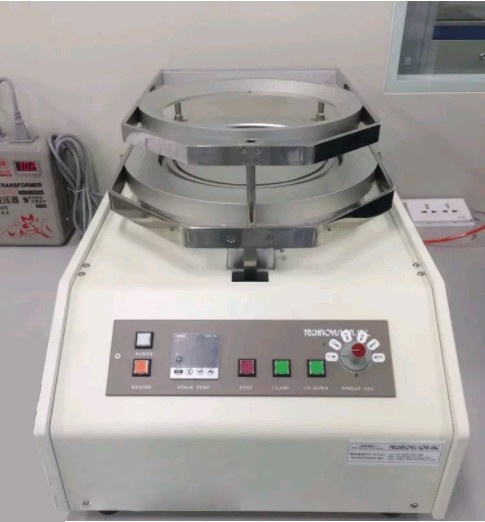

Customized Semi-automatic Wafer Expander Machine Manual Silicon Die Matrix Expander

Customized Semi-automatic Wafer Expander Machine Manual Silicon Die Matrix Expander

The equipment is suitable for industries such as IC, Dior, Transistor, Glass, LED, QFN, PCB, etc., and is suitable for expansion or stretching processes after cutting processes in the production of semiconductor integrated circuit chips.

Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% before shipment
original region :
China
Lead Time :
15-25days

contact now

Product Details

1. Function:

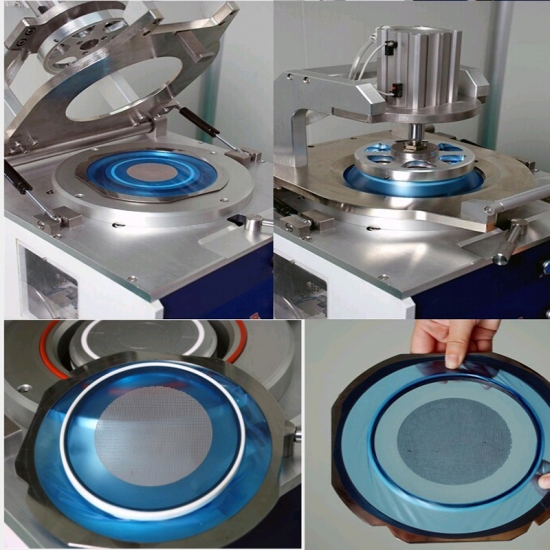

After the cutting process in the production of semiconductor integrated circuit chips, the film attached to the back of the cut/segmented chip is fixed with an expansion ring, and the film is uniformly expanded in the X-Y direction by the rise of the worktable, thereby driving the chip to expand to any interval, greatly facilitating the processing after the chip cutting/segmentation process.

2. Principle:
A wafer expander is a device used to uniformly stretch the film after the cutting process, thereby separating the cut chips and evenly pulling them apart at a certain distance. The expansion method adopts servo motor, and the expansion height and speed can be parameterized in the configured touch screen.

3. Purpose:
After the cutting process of semiconductor integrated circuit chips from wafers, the gaps between chips are very small, which can cause collisions and edge breakage between chips, resulting in waste.
The film expander can simply and quickly expand the cut chips in the X-Y direction, uniformly increasing the spacing between chips to the desired size, separating chips, avoiding chip to chip collision damage, and obtaining intact integrated circuit chips. The workbench design with heating and adjustable temperature can improve the expansion effect and greatly increase the expansion height to meet different customer needs. The height of the expansion film can be adjusted. The speed of the protective film can be adjusted. The workbench temperature is adjustable.

customized wafer expander
