6 8 12 inches Semiautomatic Wafer Expander

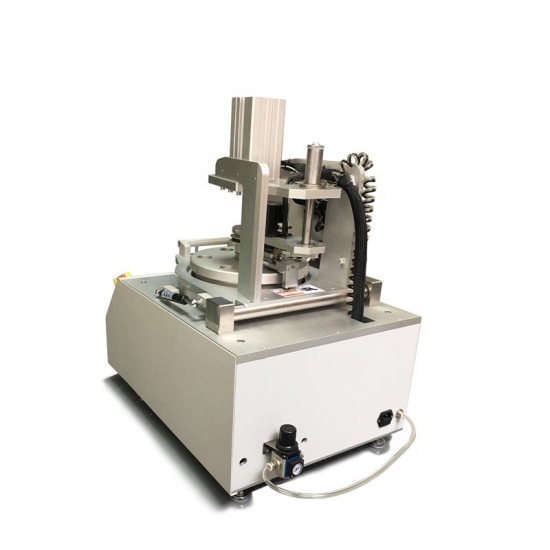

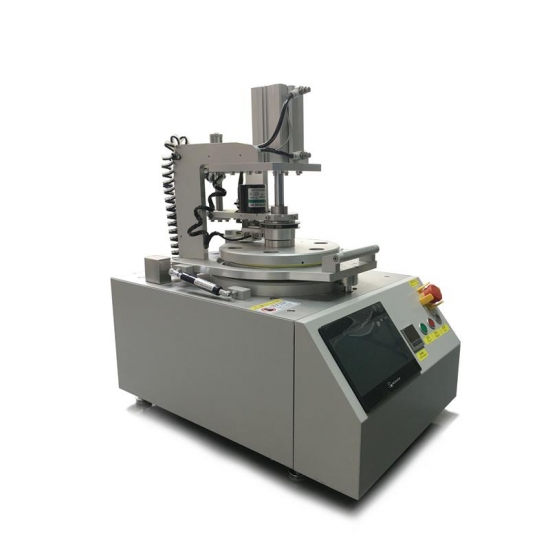

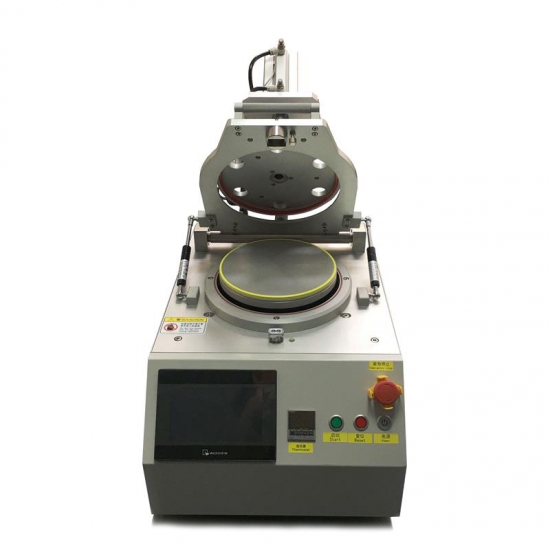

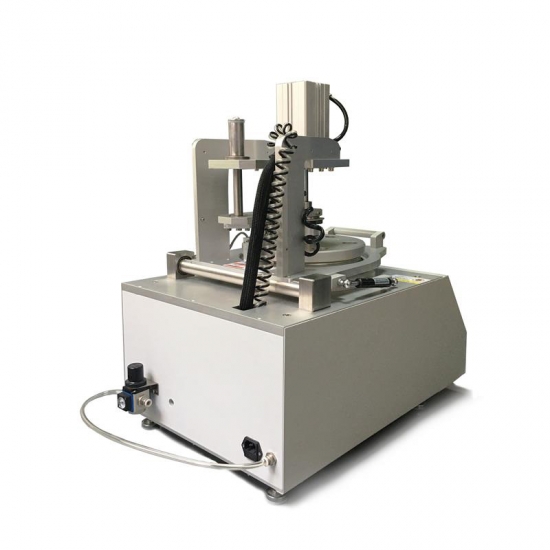

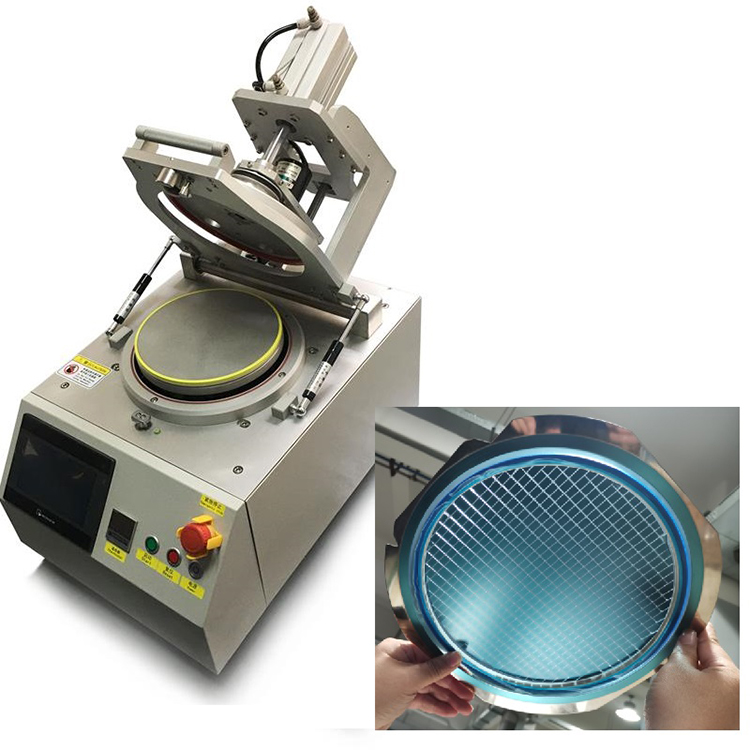

Wafer film expander is an equipment, which is used to evenly stretch the tape after the cutting process (Wafer Backgrinding Mounter), so as to separate the chip after cutting and evenly pull apart a certain distance. Adopt servo motor to expand film, the height and speed of expanding film can be set in the touch screen.

https://youtube.com/shorts/yy_NREbMK5s?feature=share

Parameters:

Application:

Wafer film expanding equipment is suitable for IC, Diode, Transistor, Glass, LED, QFN, PCB and other industries. It is suitable for the expansion or stretching process after cutting process in semiconductor integrated circuit chip manufacturing.

Wafer film expander series products are specially used for wafer, LED and other cutting film expansion process, equipped with imported guide rail, temperature control system, can evenly expand the spacing between grains.

Characteristics:

1.Expansion film and wafer can be fixed automatically. Wafer and film can be clamped automatically.

2.The motor rises and pulls the film at a uniform speed and expands evenly

3.Expansion table with heating system

4.Panel device digital display shows the expansion height, according to the product expansion distance to adjust the data

5.Simple mechanism, maintenance free design

6.Suitable for a variety of UV film, PVC, blue film and other materials

Wafer can be isolated and expanded without the need for large frames, saving thin film
