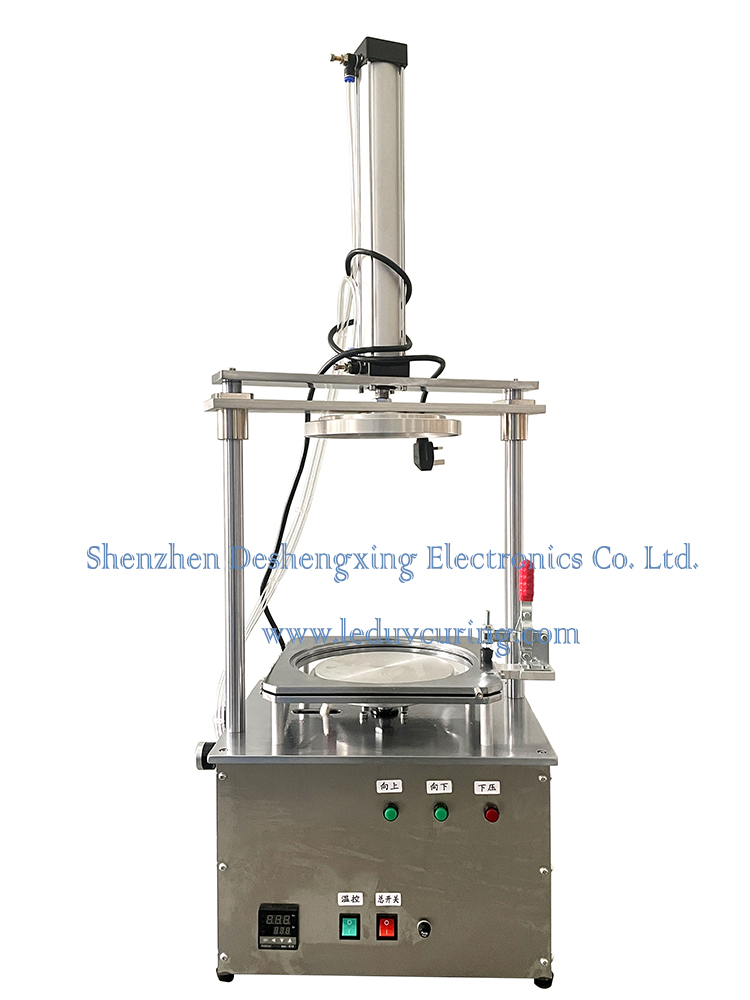

Manual Type Semiconductor Wafer Expander is widely used in expanding UV film on the crystal ring to facilitate the next operation.
model no. :
Wafer ExpanderBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% before shipmentoriginal region :

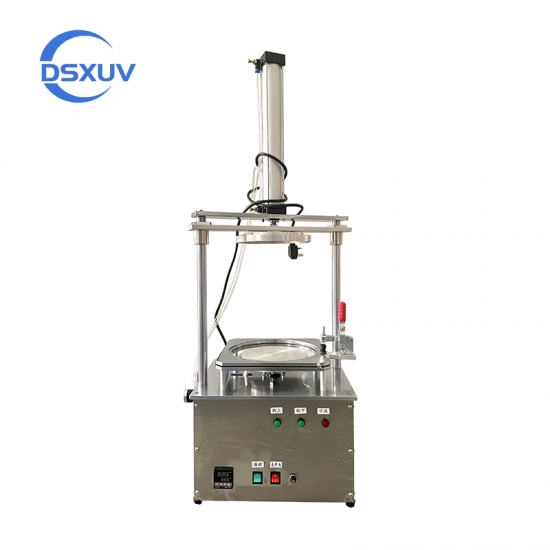

ChinaManual Type Semiconductor Wafer Expanding Machine is widely used in expanding UV film on the die grip ring to facilitate the next operation.
DSXUV-EP series type, wafer chip expander, is widely used in the grain expansion process of light-emitting diodes, small and medium power triodes, backlight sources, LED, integrated circuits and some special semiconductor device manufacturers.
Parameters:
Power Voltage: 220V AC 50Hz
Temperature: indoor temperature ~ 350℃
Upper cylinder: 150/200mm
Lower cylinder: 100mm
Extended area: 120/270cm2
Outside dimension: 270*220*820mm (6inch) [Customizable]
Characteristics:
1.Adopt double cylinder up and down control
2.Constant temperature design, uniform and moderate expansion around the diaphragm
3.Heating, stretching, expansion, solid film completed in one time
4.Heat temperature, expansion time and uniformity of return speed are adjustable
5.Simple operation
6.Machine appearance see the real thing
The machine adopts high quality parts, all processed parts are made of high strength aluminum alloy and stainless steel. Ensure the durability of equipment.

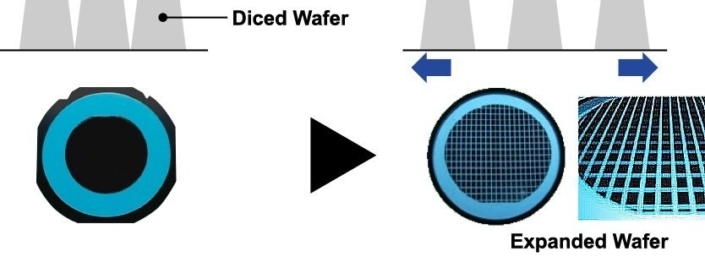

Blue Film Crystal Expander is used for expanding wafers after the singulation/dicing process
