New Products

Small Wafer Nitrogen UV Curing System Tape LED UV Curing Box
Nitrogen UV Curing System Tape Led,Compact and Practical UV Curing system, 5 seconds for The Film to Detach from The Wafer, Adjustable Time, Adjustable illumination, Nitrogen Protection
Wafer UV Curing System LED Tape UV Curing Machine Semiconductor Ceramic Substrate Square
Illumination can be adjusted, Time can be adjusted, Even Curing, 5 seconds Curing,Compatible with multiple sizes
6 inch 8 inch Semi-automatic LED Wafer Expander Machine
Equipped with nitrogen support rod, clamshell labor-saving function; Adjust the height of the working plate to rise, you can adjust the spacing between the DIE; Using the motor lifting and cylinder lifting to complete the membrane expansion process, to ensure the consistency of the membrane expansion;
DSXUV 12inch Semi-automatic Wafer Mounter Film Sticking Machine
This equipment (lamator) is mainly used for 12 inch Si wafer BG film coating. No burrs, no bubbles. The wafer type is dummy wafer. This semi-automatic film sticking machine is suitable for applying film to products such as wafers, semiconductors, ceramics, and glass. It is a device used for film coating processing, specifically designed to precisely adhere thin film materials to the surface of wafers. It combines the characteristics of manual operation and automatic control, providing higher film application accuracy and efficiency while maintaining operational convenience.
Manual Wafer Film Separator Silicon Stripping Machine
This film tearing machine is used to remove the protective tape on the surface of wafers after thinning or etching processes. The device can be used for film tearing on 4 ", 5", 6 ", 8", and 12 "wafers.

American LEDCure EIT Energy Meter Four Channel Four Band Professional Testing

Four-band monitoring is available with L-365,L-385,L-395 and L-405 responsesnergy Density (/cm2)

model no. :
EIT
Color :
Silvery
port of dispatch :
Shenzhen
Payment :
100% T/T before shippment
original region :
American
Lead Time :
7-15days

contact now

Product Details

EIT has launched LEDCure Four Band, a four-channel UV energy meter designed for accurate monitoring of UV LED curing systems

LEDCure Four Band is a professional UV LED curing machine with four channels energy meter

This instrument, launched by U.S.-based EIT in July 2025, is a specialized UVLED light source energy and illuminance monitoring device. Distinct from the previously released LEDCure Four Band Profile model, this UV energy meter operates without profile functionality. It also offers more affordable pricing compared to similar products.

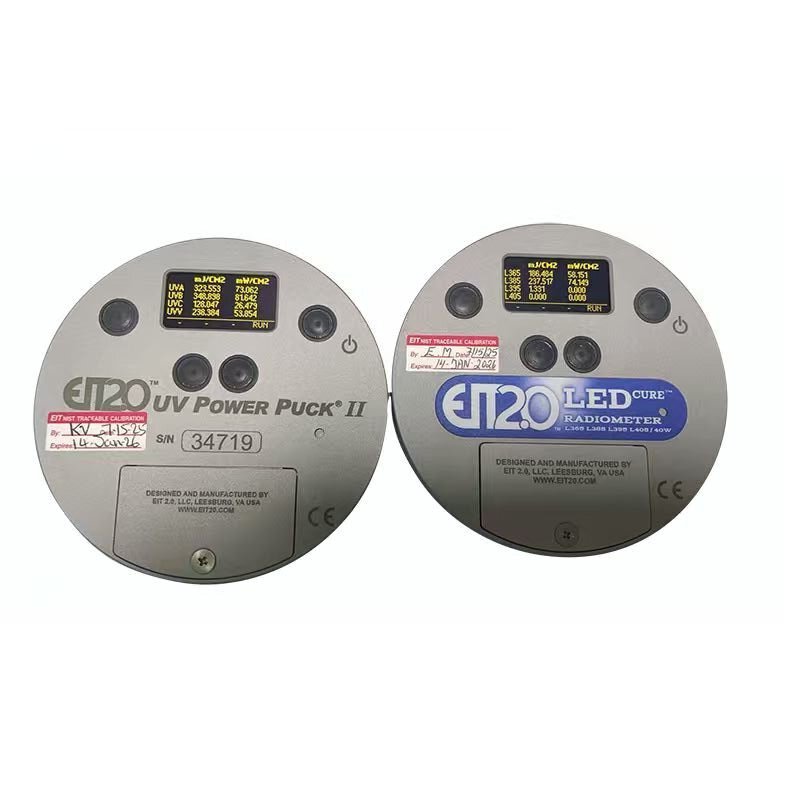

We are honored to have secured a unit for our client's order ahead of the product launch. Having conducted comparative tests on both UVLED systems and mercury lamp UV curing machines, we performed separate evaluations under identical operational conditions. Additionally, we measured the performance of EIT POWER PUCK II and LEDCure Four Band UV energy meters using mercury lamps and LED light sources respectively. For customers interested in learning more about this UV energy meter, please contact Shenzhen Deshengxing Electronics Co., Ltd.' s customer service in advance.

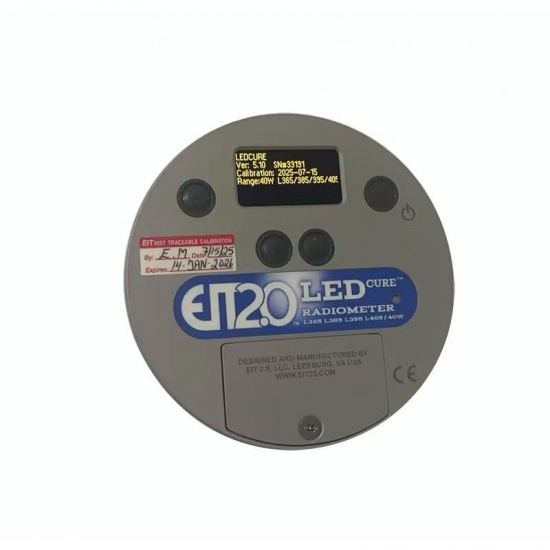

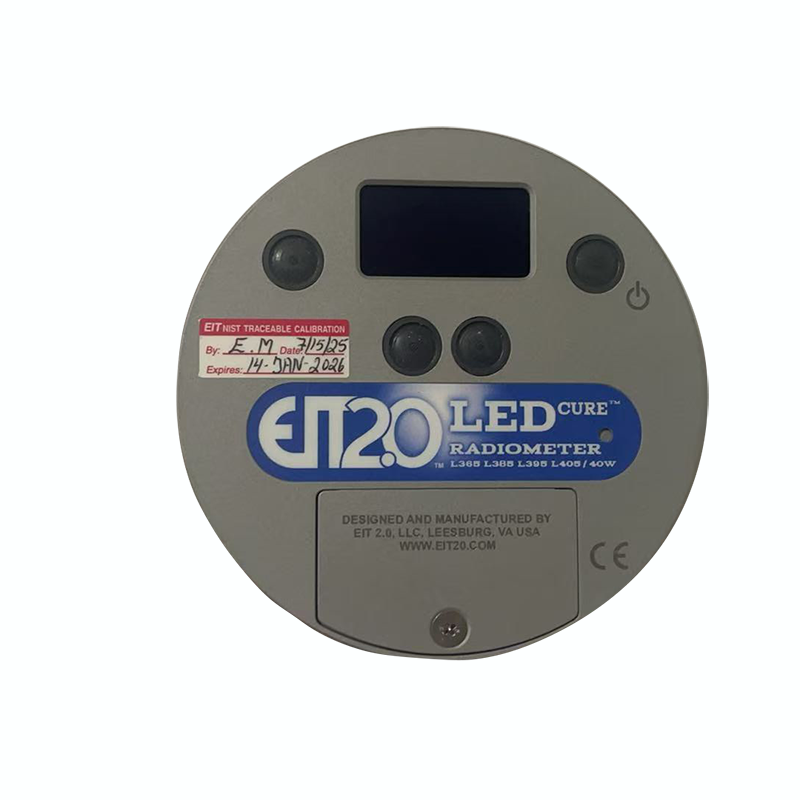

LEDCure EIT Meter

Product Parameter:

Brand: EIT.

Origin: USA

Model: :LEDCure Four Band

Channel: four-band monitoring is available with L-365,L-385,L-395 and L-405 responsesnergy Density (/cm2)

Function: Monitor the UVLED curing machine's ultraviolet energy value and illuminance value elrradiance (W/cm2) &E range: 40W

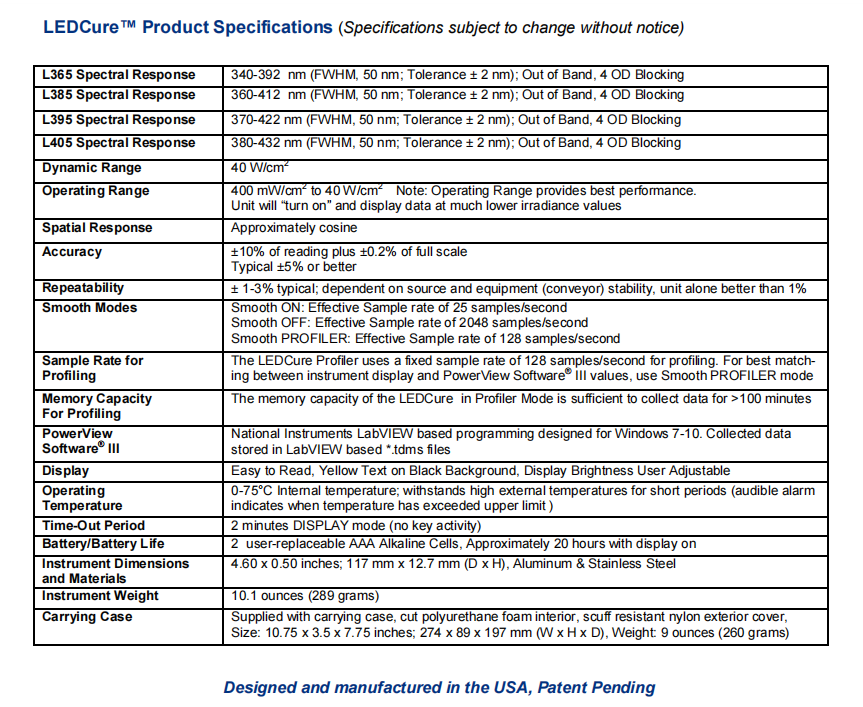

specification of EIT METER
