UV LED Curing Machine for UV Adhesive Curing on Lithium Cell UV LED Curing Machine for UV Adhesive Curing on Lithium Cell UV LED Curing Machine for UV Adhesive Curing on Lithium Cell UV LED Curing Machine for UV Adhesive Curing on Lithium Cell

UV LED Curing Machine for UV Adhesive Curing on Lithium Cell

Lithium Battery Module LED UV Curing Machine for UV Adhesive Curing is a high-performance UV LED curing machine system designed for the curing of lithium battery module UV adhesive.

  • model no. :

    Lithium Battery Module UV Conveyor
  • Brand:

    DSXUV
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
  • original region :

    CHINA
Product Details

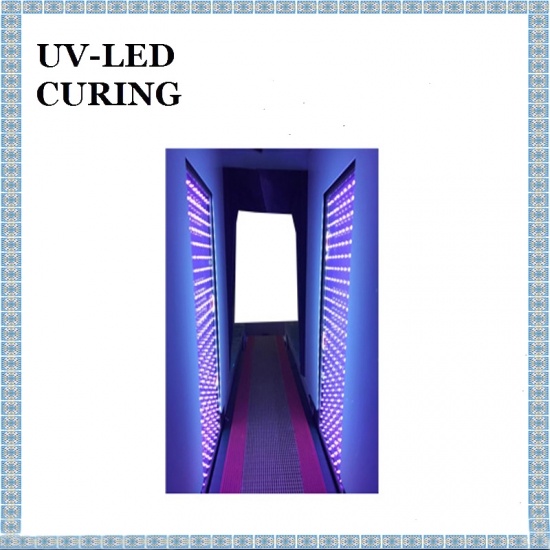

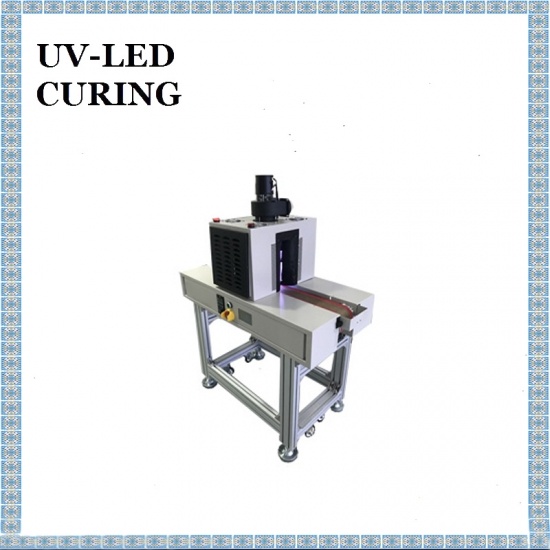

Lithium-Ion Battery Module LED UV Curing Machine for UV Adhesive Curing is a high-performance UV LED curing machine system designed for the curing of lithium battery module UV adhesive. The system mainly includes control system, UVLED irradiation head and conveyor belt, and the two sides are illuminated, and the special parts can be dispensed for the top surface. It has a good curing effect, and the whole machine and light source area can be customized.



Specification Sheet

1. UV LED head

Wavelength: 365nm

Model : DSX-II

Curing area: 240X100mm

Optical power density: 1100mw/cm2

Recommended irradiation distance: 10-100mm

Dimensions: L260*W160*H80mm


2. Control System

Panel display, touch operation, real-time monitoring of the working state of the head

Power 0-100% adjustable, conveyor speed adjustable

Temperature monitoring

Infrared sensing control, working mode selection

Machine size: L1000*W500*H1050mm


Product Overview

* The heat radiation is small, the irradiation machine can choose different wavelengths such as 365/395/405nm, no infrared spectrum is emitted, no high temperature heat.

* Produce high-energy, high-purity ultraviolet light, and use the latest high-energy ultraviolet LED to quickly complete the curing of UV glue, greatly improving production efficiency.

*Energy saving and environmental protection, low power consumption of LED, no need to preheat when used, instantaneously reach 100% high power, that is, power can be adjusted, that is, on or off, power saving ratio ≥1:6, high efficiency of ultraviolet photoelectric conversion, and not It contains mercury, no dark ultraviolet skin cancer, and no ozone. It is a safer and more environmentally friendly alternative to traditional light sources.

*Integrated design, equipment installation is convenient and fast, just use the light source to install, the height of the light source can also be adjusted according to specific needs.


Lithium-Ion Battery Module UV Curing Equipment


Belt Conveyor UV Conveyor Oven


Lithium-Ion Battery Module UV Conveyor Oven
