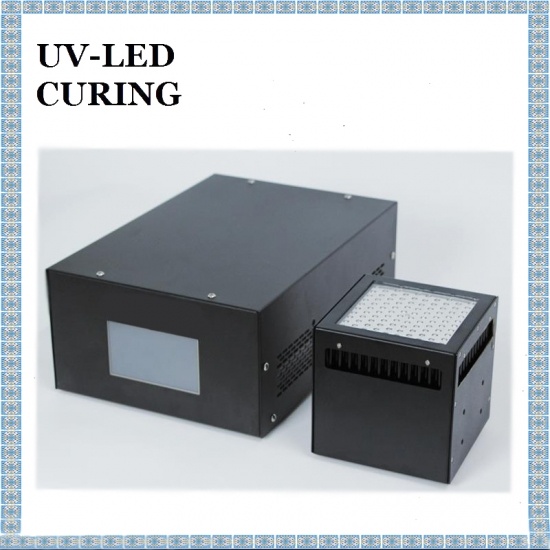

365nm UV LED Area Light Source 100*100mm can use for Electro-acoustic vibration motor curing, Optical lens fixation, Fiber optic coupler, LCD sealing and other applications.
model no. :
100*100mm UV LED Curing MachineBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINALarge Area 365nm UV LED Curing Light Source 100*100mm can use for Electro-acoustic vibration motor curing, Optical lens fixation, Fiber optic coupler, LCD sealing and other applications.
Applications of Stabilized UV Curable Adhesive Systems :
1. Fast curing UV adhesive for bonding glass and metal
2. Fast curing UV tri-resist paint applied to the circuit board
3. Fast curing UV ink printed on t-shirts
4. Instant sterilization of disposable cup lid
5. Instant curing and adhesive of disposable medical catheters, containers or other medical equipment UV glue, and high UV sterilization equipment.
6. Instant curing on the plastic mobile phone case of various UV ink
7. Instant curing adhesive paper book display surface and protective film between UV water glue
8. Instant curing and adhesion of various crystal, glass and other crafts, commemorative plate, key chain UV glue, and wood surface UV varnish.
9. Transfer printing technology to replace part of the injection molding machine, rapid mass production of precision plastic parts.
10. Instant curing and adhesion of various LCD glass and its gold pipe foot of UV glue, as well as curing LCD end of UV sealant.

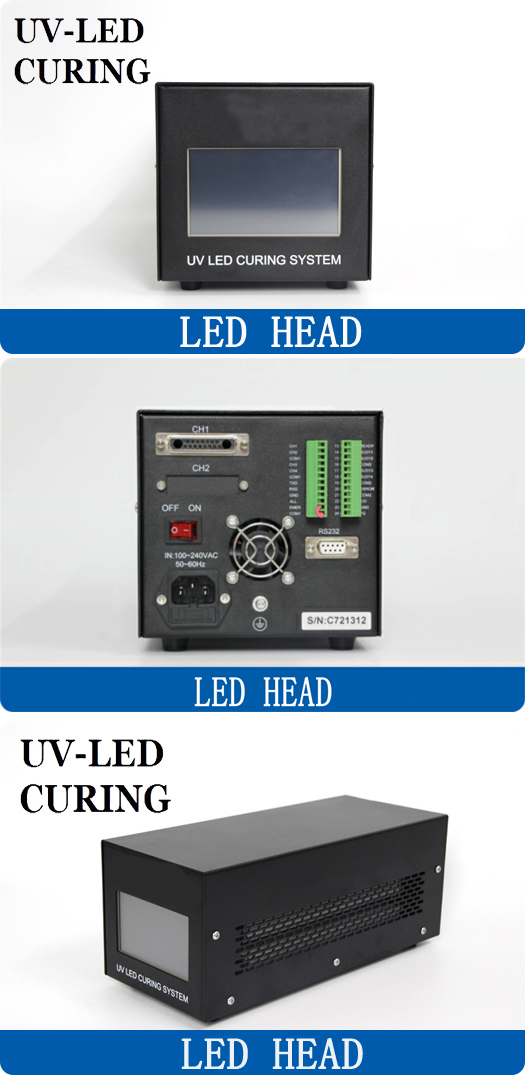

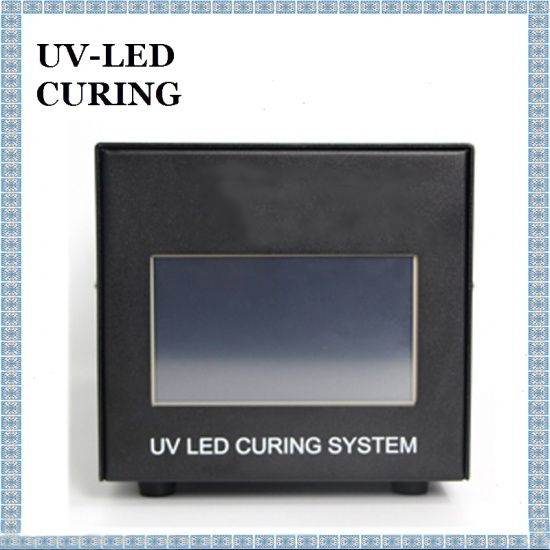

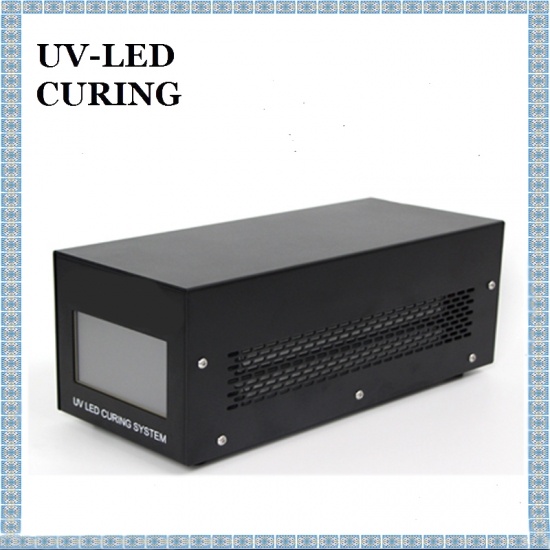

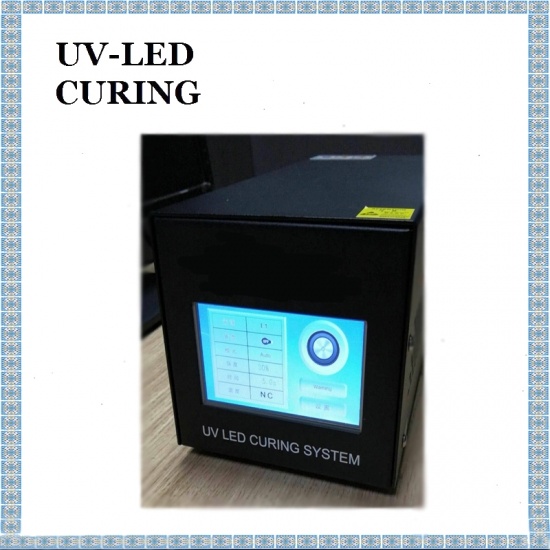

Controller Specification of Customizable LED UV Coating Curing Equipment :
Dimensions |
L330*W140*H130 mm |
Power |
50W |
Cooling |
Fan Cooling |
Power Input |
100-240V AC 50-60 HZ |
Material / Weight |
About 3.5 KG Black Sheet Metal |
LED Head Number |
One, Independently Controlled |
Set Lock |
Built Passwords Change Function |

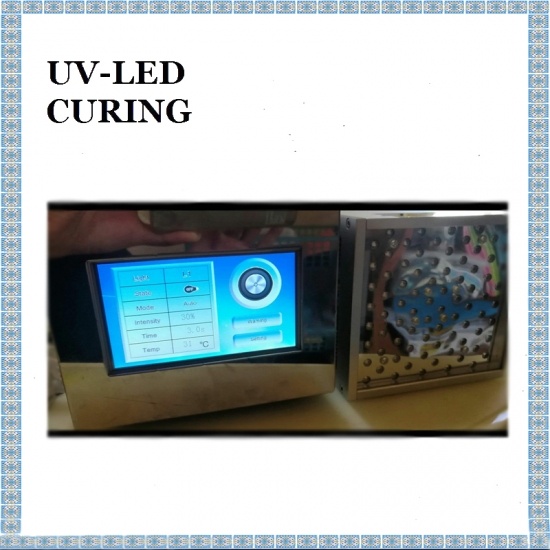

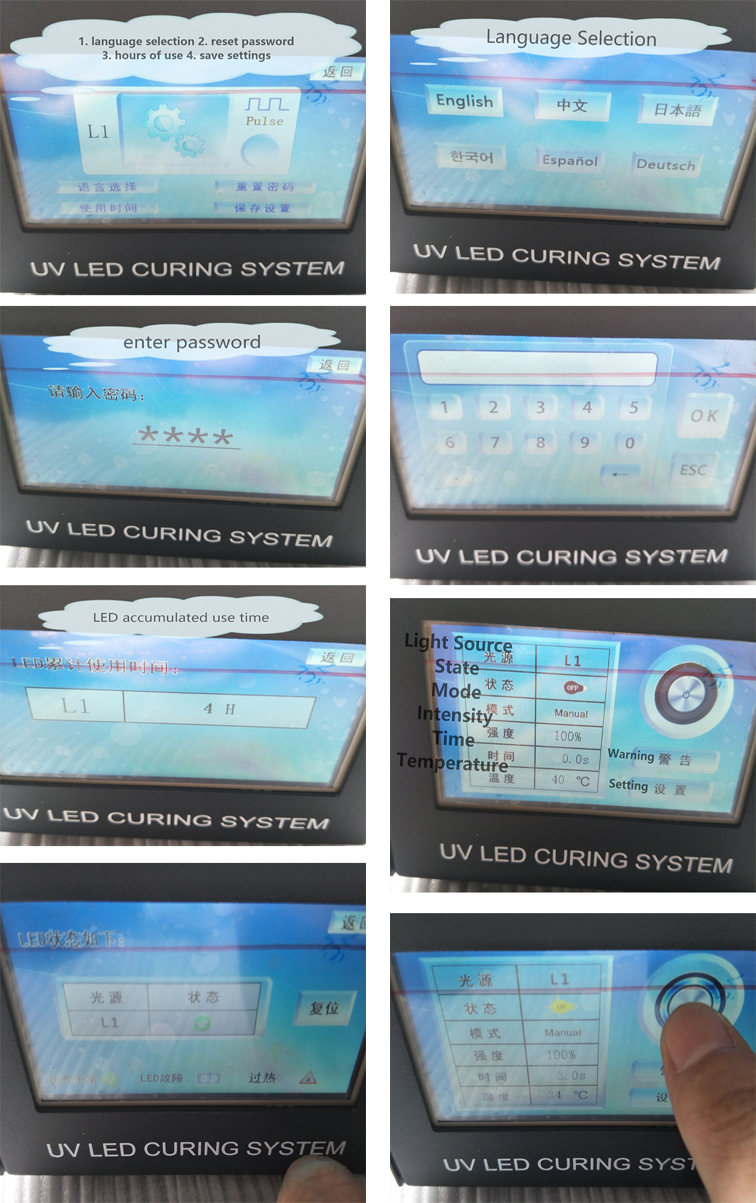

Display and Operation |
Touch Screen, Time, Intensity, Mode Adjustable |

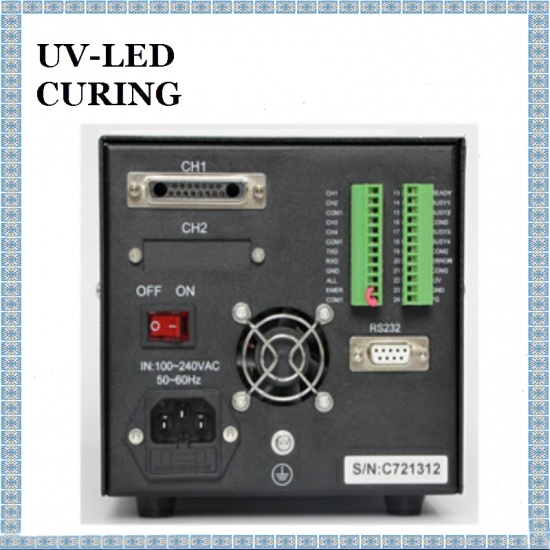

RS232 Serial Communication |
Can Query and Adjust Intensity, Time and Mode |
Control Method |
Connected with MCU, PLC, and other Automatic Equipment to Control and Feedback the Work State |
Error Warning |
Overheat, fault warning |
LED Cumulative Time |
Record Accumulated Using Time |

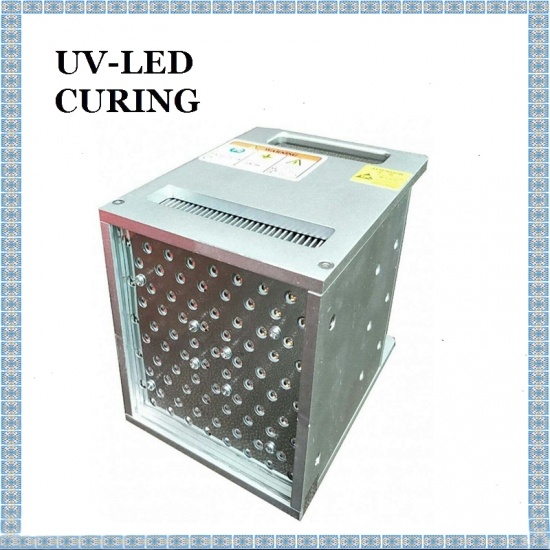

LED Head Specification of Imported 365nm UV Curing System Printing Machine :
LED Area |
100 * 100mm |
Power |
< 3000W |
|
Dimension |
L 130*W130*H130 mm |
Distance |
5 mm |
|
Cooling |
Fan Cooling |
Wavelength (nm) |
365 / 385 / 395 / 405 |
|
Material / Weight |
Sheet Metal / About 2.5kg |
Intensity (mW / cm2) |
2200 |
2000 @ EIT |
LED Life |
20000 H |
|||
Monitoring Methods |
Recognition, Temperature |
Connect Cable |
2 / 5 m (Customizable) |
Characteristics of High Intensity 365nm LED UV Curing Device :
1.Mercury free, safer and more environment friendly
2.It is ready to use without preheating
3.Chip integration, higher integration, can be customized according to requirements
4.The equipment is simple in structure, less space occupied and easy to install
5.Direct water cooling and heat dissipation can extend the service life
6.Cold light source, no harmful ultraviolet radiation, reduce the heat produced by curing process
7.The luminous efficiency is higher, the electricity consumption is small, the service lifer reaches 30,000 hours
8.Suitable for variety of substrates : flexible or rigid, absorbable non-absorbent materials
Advantages of Large Area UV Curable Adhesive Systems :
The UV LED Area Light Source 100*100mm 365nm can be used without changing ink
1.Save electricity : 80% less than mercury lamp
2.Low temperature : cold light source, very low temperature rise, all materials can be perfectly solidified, no deformation to the sheet materials, no need to dry twice, save time, improve the quality rate
3.High efficiency : high light intensity, fast curing speed, ink non stick board, pressure light effect than mercury lamp
4.Practical: industry standard equipment, convenient and fast installation;The power is on and off without preheating.Simple operation and high efficiency
5.Environmental protection: mercury lamp will produce harmful gases, carbon monoxide and UVLED is long wave, a single wavelength, and does not produce gas, harmless to human body, the work environment clean and tidy, accord with energy conservation and environmental protection policies advocated by the state, don't have to worry about the EIA (Environment Impact Assessment)
6.After sale: 2W hours warranty, UV LED light source life can reach more than 30,000 hours, during which almost no money will be spent
