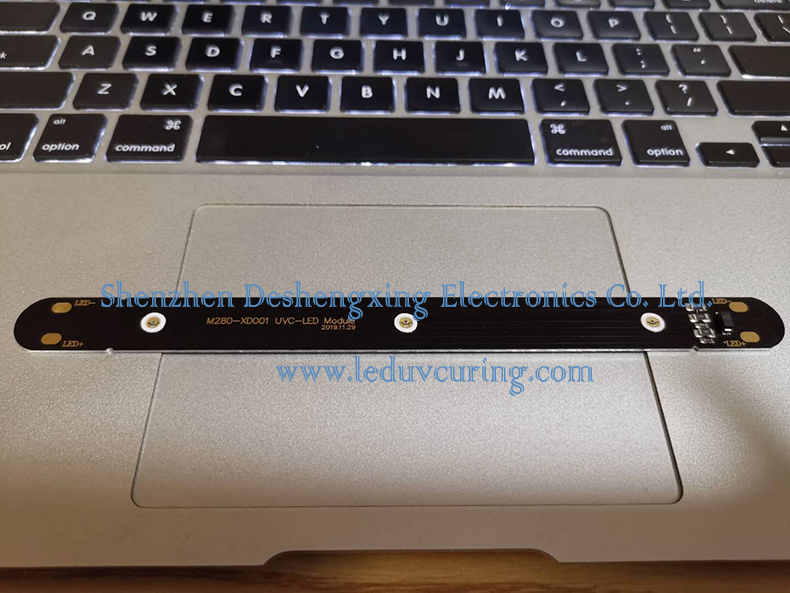

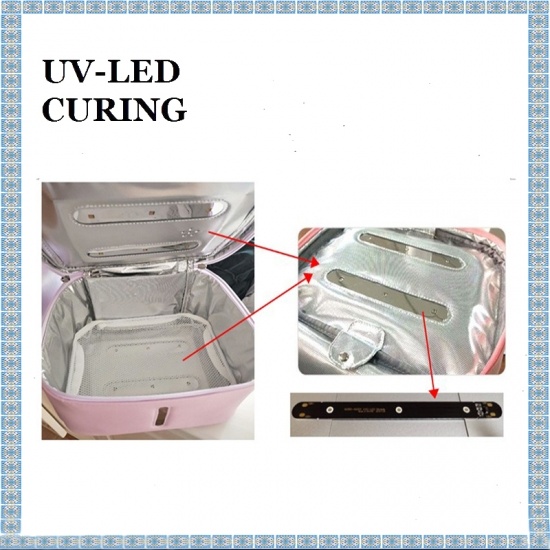

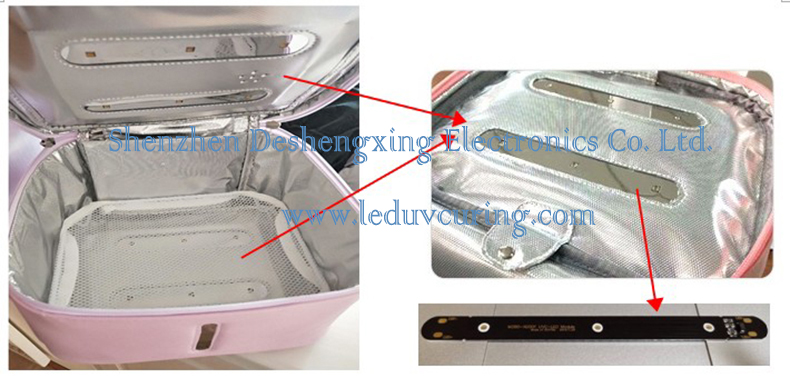

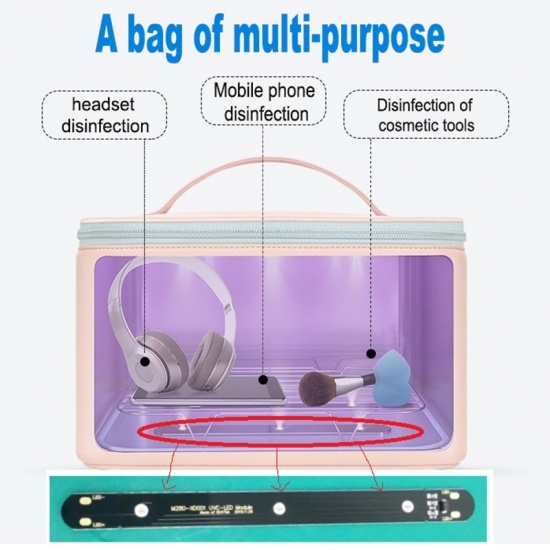

Ultraviolet sterilization bag, other ultraviolet sterilization products UVC LED accessories, UVC LED two-color lamp, can be replaced and maintained.
model no. :
UVC LED Lamp AccessoriesBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :

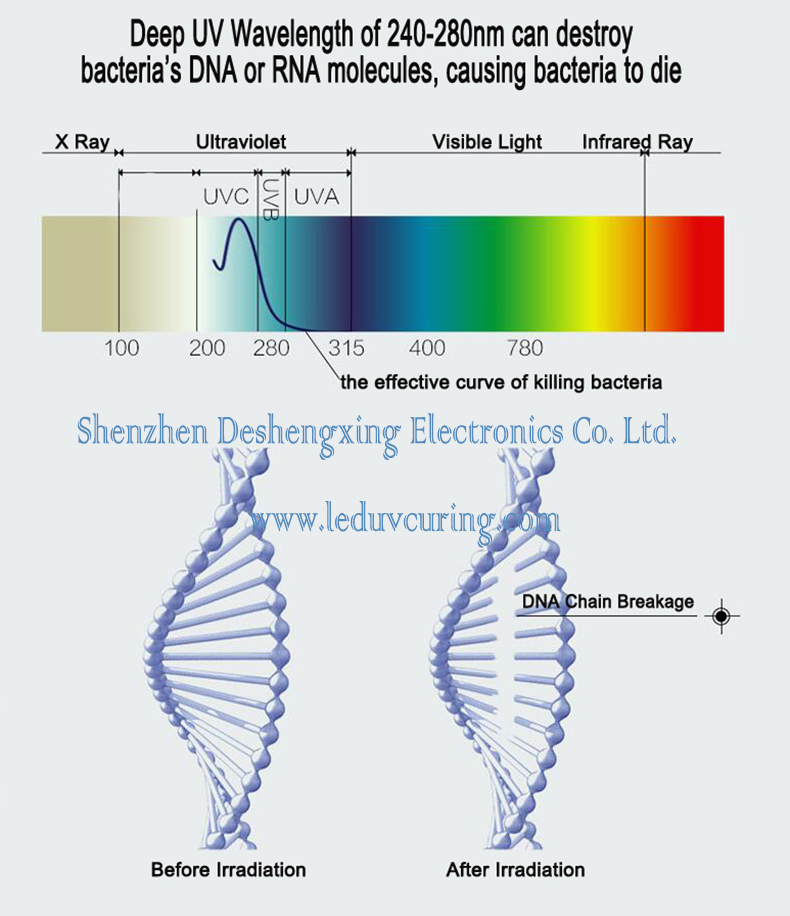

ChinaDNA, the genetic material of biological cells in the UV scope, causes DNA damage and leads to bacterial death. In addition, specific bands of UV light can interact with the oxygen in the air to produce strong oxidation of ozone, thereby killing bacteria.
Parameters of UVC Ultraviolet Sterilizing Light Killing Bacteria : (unless otherwise specified, the test ambient temperature T=25℃)
Parameters |
Min. Value |
Typical Value/rating |
Max. Value |
Unit |
|
Input Voltage |
/ |
9 |
/ |
V |
|
Input Current |
220 |
260 |
300 |
mA |
|
Input Power |
1.98 |
2.34 |
2.7 |
W |
|
Wavelength |
UVC |
270 |
/ |
280 |
nm |
UVA |
390 |
395 |
400 |
nm |
|
Luminous Power |
180 |
21 |
24 |
mW |
|
Ambient Temperature |
-30 |
/ |
60 |
℃ |
|
LED Encapsulation |
/ |
COB |
/ |
|
|
LED |
Quantity |
3 |
/ |
PCS |
|
Size |
/ |
As shown in drawing |
/ |
mm |
Characteristics of High Power UVC UV LED Light Beads for Disinfection :
1.The use of independent research and development of ultraviolet UVC-LED,, reliable performance, high light power, low power consumption.
2.LED is thin thickness, compact size.
3.The product uses DC 9V constant voltage power supply.
4.Nanosecond instant start of product without delay, stable working state can be achieved after starting.
It can withstand frequent switching without affecting the life.

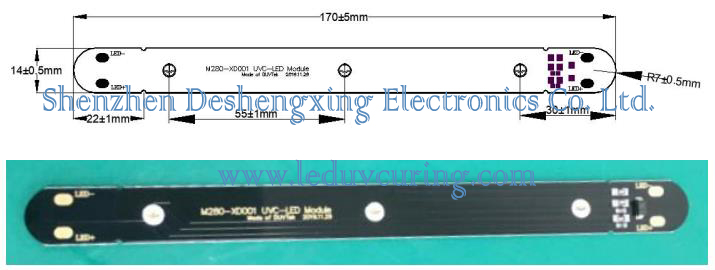

Size and Drawing : (unit : mm)

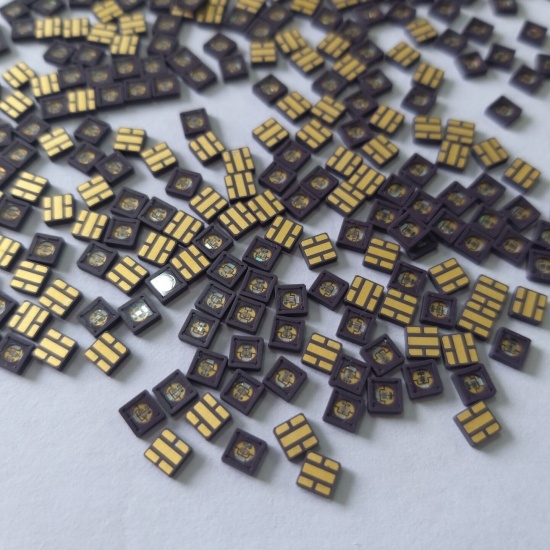

Photoelectric Parameter of Antiseptic UVC UV Chips for Sterilization :
Parameters |
Symbol |
Unit |
Specification |
Peak Wavelength |
λp |
nm |
270~280 |
Radiant Power |
Po |
mW |
6~8 |
Full Width Half Maximum |
△λ |
nm |
10~14 |
Drive Current |
If |
mA |
80 |
Operating Voltage |
Vf |
V |
5~8 |
Thermal Resistant |
Rθj-b |
℃/W |
~18 |
Precautions for Use of Germicidal UVC UV Sterilizing Light for Health-Care :
1.The product must be handled gently, do not fall, do not touch the LED, especially the lamp bead out of the smooth surface.
2.Product is DC 9V constant voltage drive, do not use the power supply which does not meet the requirements for driving.
3.The product should be used in the rated temperature range of the environment, not in the high temperature closed environment for a long time to light.
4.Do not directly expose the module in the high humidity environment, should do a good waterproof and moisture-proof isolation treatment.
5.The transparent window on the light side of the product should use a high-purity quartz glass plate, which can effectively penetrate the UV of 270-280nm.

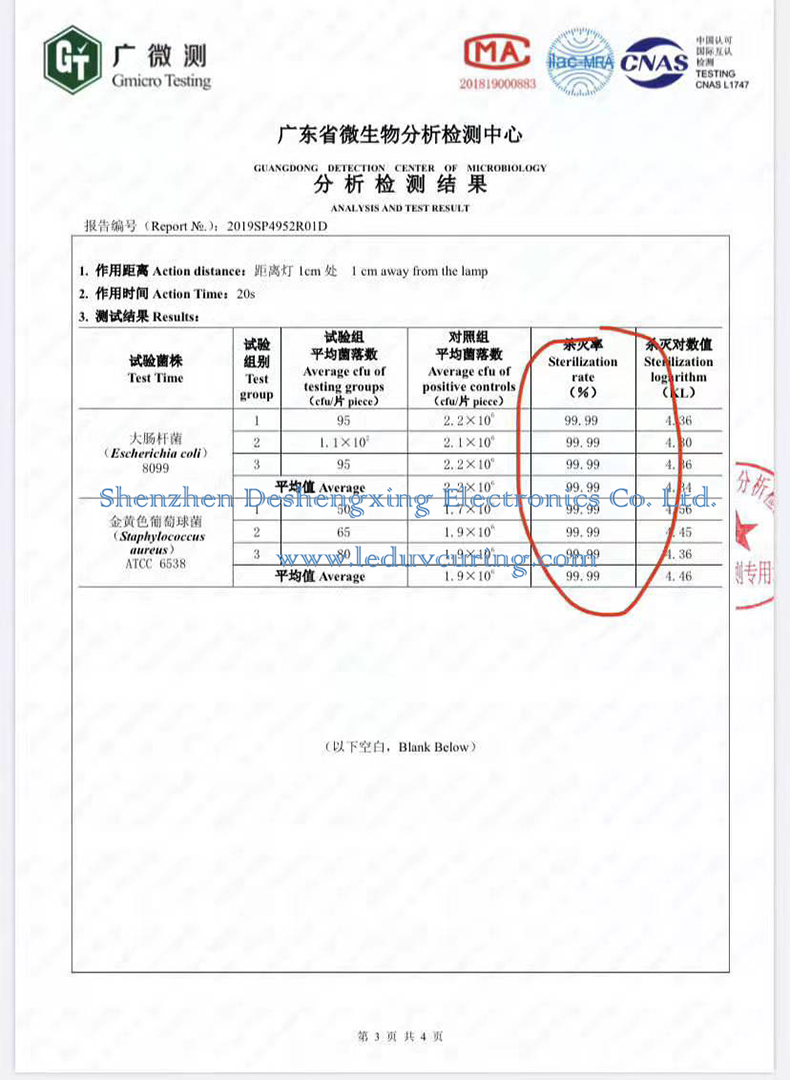

Type and time of UVC LED killing bacteria :
novel coronavirus |
Mycobacterium tuberculosis |
vibrio cholera |
Pseudomonas |
Salmonella |
Intestinal fever bacteria |
sal monella typhimurium |
Shigella |
Staphylococcus |
Streptococcus |
Escherichia coli |
influenza virus |
Rotavirus |
tobacco mosaic virus |
HBV(hepatitis B virus) |
Poliovirus |
Mycoticspore |
Penicillinae |
Production of penicillin |
Paramecin |
Application of Deep Ultraviolet LED :
Surface Sterilization
Water Sterilization
Ultraviolet Phototherapy
Air Purification
Analysis and detection
