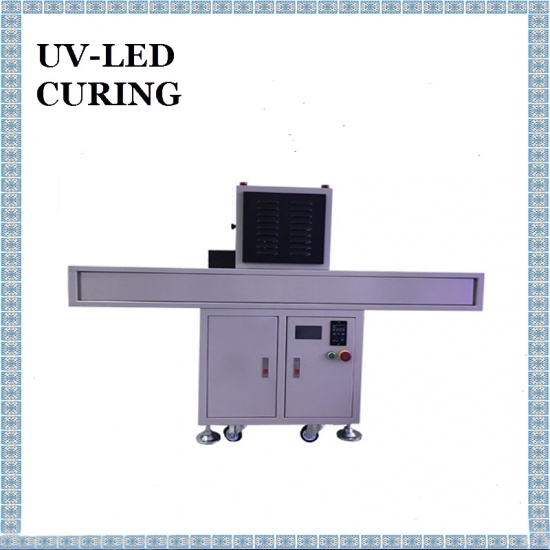

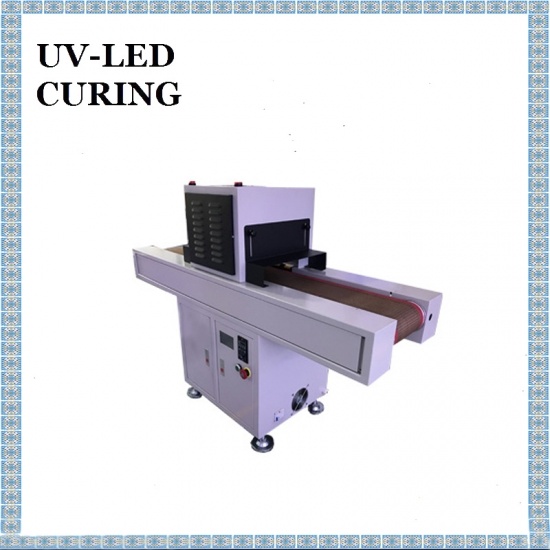

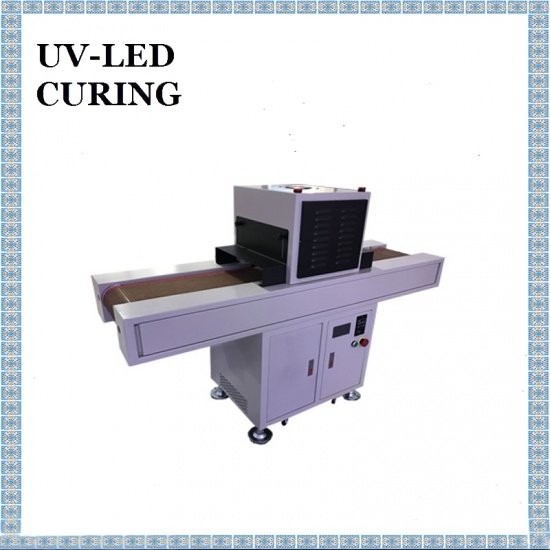

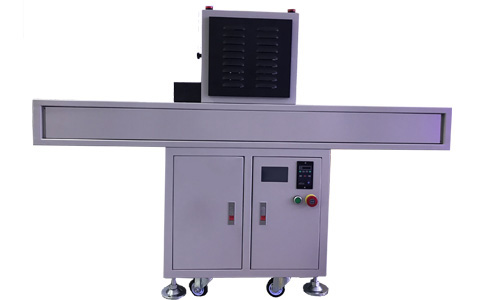

200X50mm Desktop UV LED Curing Conveyor for Screen Printing

Desktop UV LED Curing Conveyor is suitable for curing various thermal sensitive materials UV glue, infrared sensor intelligent control, start and stop control as required.

  • model no. :

    200X50mm UV Conveyor System
  • Brand:

    DSXUV
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
  • original region :

    CHINA
Product Details

Desktop UV LED Curing Conveyor LED UV curing machine replaces traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep UV, low energy consumption, high efficiency, no infrared radiation, cold light source, suitable for curing various thermal sensitive materials UV glue, infrared sensor intelligent control, start and stop control as required.


Product Overview

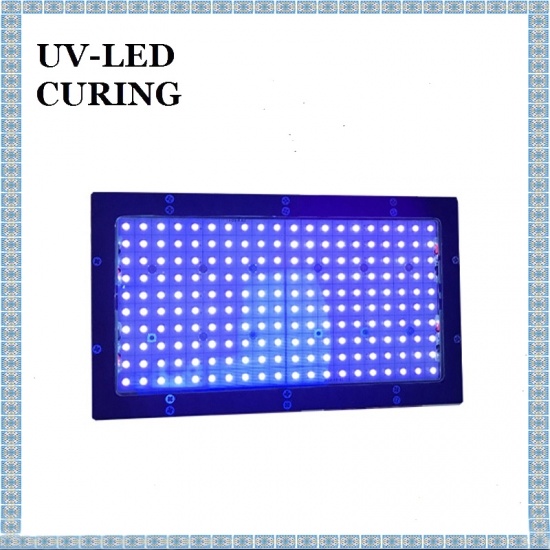

This is a high performance UVLED surface light source curing system designed for UV adhesive curing. The system mainly includes control system, UVLED head and conveyor belt. The UVLED head of the machine is integrated with imported high-intensity UV LED. The UV spectrum wavelength is 395. /405nm, effective curing area of200X50mm supports external signal input and triggering, can be used with semi-automatic or fully automatic production line, the conveyor belt material is Teflon.



Specification Sheet

wavelength:  395/405nm

Model: DSX-S440-200X50-395/405

 Electric power:  1320W

 Optical power density:  12000MW/CM2

 Irradiation area:  200X50mm

 Irradiation height:  10mm

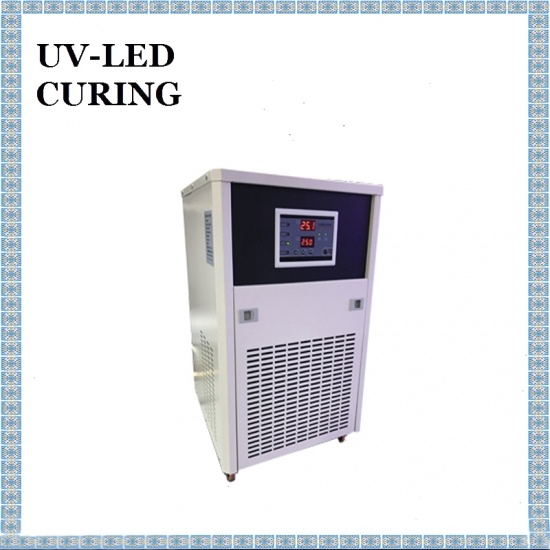

 Cooling method:  Water cooling

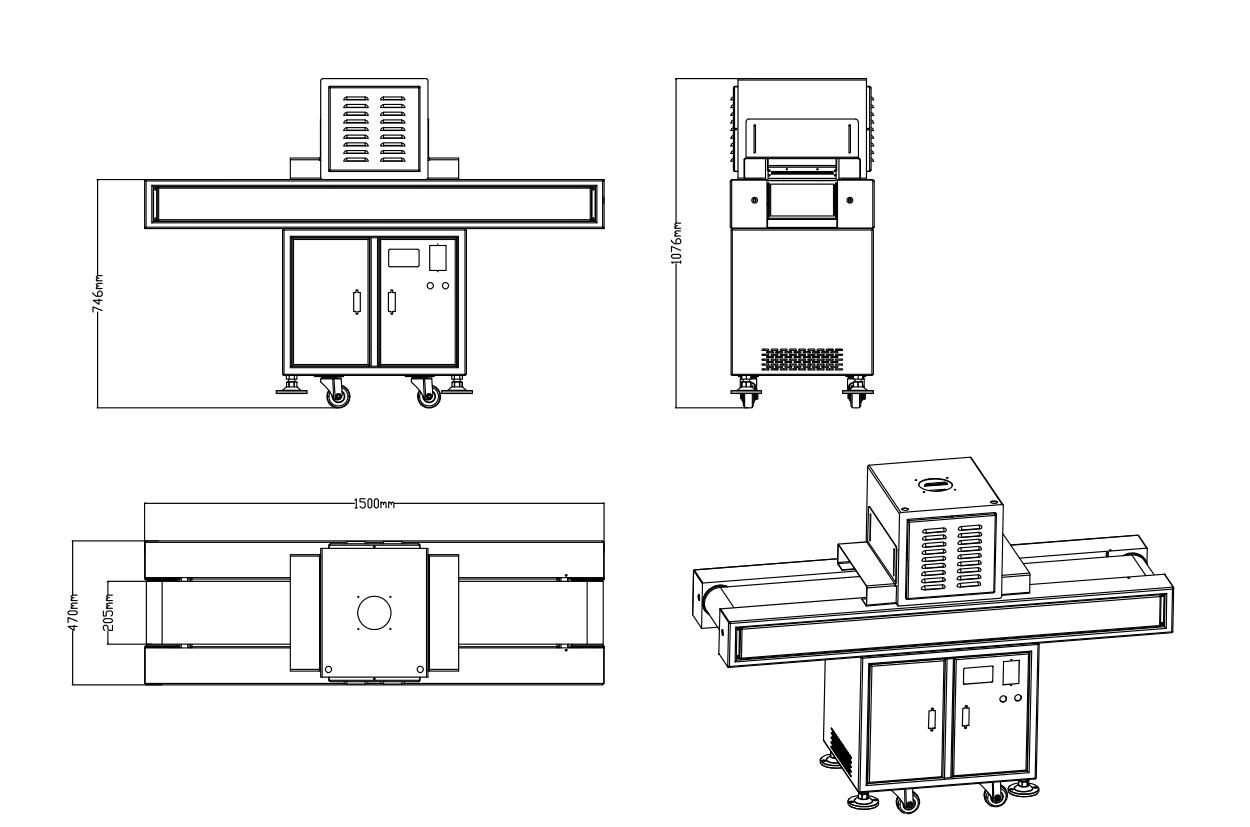

 Overall size:  L1500mm*W470mm*H1076mm



Table Type UV Curing Conveyor Systems

Table LED UV Conveyor UV Curing
