UVC Underwater Detection Sterilization Lamp UV Intensity Meter UVC Underwater Detection Sterilization Lamp UV Intensity Meter UVC Underwater Detection Sterilization Lamp UV Intensity Meter UVC Underwater Detection Sterilization Lamp UV Intensity Meter

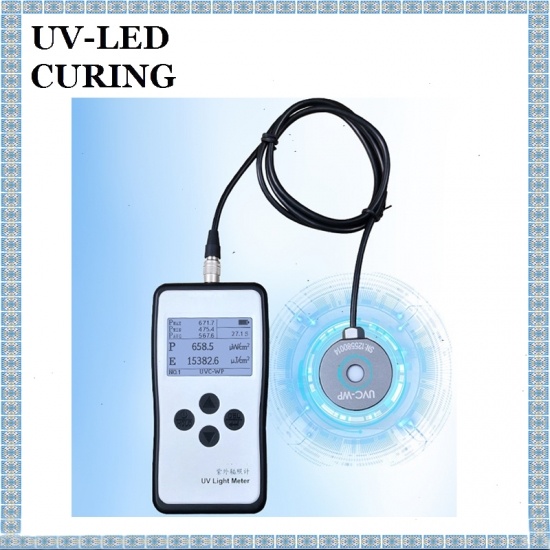

UVC Underwater Detection Sterilization Lamp UV Intensity Meter

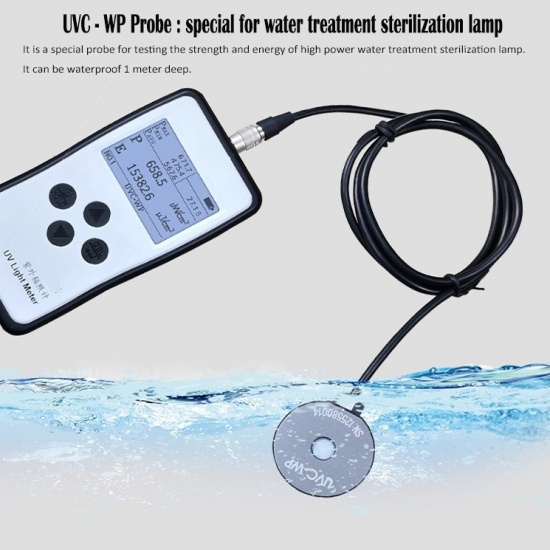

UVC-WP UVC Meter is a probe specially developed for water treatment high-power sterilization lamp, its response wavelength of the probe is 230nm-280nm.

  • model no. :

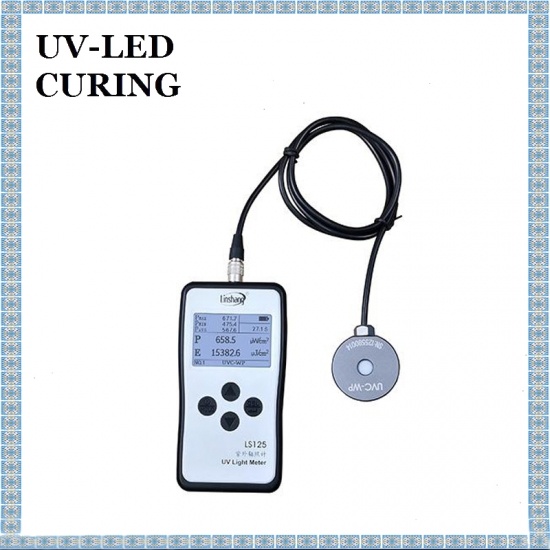

    UVC-WP UV Intensity Meter
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
Product Details

Water treatment is divided into waste-water treatment, urban water supply treatment, drinking water treatment, pure water treatment, aquaculture water treatment;There are two methods of water treatment, the first is to put the UVC Sterilization Lamp in the water sterilization, the second is to put the sterilization lamp in the casing, because the flow rate of water is too fast, sterilization lamp time sometimes less than 1 second, so will require the use of high power sterilization lamp or choose a longer UV lamp to sterilization.


Waterproof UVC Meter Supplier



Parameter of Handhled UVC Light Meter :

Weight : 194g

Dimension : L148mm*H76mm*W26mm

Display : 240*160 touch screen LED

Battery : four AAA Alkaline Dry Cell

Probe Connection : push - pull self - locking (clasp type) connector



Standardizing UV Process Supply

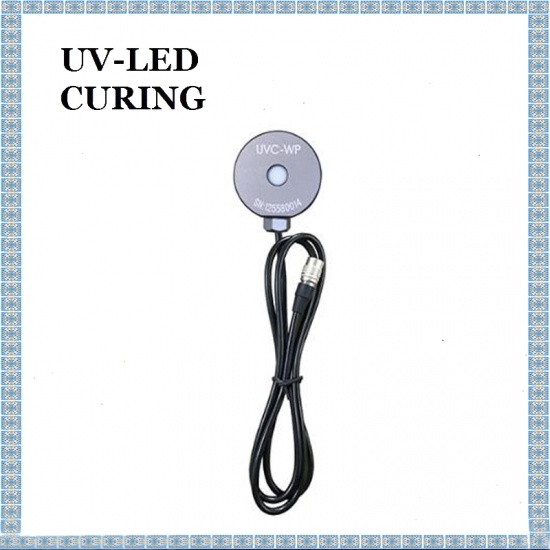

UVC-WP UV Intensity Sensor Probe is one of the 9 probes of LS125 ultraviolet irradiance meter. It is a probe specially developed for water treatment high-power sterilization lamp. The response wavelength of the probe is 230nm-280nm, with waterproof function, waterproof depth up to 1 meter, and can detect the intensity and energy of the sterilization lamp.


Parameter of UVC UV Sensor Probe:

Spectral Response

 230nm-280nm, λp=254nm

Power Measurement Range

0-200000μW/cm2

Power Resolution

0.1μW/cm2

Energy Measurement Range

0 - 9999999μJ/cm2

Write Time

0 - 99999S

Measurement Accuracy

±10 %

Sampling Rate

6 times / s

Units

μW/cm2 (default)mW/cm2W/m2

Test the Diameter of Light Hole

10mm

Probe Size

diameter 50mm * thickness 20mm

The Depth of Waterproof

1m


UVC Sterilization Callibration UV Radiometer


Advantages of Portable UV Intensity Meter Caliibration :

1. Large range UV Intensity Meter Caliibration, the maximum power can be measured to 200000 W/cm2.

2. The instrument can measure the energy value and power value at the same time.

3. It has rich statistical functions, such as real time value, maximum value, minimum value, average value, measurement duration and energy value.

4. Can switch 3 measurement units, respectively W/cm2, mW/cm2, W/m2 data conversion between different units without manual calculation.

5. With waterproof function, waterproof depth up to 1 m.


LED UV Curing UV Measuring Meter Suppliers


How is UV measured

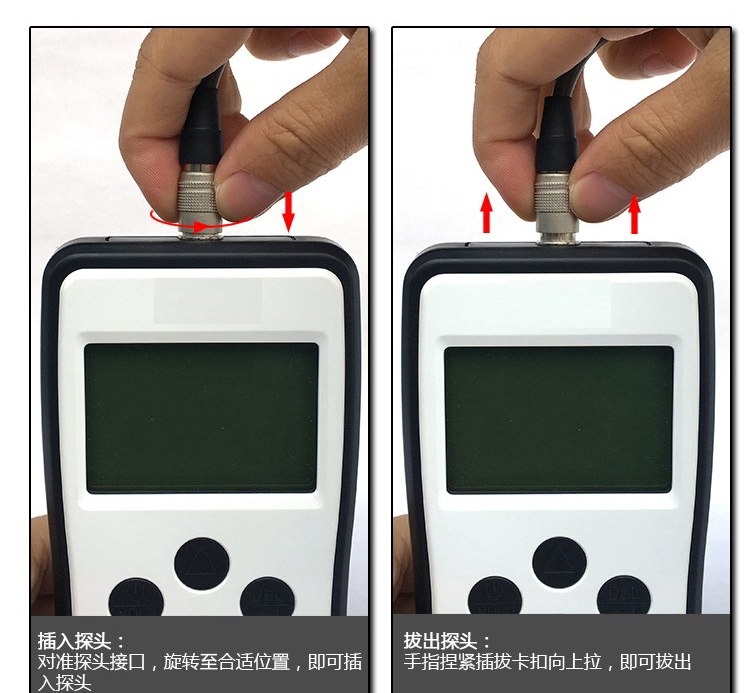

Connection of UV Intensity Meter Host and Probe

1.Insert probe : align the probe interface and rotate to the appropriate position to insert the probe

2.Pull out the probe : pinch the pull button with fingers and pull it up to pull out


Best UV Intensity Meter for Sales

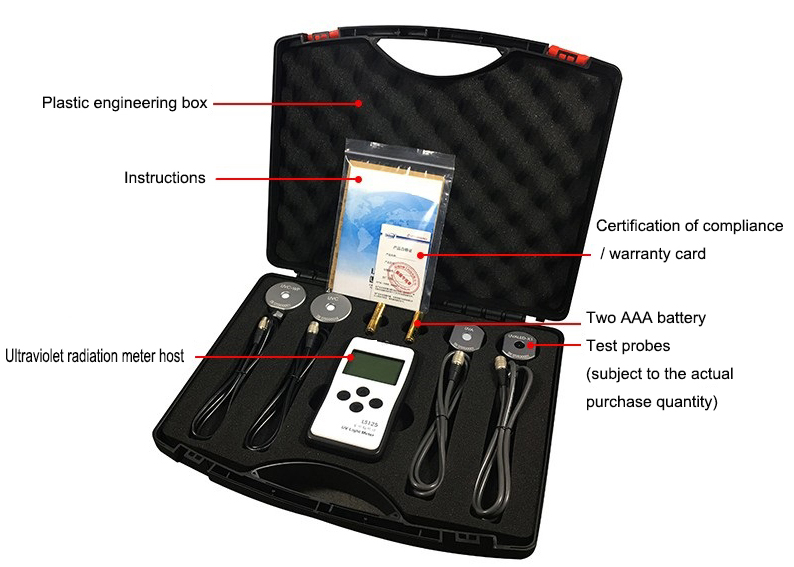

Packing Details of Best Waterproof UVC Meter :

1.Plastic engineering box

2.Instructions

3.Ultraviolet radiation meter host

4.Certification of compliance / warranty card

2AAA battery test probes (subject to the actual purchase quantity)


Expoert UVC Light Meter for UV Measurement

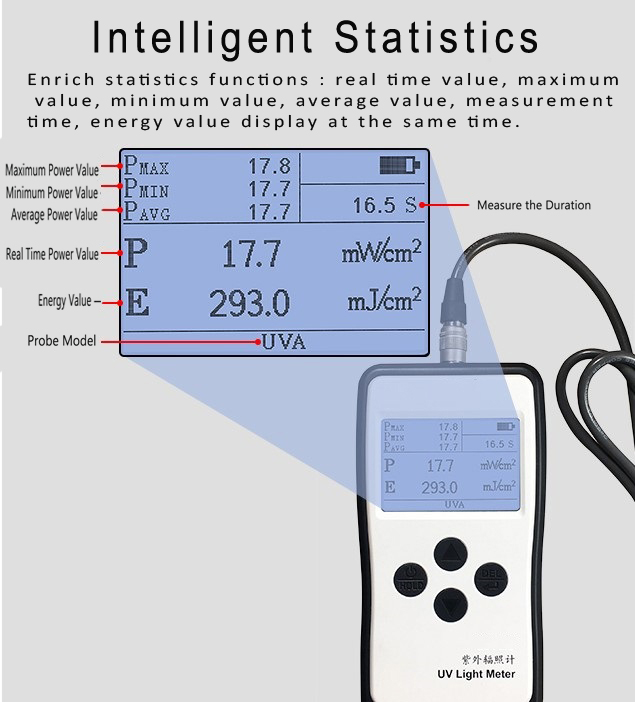

Intelligent Statistics of Accumulated UVC Light Meter :

Enrich statistics functions : real time value, maximum value, minimum value, average value, measurement time, energy value display at the same time.

Attention : when using UV Sensor Probe, do not put the main engine into water !

Accumulated UVC Light Meter for Water Quality Measurement
