UV LED Spot Light Source Collimating Lens Optical Collimation Lens

Collimating Lens Optical Collimation Lens UV LED Spot Light Source Standard

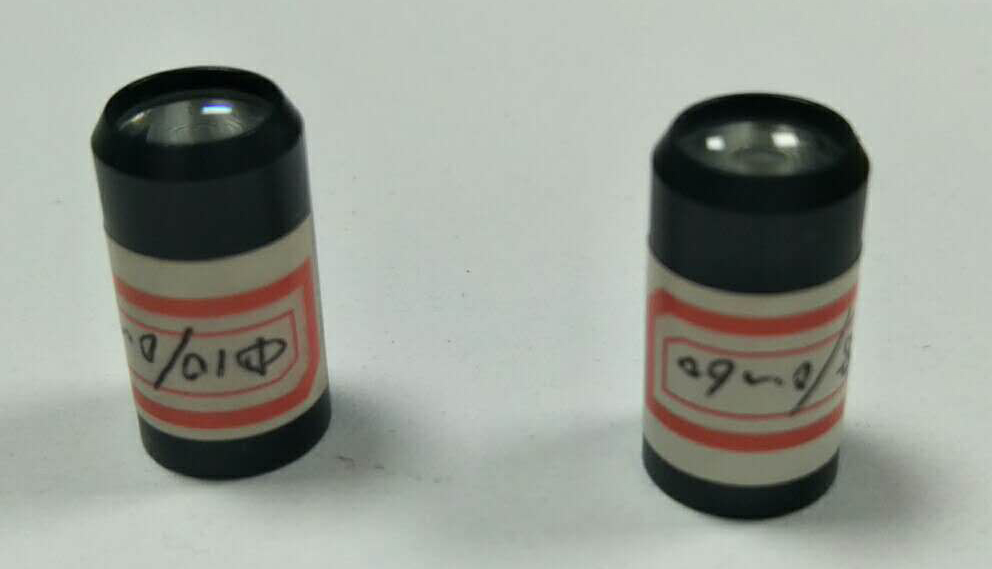

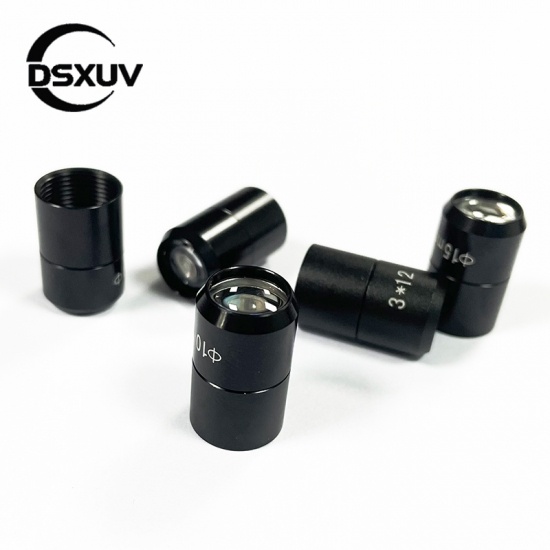

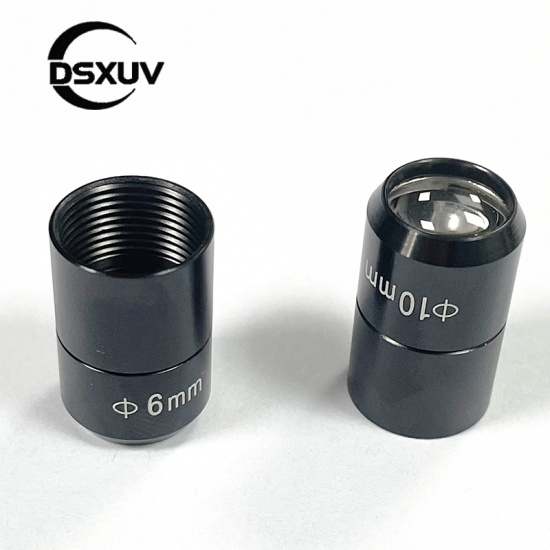

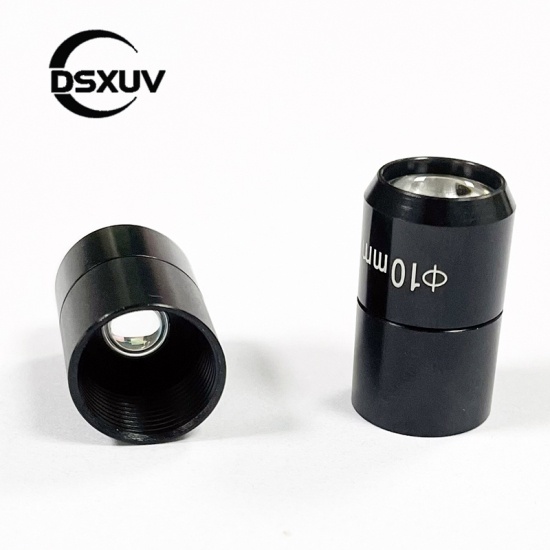

At present, our company has put out two kind of UV LED Spot Light Source Collimating Lens, light spot Φ8mm (the speckle does not spread within a range of 0-60 mm) and Φ10mm (the speckle does not spread within a range of 0-120 mm).

The Size of Lens : screw thread : M11*0.75

Attention : it's not infinite colliation, it's finite distance.

Thread is still the standard UV spot light source irradiation head.

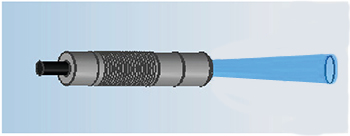

UV LED Spot Light Source Collimating Lens greatly increases the intensity of inrradiation, and meet industrial demand.

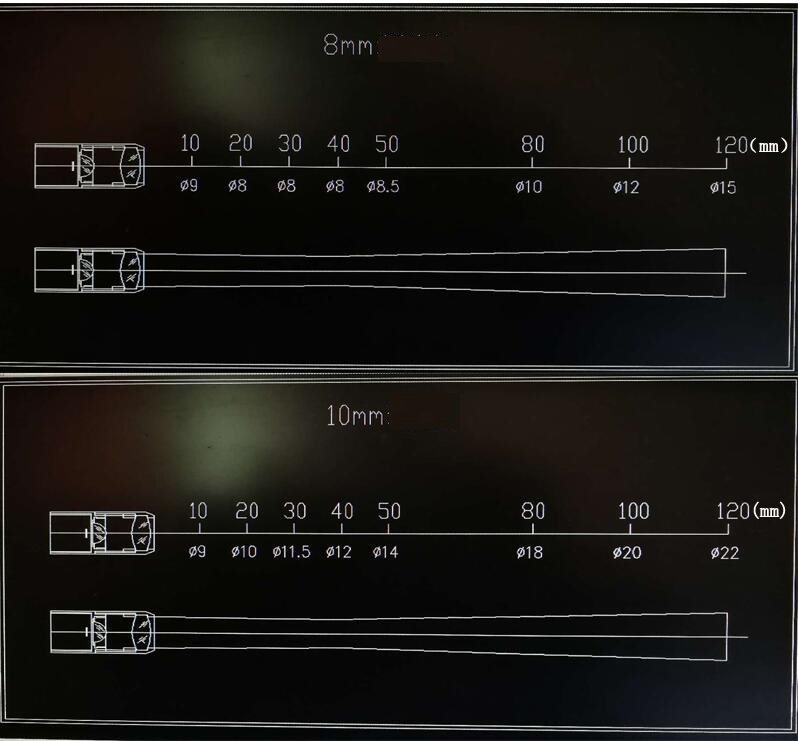

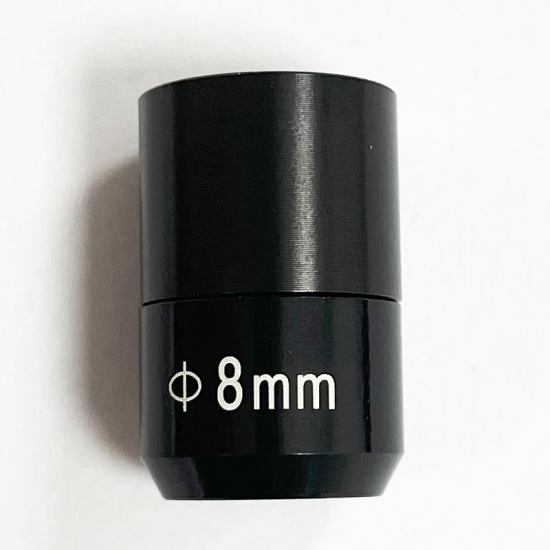

The 8mm light spot will not diffuse within the range of 0-60 mm.

The 10mm light spot will not diffuse within the range of 0-120 mm.

Caustion : for some UV Spot Light Source, you make sure that the chip is attached to irradiation head of UV LED spot light source at the bottom of the tube, which the depth of lens tube is 8.9mm. If necessary, the tube can be worn short.
