Air Cooling Spot UV LED Lights for Fast Curing UV Glue

UV LED Spoint curing machine is for fast curing UV glue only 1-5 seconds. The facility is using air cooling to shorten the attenuation of the lamp and increase the service life.

  • model no. :

    UV Spot LED Light Source
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
Product Details

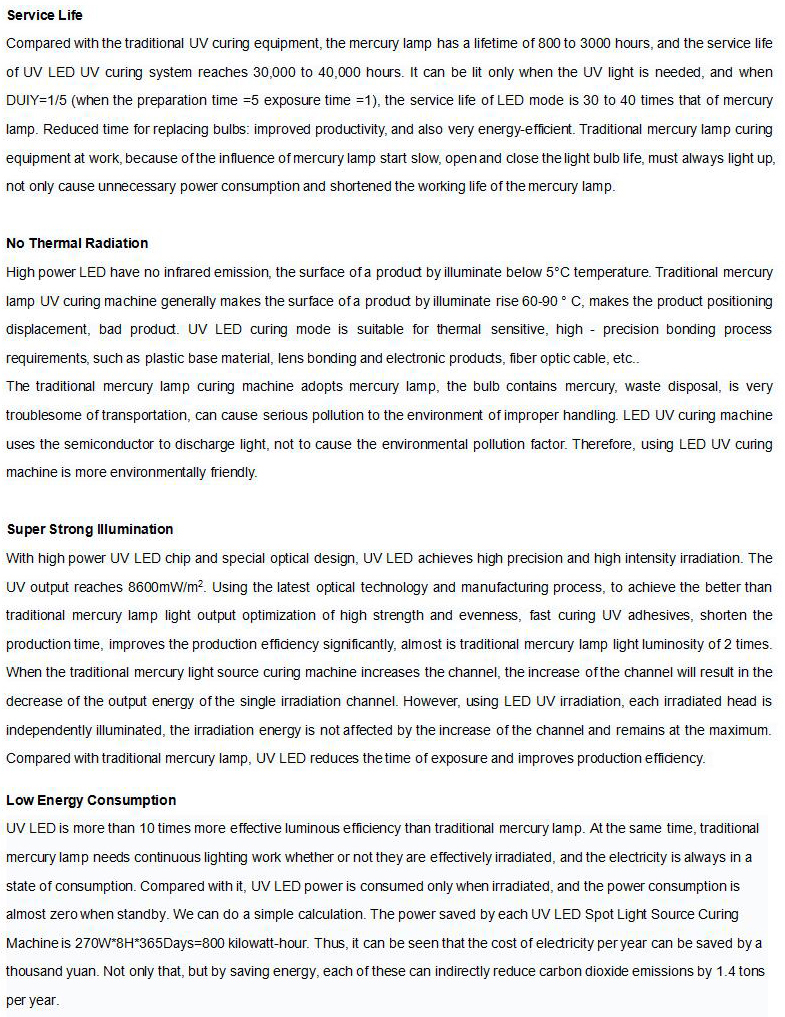

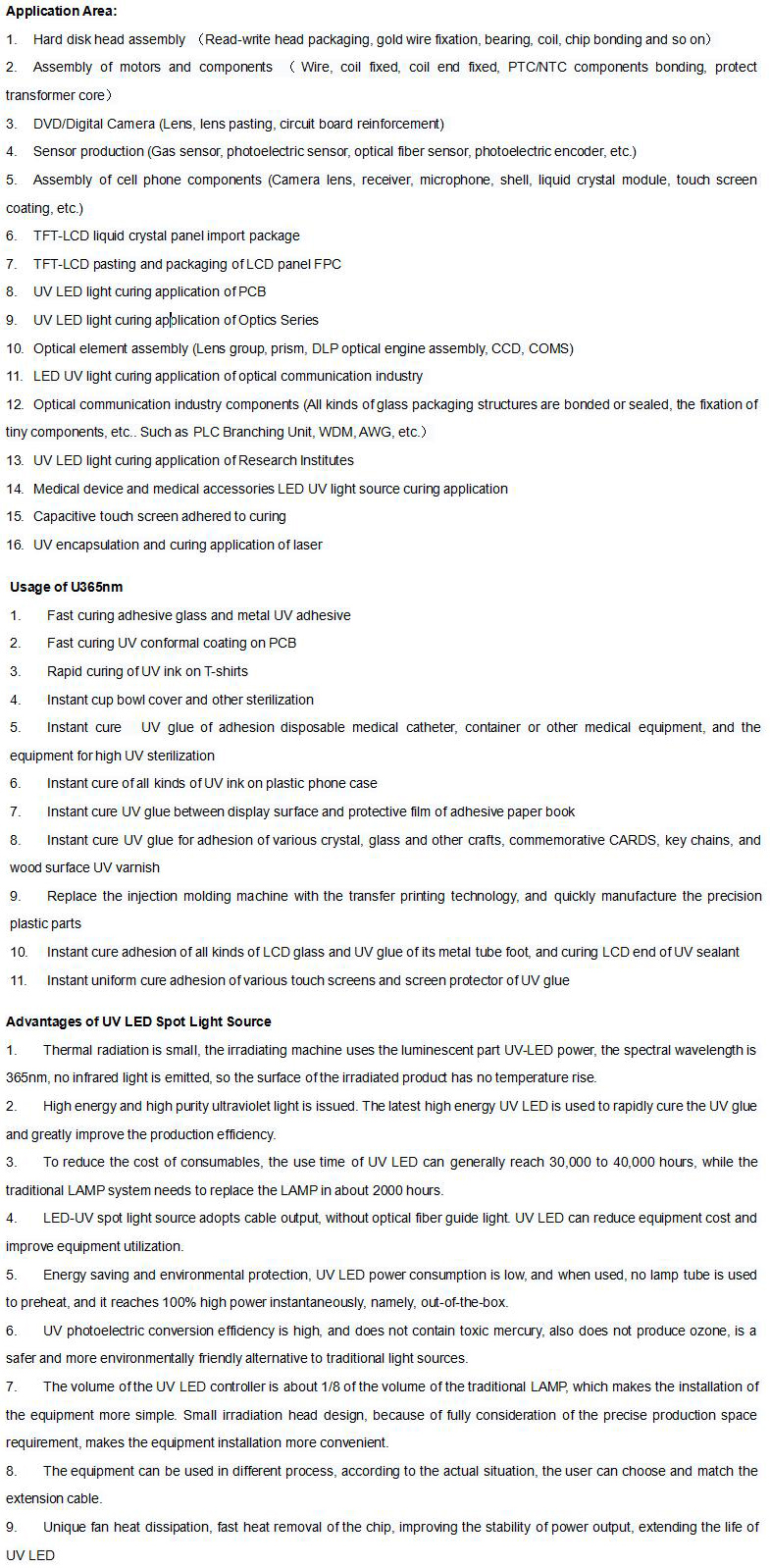

The advantages of Air Cooling Spot UV LED Lights for Fast Curing UV Glue are instant drying, fast curing speed,high production efficiency,save energy, etc..

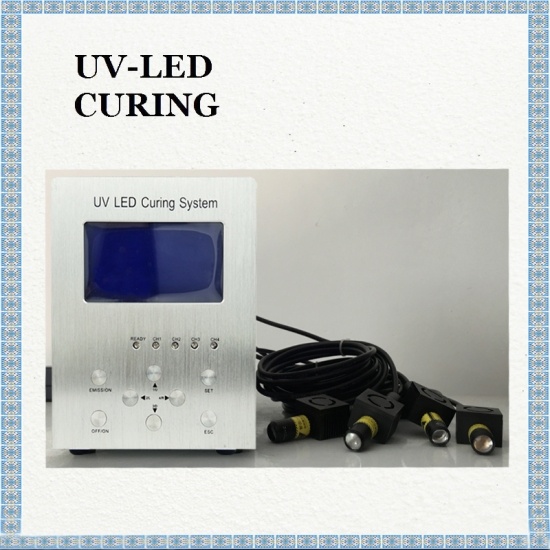

Control Panel Description

①LCD

② ④Direction Key for setting function operation and as switch key of 4 lights (CH1/CH2/CH3/CH4)

③SET

⑤ESC: Exit and store the data in the device

⑥OFF/ON

⑦Function Light: when you are setting, the light is flickering.

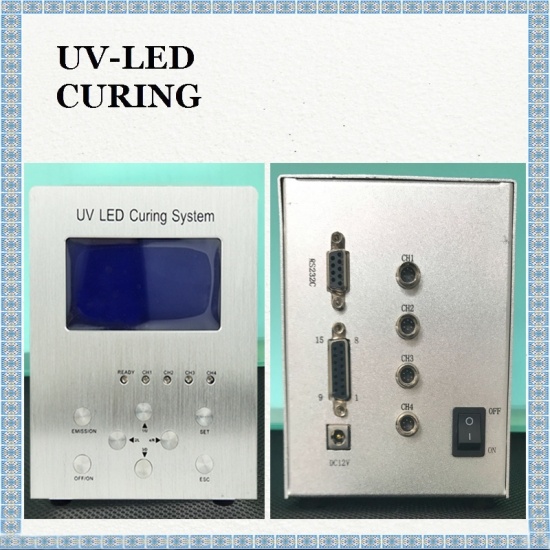

The Back Panel Description

①RS232 Connector

②Foot-switch Jack

③Electrical Socket Outlet

④THE Lights Connector⑤Power Switch


UV Spot LED


Usage of UV Curing Machine

Preparation for startup.Before using this device, please connect the foot switch, irradiation head and power cord as required, and note that the irradiation head cannot turn on the power switch to the person.Definition of pedal switch wiring: GND common point, (CH1/CH2/CH3/CH4/ separately controlled, CH overall control,) do not insert and pull hard when the irradiating head is inserted, just insert it by rotating to find the correct direction.Hold the shrapnel at the terminal connector of the irradiating head.


Irradiation

Exposure Mode : compare pages after startup,

CH1    100%A     10.0s

Normal exposure mode


CH1    100%M     10.0s

Normal exposure mode


CH1    100%p      10.0s

Normal exposure mode



Parameters

Press the SET key (READY lamp turns red) to enter the setting page. SET key ACTS as the cursor movement key and sets brightness percentage and time data through the direction key up and down. After setting, press the ESC key to save and exit.


Note: when the time is set to 0 seconds, the light source enters the normal lighting state.The foot pedal is pressed to light the lamp, loosen to put out the lamp.Select up and down key (1/U,2/L,3/D,4/R), press down and the LED light will turn on.Press again and turn off the LED.Total open can be performed by EMISSION.


Channel Controlling

1. Push the Key: using direction keys of panel for each channel

2. Pedal Mode: after connecting with pedal and through the PULSE setting up.

In order to reach high limit compatibility, Foot-Switch connector can connect with Foot-Switch, as well as PLC, MCU, Supervisory Computer of I/O. The signal of low -level output voltage continues more than 50ms.

3. Serial Port

In addition, the machine will provide RS232 Serial Port, though RS232 connector of the back panel.

The form:19200 Baud Rate, DB 8, No Check Position, Stop Bit 1

The Order: Ln xF (Ln:Zone Bit   Data Bits  F:End Bit)

L0 0F              /*---CH1 Working--- 0: External control and manual control  1: Timing working -----*/

L1 100F          /*---CH1 Irradiating Power  100: 100% power work  ---------------------*/

L2  100F        /*----CH1 Timing time set in regular working mode: 0.1~99999s-------*/



L3 0F              /*---CH2 Working--- 0: External control and manual control  1: Timing working -----*/

L4 100F          /*---CH2 Irradiating Power  100: 100% power work  ---------------------*/

L5  100F        /*----CH2 Timing time set in regular working mode: 0.1~99999s-------*/



L6 0F              /*---CH3 Working--- 0: External control and manual control  1: Timing working -----*/

L7 100F          /*---CH3 Irradiating Power  100: 100% power work  ---------------------*/

L8  100F        /*----CH3 Timing time set in regular working mode: 0.1~99999s-------*/



L9 0F              /*---CH4 Working--- 0: External control and manual control  1: Timing working -----*/

LA 100F          /*---CH4 Irradiating Power  100: 100% power work  ---------------------*/

LB  100F        /*----CH4 Timing time set in regular working mode: 0.1~99999s-------*/



LC 0F              /*---CH5 Working--- 0: External control and manual control  1: Timing working -----*/

LD 100F          /*---CH5 Irradiating Power  100: 100% power work  ---------------------*/

LE  100F        /*----CH5 Timing time set in regular working mode: 0.1~99999s-------*/


Specification

Name

UV LED Spot Light Source

Type

DSX-UVP60

Wavelength

365nm

UV Irradiation head

1-4

UV Irradiation Mode

Light SpotΦ3-Φ15mm90°light side irradiation or linearlight spot

Irradiation Distance

According to light spot of

Operation Mode

AUTO   MANU   PULSE

Power

0-100%

Light Intensity

9900mW/cm2

Cooling Method

Pure Aluminum Shell  Natural Cooling  Fan Cooling

Supply Voltage

7.5-36VDC

Power Consumption

50VA

Ambient Temperature

+5- +40℃

Ambient Humidity

20-60%

Size

L: 166mm   W: 100mm   H: 138mm

Weight

2.5kg


Irradiation Parameter

Cooling Method: Air Cooling

Line Length: 1.5-2m

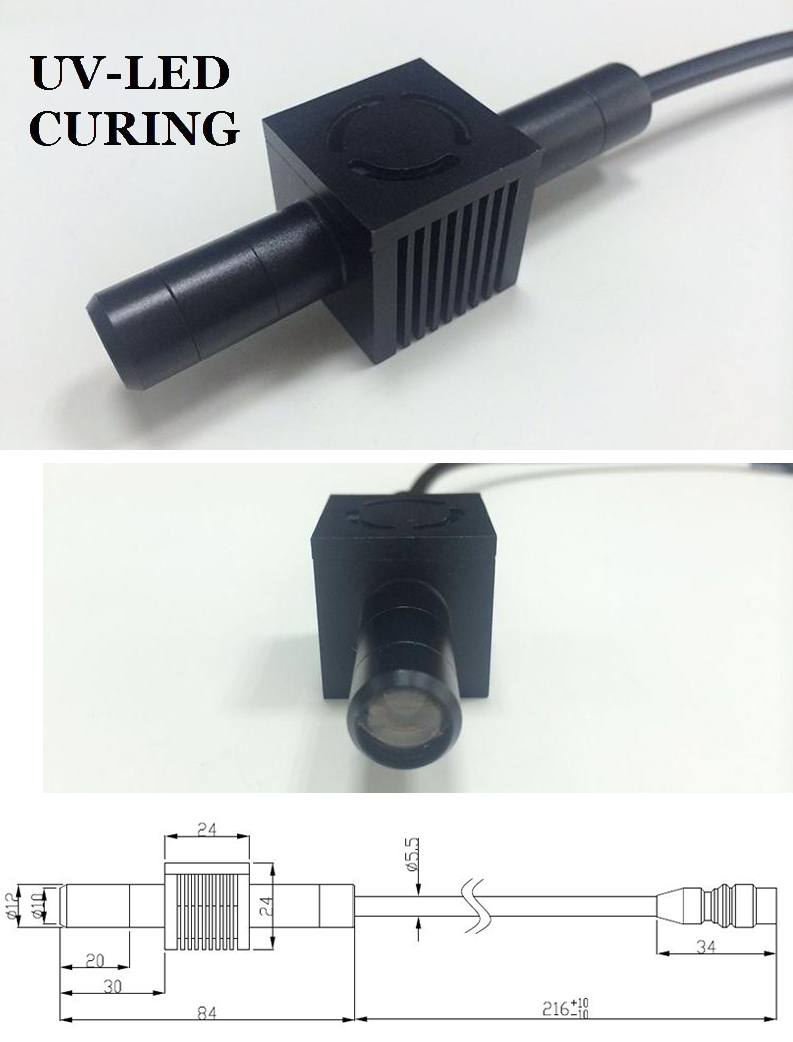

Irradiation Head


Light Spot Size

Size: 12mm external diameter

Thread: M11*0.75

1.Round Spot: φ1.5mm,φ3mm,φ4mm,φ5mm,φ6mm,φ8mm,φ10mm,φ12mm,φ15mm,φ20mm

2.Direct Rectangular Light Spot:: 3*12mm,4*16mm,5*20mm

3.90°a lens of side light (φ3mm, φ4mm,φ6mm,φ8mm, round spot)

Multiple lenses are selected for different spots. When changing, twist the lens of the inscribed part.

Shipment standard with one, can be multiple choice, optional extra.

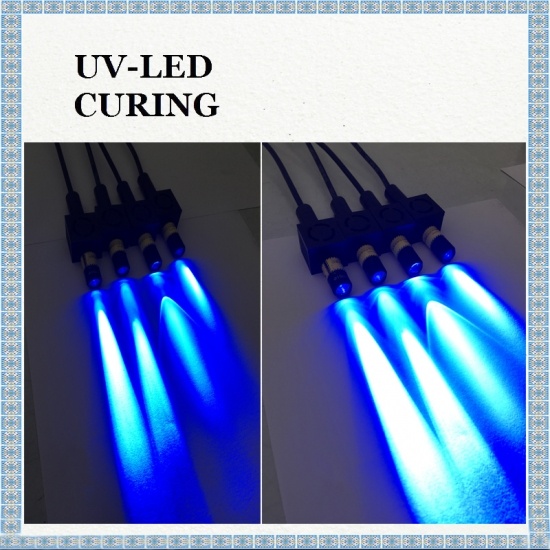

Light Spot UV LED


Light of the Rectangular Lens

UV LED Lamp


The size of different spots can affect the irradiation intensity. The smaller the light spot is, the higher the irradiation intensity is.

different size spots LED


Caution

1. Package and Transport

When transporting equipment, use random packing materials. Any damage caused by improper packing equipment is not not under warranty.

2. Daily Use and Maintain

LED irradiation head is needed be cleaned regularly. Please use soft buckskin, lens paper and alcohol to clean, ensuring the irradiation intensity and good heat dissipation.

Cleaning the controller regularly. Please wipe with a little alcohol with a cleaning tool. In order to protect the surface of facility, dont use the volatile liquid or having ammonium hydroxide ingredient to clean (diluent or benzene, etc.).

Attention:

Please do no unauthorized remove the controller and UV LED irradiation head, leading the product to work abnormally.
