Portable UV Curing System UV Curing Pen Point Contact Switch USB Connector 365nm 395nm Portable UV Curing System UV Curing Pen Point Contact Switch USB Connector 365nm 395nm Portable UV Curing System UV Curing Pen Point Contact Switch USB Connector 365nm 395nm Portable UV Curing System UV Curing Pen Point Contact Switch USB Connector 365nm 395nm Portable UV Curing System UV Curing Pen Point Contact Switch USB Connector 365nm 395nm

Portable UV Curing System UV Curing Pen Point Contact Switch USB Connector 365nm 395nm

UV Spot Light Source UV Curing Pen is easy to handle, convenient to carry. Its wavelength has 365nm and 395nm.


  • model no. :

    UV LED Spot Curing Light Source Pen
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
Product Details

UV Curing Pen is popular with the public. But most of customers choose our product. Not only of the quality, what's the most  important, our product, UV Spot Light Source UV Curing Pen Point Contact Switch USB Connector 365nm 395nm, is ultra high strength, extra-long life, no thermal radiation, unique optical path design, maximizing the utilization efficiency of light, strong stability, etc..In addation, the product is equipped with independent control system with no host. Each station can set parameters independently and is very portable.


UV LED Spot Pen

Advantage

1.Wavelength: 365nm, 395nm, etc.

2.Convenient to carry, easy to use, more efficient

3.Irradiation head can be offered in different specifications

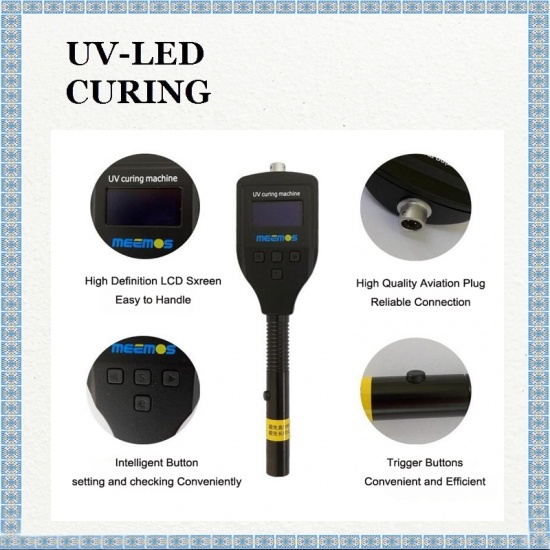

4.High Definition LCD Screen, simple and convenient operation

5.Intensity and time of irradiation can be set by the use case

6.Ultra high strength, extra-long life, no thermal radiation

7.According to the use case, two modes of control, program and point movement can be chosen

8.Unique optical path design, maximizing the utilization efficiency of light, strong stability


UV Curing Pen Point Contact

Specification of Instantaneous Curing UV Glue Pen :

Type

RF-HHT

Display Mode and Content

OLED, Irradiation Time, Irradiation Intensity

Function

MANU, AUTO

Control

Trigger Buttons

Wavelength

365nm, 395nm

Cable Length

1m, 2m

Optical Power

1100mW/cm

Input

AC 220V 50Hz

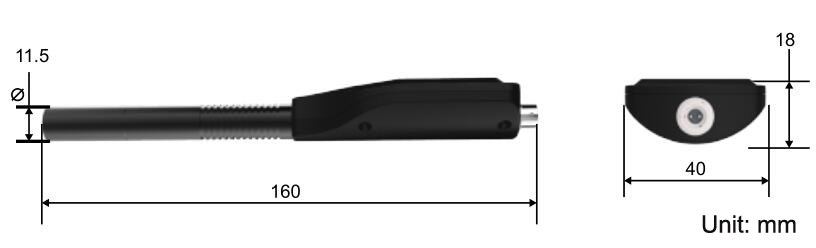

Size

W40mm*H18mm*L160mm

Weigh

100g  DC 5V 2A


UV LED Spot Curing Light Source Pen


Caution of Adjustable Time LED Curing Light :

1. Package and Transport

When transporting equipment, use random packing materials. Any damage caused by improper packing equipment is not not under warranty.

2. Daily Use and Maintain

LED irradiation head is needed be cleaned regularly. Please use soft buckskin, lens paper and alcohol to clean, ensuring the irradiation intensity and good heat dissipation.

Cleaning the controller regularly. Please wipe with a little alcohol with a cleaning tool. In order to protect the surface of facility, dont use the volatile liquid or having ammonium hydroxide ingredient to clean (diluent or benzene, etc.).


Attention of Spot UV Light Curing System :

Please do no unauthorized remove the controller and UV LED irradiation head, leading the product to work abnormally.
