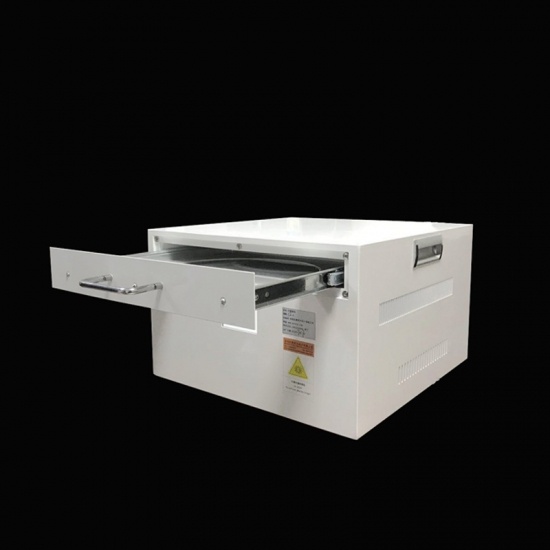

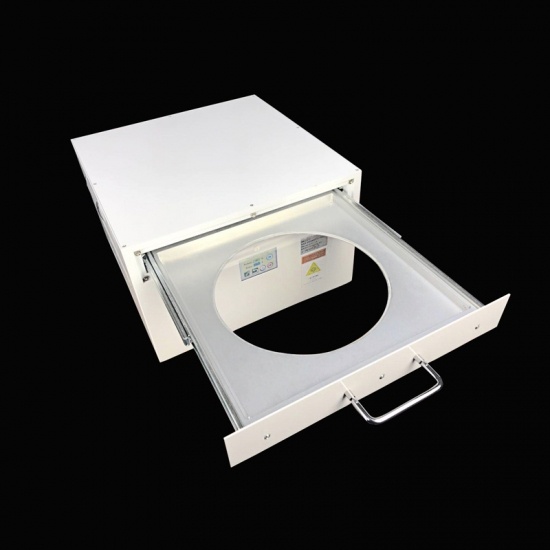

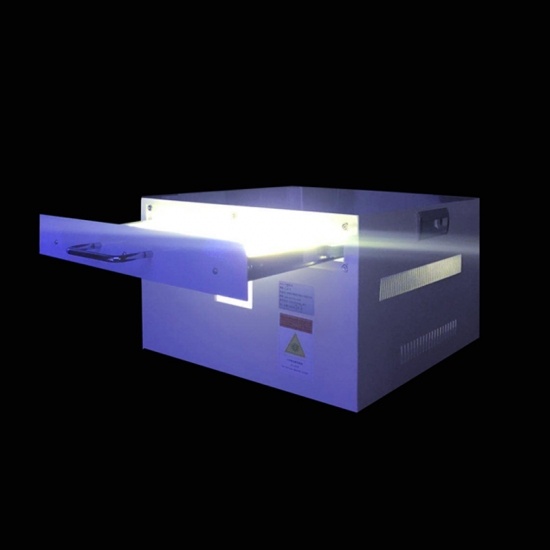

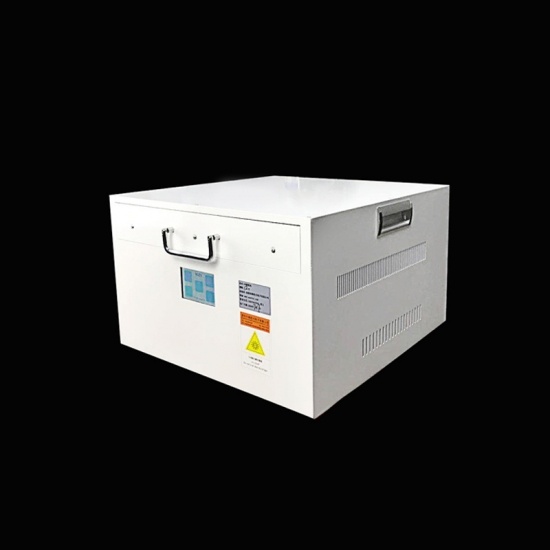

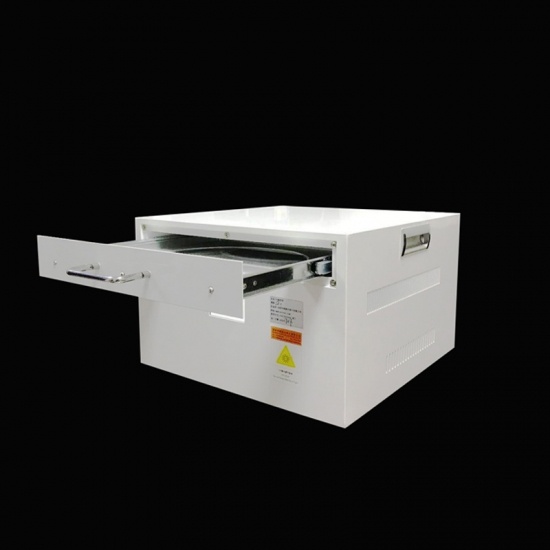

UV LED Light Curing Systems Solidify 8 inches UV Wafer Semiconductor

UV LED Light Curing Systems Solidify 8 inches UV Wafer Semiconductor

Compact, desktop profile accommodates up to 8’’ grip ring or film frame-mounted wafer.

model no. :
UV Tape Exposure Curing Systems
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% Before Shipment
original region :
CHINA

contact now

Product Details

Semi-Automatic UV LED Curing Equipment System is our newest product for highly efficient and cost-effective wafer curing. LED light-curing technology offers significant benefits over conventional lamp-based UV curing systems including lower operating costs and instant start-up for on-demand curing.

The DSX-UV-Tape-8 Series offers the same uniformity of UV exposure and fast curing times as semiautomatic high-end UV curing systems and generates a cool, low-temperature UV-A 365nm curing process while eliminating both ozone and mercury safety risks.

Semi-Automatic Ultraviolet Curing Systems Curing UV Film

Parameters :			Type :	DSX-UV-Tape-8
Outside dimension :	459mm×440mm×286mm, can be customized	Drawer dimension :	33033015 mm, can be customized	Lighting area :	Φ150mm, Φ200mm, Φ300mm
Wavelength	365nm-415nm selectable, 365nm convention	Peptization time	Depending on the characteristics of UV tape, minimum 5s	Material / Weight	White sheet metal / 30KG
Rated voltage	AC 110/220V	Rated power	350-900W	Frequency	50/60 Hz
Cooling method	Air cooling	Optical power	1000W	Illuminance	>1000mW/cm2
Film type	UV Tape/UV film/UV wafer	Irradiation intensity	20~100% adjustable	Timer	Time adjustable, unit : s, seconds
Thickness of the film	0.15-3 mm	Illuminate way	Bottom-up irradiation	Control	Touch screen
Function	Adjust time, intensity	Size of wafer	6” 8” 10” 12‘’ selectable	Fixture Parts	5.9 inches, can be customized
Display / Language	Touch screen / English	Total Weight	6.5KG	Manufacturer	Shenzhen Deshengxing Electronics Co., Ltd.

Semi-conductor LED UV Curing Systems Curing Semiconductor

Characteristics of UV Tape Curing Machine :

1.Small body, suitable for 6/8/10/12 inches irradiation

2.Adjustable time and brightness, touch screen operation, simple and convenient

3.Bottom-up irradiation, easy to place the wafer

4.LED cold light source, environmental protection products, with low temperature, uniform exposure, compact structure, small energy consumption, is the ideal model in semiconductor industry, and low temperature no damage to thermally sensitive materials.

5.The service life is more than 10 times longer than ordinary mercury lamp, continuous service life 15000-30000 hours.

6.Zero maintenance cost, no need to replace the illuminant parts for long-term work.

7.Closed light source design, no UV side leakage, no damage to the human body

High Power LED UV Curing System for UV Wafer Manufacturer
