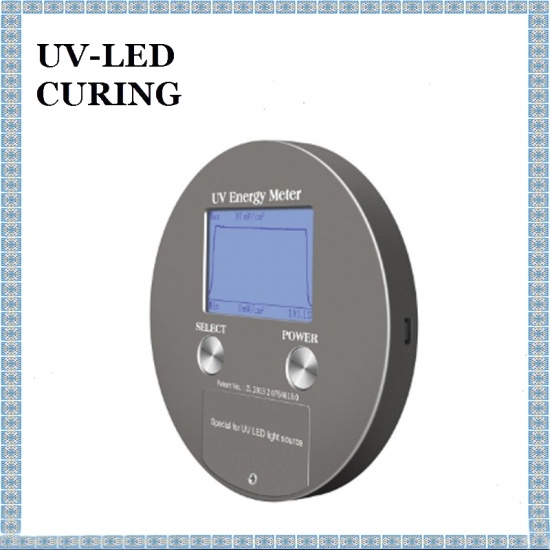

UV Energy Meter UV Power Puck for 340nm to 420nm UV LED UV Curing

UV Energy Meter UV Power Puck is for 340nm to 420nm, for testing UV LED lamp, testing 365nm, 385nm, 395nm and other wavelength UV LED light.

  • model no. :

    340nm to 420nm UV LED Meter
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
Product Details

UV LED Energy Meter is the world’s first UV energy meter for testing UV LED lamp, which the range of spectrum is 340~420nm. It can test 365nm, 385nm, 395nm and other wavelength UV LED light, is the first choice for UV curing energy meter.


The first UV energy meter is specialized in UV LED light source testing.

The first wide range UV energy meter with a range of 20 W/cm2.

The first UV energy meter is applicable to the range of wide spectrum (354~420 nm).

The first UV energy meter can measure temperature and power, and also display process curves at the same time.


340nm to 420nm UV LED Meter


Parameters :

1.Equipment : UV LED light intensity, energy, temperature measurement.

2.The range of spectrum : 340~420 nm, the instrument is calibrated to a 395 nm light source.

3.The range of power measurement : 0~20000 mW/cm2

4.Power resolution : 1 mW/cm2

5.The range of energy measurement : 0~999999 mJ/cm2

6.The accuracy of energy measurement : ± 10% , ± 5% typical

7.The range of temperature measurement : -55°C--- +125°C

8.Sampling rate : 2048 each second

9.Power data storage interval : 32 each second

10.Temperature data storage interval : 16 each second

11.Record the cycle : 32 minutes

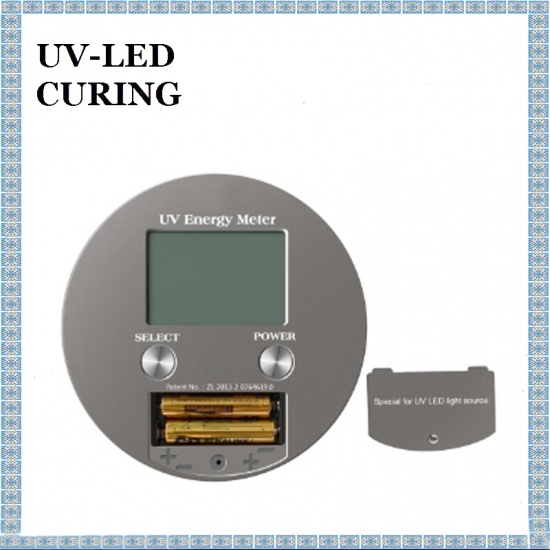

12.Power supply : 2 AAA alkaline dry batteries

13.Display : 240*160 lattice LED

14.Size : diameter 120mm * thickness 13mm

15.Weight : 327g


Applications :

Radiometer UV Intensity Meter


Characteristics :

1.Real intelligent UV energy meter is with large liquid display temperature and strength curves directly.

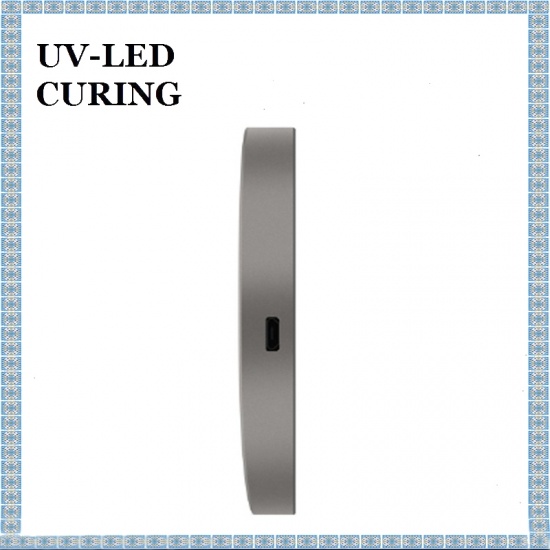

2.USB interface, computer software can read the detailed record data, curve analysis and print output test report.

3.High precision and fast response temperature detector, real dynamic measurement of the actual temperature in the curing machine.

4.Built-in heat insulator, high temperature resistant design, can run in the environment of 100 degrees Celsius for a long time.

5.The instrument has a built-in memory of large capacity and can record up to 60,000 power data and 3,800 temperature data.

6.The stored data will not be lost when power is lost, and the last test data will be displayed automatically when starting up. The test data can only be deleted manually.

7.High accuracy, passed and obtained the inspection certificate of many authoritative testing institutes.

8.Built-in timer, can accurately record the length of UV curing time.
