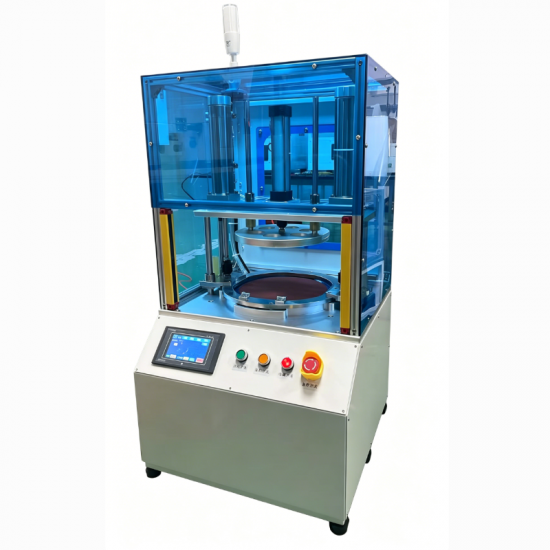

Semi Automatic Wafer Tape Expander for 10inch Frame

This semi-automatic wafer expanding machine (MODEL :DSX26-052) is designed to expand die grains mounted on a 10-inch Frame ring and transfer them onto an 8-inch Frame ring.

model no. :
DSX26-052
Brand:
DSXUV
port of dispatch :
SHENZHEN
Payment :
TT100%
original region :
CHINA
Lead Time :
15DAYS

contact now

Product Details

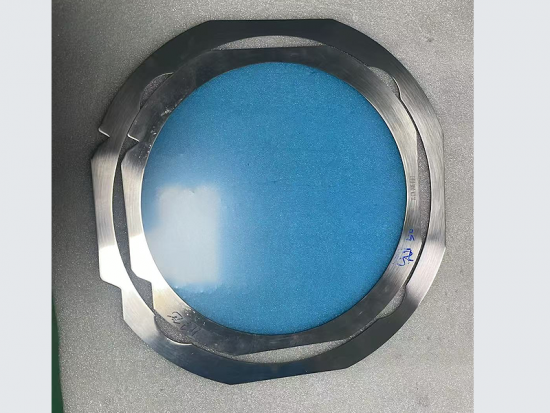

This semi-automatic wafer expanding machine (MODEL :DSX26-052) is designed to expand die grains mounted on a 10-inch Frame ring and transfer them onto an 8-inch Frame ring.

Equipment Technical Parameters:

Name	Semi-automati Wafer Expansion Machine	Model	DSXUV-WE8
Size	L572W5631044mm	Wafer Size	6”
Frame Size	10”to 8”	POWER	＜400W
Rated voltage	AC 220V	frequency	50/60HZ
Worktable elevation height	1-25mm	PRESSURE	0.5-0.8Mpa
Film Type	Blue film/White film/UV TAPE	TAPE thickness	0.05-0.2mm
Film cutting method	Circular cutter automatically cuts the film	WARRANTY	No human damage incurred; full warranty valid for one year.
Weight	About 85kg	PLC	The touch screen combines buttons to enable manual/semi-automatic operation
Diffusion enhancement function	Manual loading/unloading, automatic lifting, film expansion, and automatic cutting of waste film outside the small rings	Heating temperature of the worktable	0-120℃

Process requirements for the Expander machine equipment

NO.	CONTENT	PARAMETER
1	Expanded tape size	The maximum expandable membrane size is 6 inches.
2	Diffusion membrane quality	No residual film, no broken membrane; smear expansion accuracy: ±0.1 mm
3	X and Y direction deviations of the diffuser spreading machine	+-0.05mmmm(Deviation in wafer placement during film removal）
4	Frame can be fixed	Equipped with an iron ring for positioning pins; no deliberate disassembly is required.
5	The work table can be heated	The peripheral expansion of the tape is uniform and moderate.
6	Function	The heating temperature, expansion time, and return speed are all adjustable.
7	Characteristic	The worktable does not compress the wafer during its lifting process.

Advantages & Features

1,The stretching height and stretching speed can be digitally set via the touch screen.
2,The chuck is equipped with constant temperature heating function to improve film ductility.
3,The spacing between dies can be adjusted by changing the lifting height of the working plate.
4,Optional top-mounted circular cutting function for automatic film cutting.
5,5-inch touch screen displays parameters, operation procedures and fault alarm prompts.
6,The film stretching process is realized by motor lifting and cylinder lifting to ensure consistent stretching effect.
7,The equipment will stop immediately if the grating sensor is blocked during automatic operation; operation can 8,only resume after clearing the alarm.
