Nitrogen Type Semiautomatic 8inch UV Tape UV LED Curing Systems Nitrogen Type Semiautomatic 8inch UV Tape UV LED Curing Systems Nitrogen Type Semiautomatic 8inch UV Tape UV LED Curing Systems Nitrogen Type Semiautomatic 8inch UV Tape UV LED Curing Systems Nitrogen Type Semiautomatic 8inch UV Tape UV LED Curing Systems Nitrogen Type Semiautomatic 8inch UV Tape UV LED Curing Systems

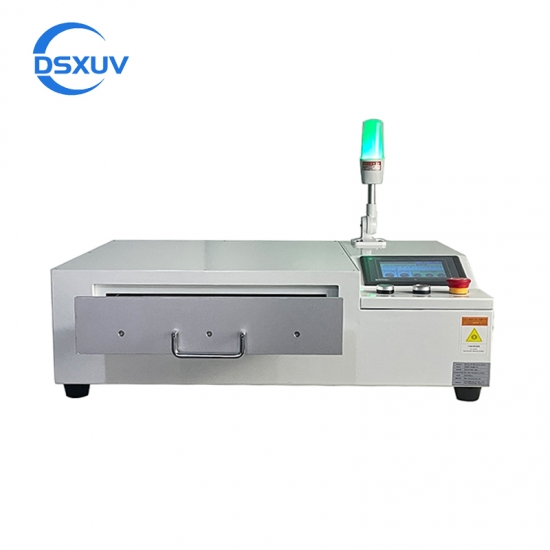

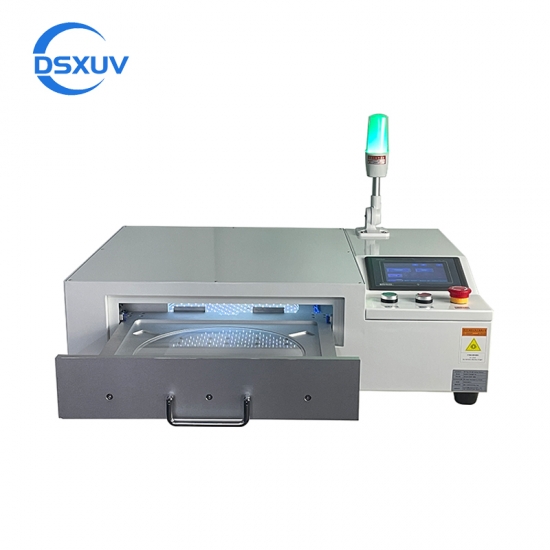

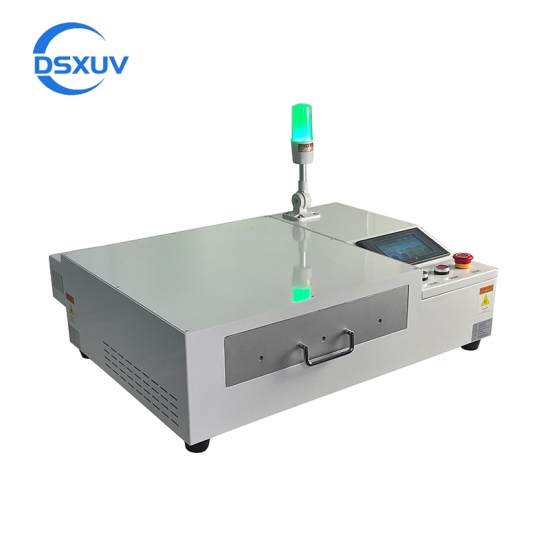

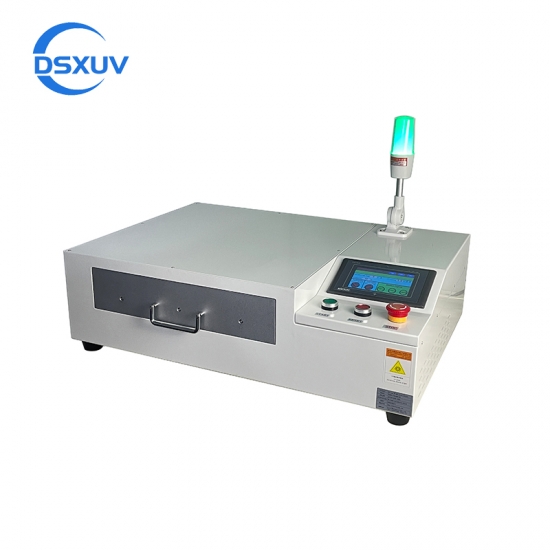

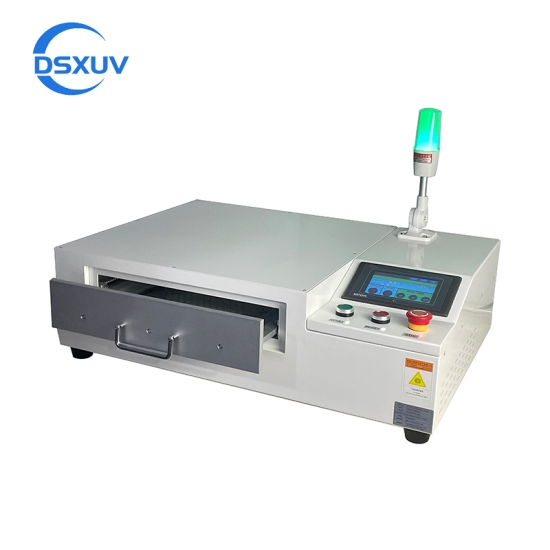

Nitrogen Type Semiautomatic 8inch UV Tape UV LED Curing Systems

8inch UV Tape UV LED Curing Systems is a device for removing the UV tape of wafer.

  • model no. :

    UV LED Curing Systems
  • Brand:

    DSXUV
  • port of dispatch :

    Shenzhen
  • Payment :

    T/T 100% before shipment
  • original region :

    China
Product Details

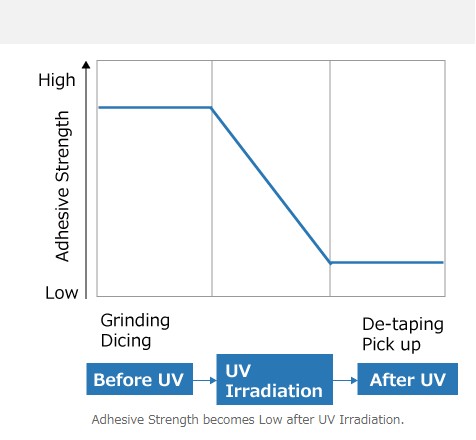

UV Tape UV LED Curing Systems is a device for removing the UV tape of wafer. UV tape is often used to protect the wafer surface from contamination or damage, but it needs to be removed before certain process steps. UV Tape UV LED Curing Systems uses UV LED radiation to reduce the viscosity of UV tape, o that it becomes easy to peel.

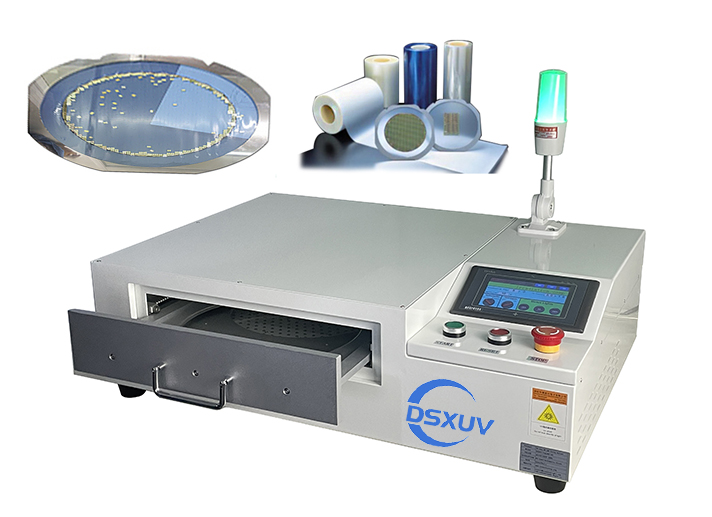

Reduce UV Film Viscidity Device


Parameters:

Model

DSXUV-TapeN2-A8

Manufacturer

Shenzhen Deshengxing Electronics Co., Ltd.

Outside Dimension

L713*W626*H471mm

Size for Wafer

8inch and below

Drawer

Capacity

L310*W304*H40mm

Lighting Area

Φ254mm

Wavelength

UVLED 365nm

Total Power

1200W

Intensity

600mW/cm2 EIT

Input

100-240V AC 50-60HZ

Weight

White Sheel Metal

GW: 85kg

Cooling

Fan Cooling

Irradiation

From Bottom to Top

Display

Touch screen, Chinese/English


Characteristics:

1. This UV Tape UV LED Curing Systems is used to reduce the viscosity of the UV tape used in the cutting process until it is eliminated.

2. Compared with the light source composed of mercury lamps, LED cold light source can achieve more stable and uniform irradiation.

3. LED cold light source used in the UV Tape UV LED Curing Systems is a 180 degree flat shooting products.

4. LED cold light source direct rang: the whole 8inch disco circular wafer frame ring.

5. Suitable for 8inch and below wafer

6. Production capacity: 60 wafers/hour

7. Use LCD touch screen operation

8. Door opening, the LED light is OFF, which can protect the human body.

9.The life of LED cold light source is ten times that of general mercury lamp

10. LED cold light source can work continuously for at least 3000h (frequent startup has no side effects on clod light source)

11. LED cold light sources are generally not easy to damage

12. With fault warning, alarm and other functions

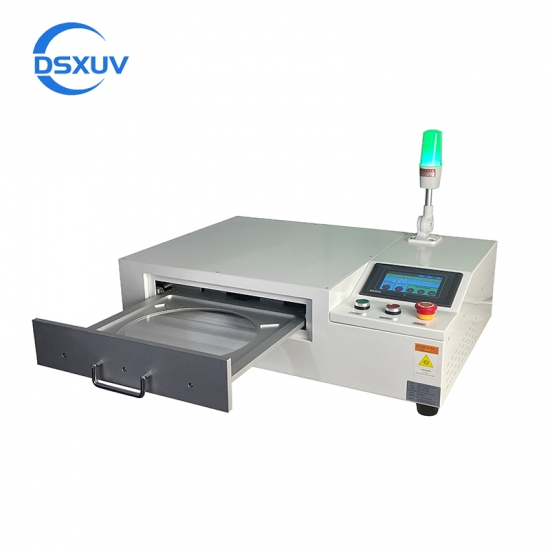

Nitrogen Treatment UV Film Curing Systems
