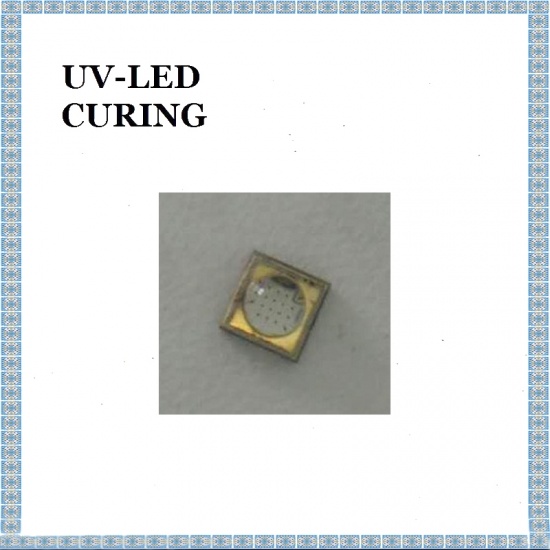

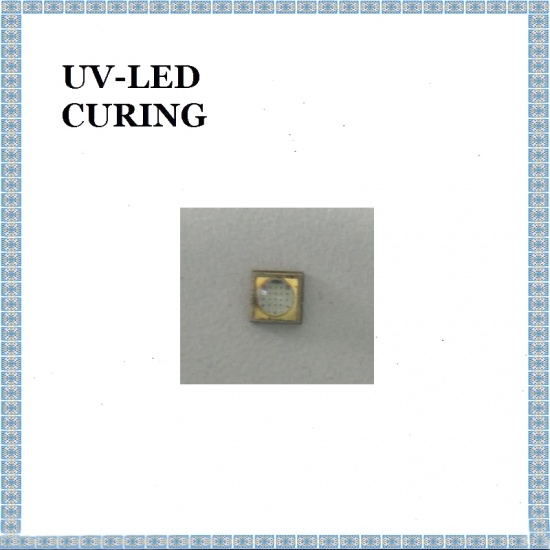

3W UV LED Lamp 60 Degree Quartz Glass Lens 45 Degree Glass Lens 365nm 395nm 405nm

3W 365nm 375nm 385nm 395nm 405nm 410nm 415nm 420nm high power 3535 UV LED Lamp, 45 degree and 60 degree quartz glass lens 3535 size

Pure 3535 UV Light Source Features :

● CMH real inorganic package

● Dimension : 3.70mm×3.70mm×2.67mm

● Long operating life

● High reliability

● Superior ESD protection

● RoHS compliant

High Power Ultraviolet Lamp Applications :

● Fluorescent spectroscopy

● Sensors and monitors

● Bio-analysis/detection

● Phototherapy

● UV curing

● Printing

● Coating

3535 Ultraviolet Lamps Parameters :

Peak Wavelength : 360-420nm choosable

Radiant Flux : 1355-1641mW/cm2

Forward Voltage : 3.4-4.2V

Forward Current : 1200mA

View Angle : 45°, 60°

Notes:

*This Customized 3W 365nm UV LED  is designed to be reflow soldered on to a PCB. If dip soldered or hand soldered,We cannot guarantee its reliability.

*Reflow soldering must not be performed more than twice.

*Avoid rapid cooling. Ramp down the temperature gradually from the peak temperature.

*Nitrogen reflow soldering is recommended. Air flow soldering conditions can cause optical degradation,

caused by heat and/or atmosphere.

*Since the glass used in the encapsulating glass is fragile, do not press on the hermetic glass.

pressure can cause nicks, chip-outs, Sealant layer and deformation, and wire breaks, decreasing reliability

*Repairing should not be done after the LEDs have been soldered.

It should be confirmed beforehand whether the characteristics of the LEDs will or will not be damaged by repairing.

*The Die Heat Sink should be soldered to customer PCB. If it is difficult or impossible, use high heat-dissipating adhesive.

*When soldering, do not apply stress to the LED while the LED is hot.

*When using a pick and place machine, choose an appropriate nozzle for this product.

*When flux is used, it should be a halogen free flux. Ensure that the manufacturing process is not designed in a manner.

*Where the flux will come in contact with the LEDs.

*Make sure that there are no issues with the type and amount of solder that is being used.

CAUTIONS

1. Handling Precautions

● Do not handle the LEDs with bare hands as it will contaminate the LEDs surface and may

affect the optical characteristics.

● When handling the product with tweezers, be careful not to apply excessive force to the

glass. Otherwise, the glass can be cut, chipped, delaminate or deformed, causing wire-bond breaks and catastrophic failures.

■  Dropping the product may cause damage.

2. Electrostatic Discharge (ESD)

● The product are sensitive to static electricity or surge voltage. ESD can damage a die and

its reliability. When handling the products, the following measure against electrostatic dis-

charge are strongly recommended:

Eliminating wrist strap, ESD footwear, clothes, and floors

Grounded workstation equipment and tools

ESD table/shelf mat made of conductive materials

● Ensure that tools, jigs and machines that are being used are properly grounded and that

proper grounding techniques are used in work areas. For devices/equipment that mount the LEDs, protection against surge voltages should also be used.

● The customer is advised to check if the LEDs are damage by ESD

When performing the characteristics inspection of the LEDs in the application.

Damage can be detected with a forward voltage measurement at low current(≤1mA).

3. Eye Safety

● Please proceed with caution when handling any UVLEDs driven at low or high current.

Since UV light can be harmful to eyes, do Not look directly into the UV light, even through an optical instrument.

●  UV protective glasses are required to use in order to avoid damage by UV light in case of viewing UV light directly.
