model no. :
265nm UVC Ultraviolet LEDsBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/T 100% Before Shipmentoriginal region :

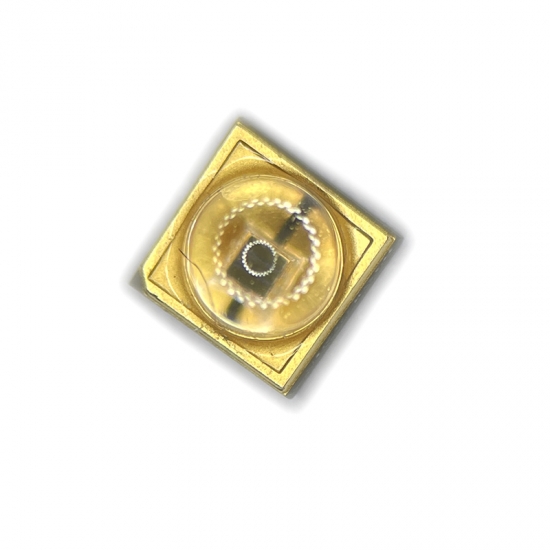

CHINA265nm UVC Ultraviolet Lights for Sterilization is silicone lens, with the highest sterilization efficiency, widely used in life, medical treatment and industry.
Parameters of High Power UV Chips for Disinfection :
eramic and quartz package
Size : L*W*H 3.8*3.8*1.4 mm
Forward current : up to 150mA
Radiant power : 10mW at 150mA
Lead / terminal finish : gold plated (AU)
Wavelength : 265nm-275nm
Luminous power : 10mW
Electricity : 150mA
Voltage : 5-7V
Angle : 120°
Applications of High Efficiency 265nm UVC UV LED for Disinfection :
For detailed instructions, please click here to download : UVC 265nm UV LED
Precautions for use : once welded, never return.
1.Do not directly touch or operate the surface of the silica gel lens, which may damage the internal circuit.
2.Do not stack PCB boards containing LED components. Applying to silicone lenses may cause damage.
3.Lamp beads bust be heat dissipation treatment in use, or it will cause serious damage to LED.
At present, the luminous efficiency of deep ultraviolet LED is less than 5%, and most of the electric energy is converted to heat energy. Heat dissipation must be done well in use, or it will burn out. Constant current drive is recommended.
