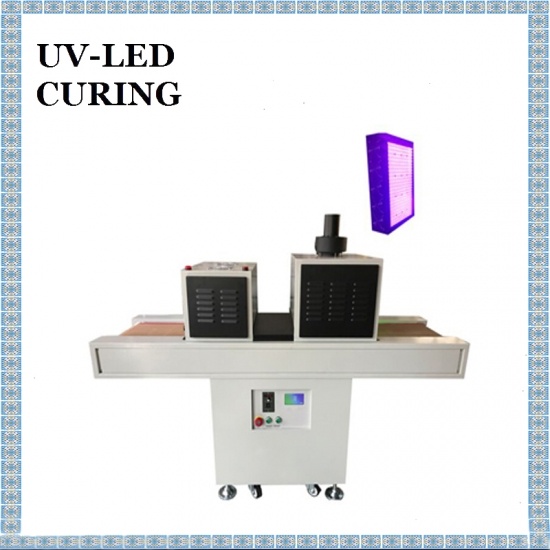

365nm UV LED Curing Machine with Mercury Lamp Integrated Curing Machine

UVLED curing machine, , low temperature, no ozone, no deep UV, low energy consumption, high efficiency.

UV LED+ mercury lamp integrated curing machine, built-in UVLED curing light source and low-power mercury lamp, perfect solution to dry surface problems, simple operation, energy saving.

Product Survey

DSX-CS-300x200-365 is a high-performance UV LED  curing system, the system includes the controller, UV LED irradiation head MERCURY lamp and cable. UVLED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the use of forced air cooling, the effective curing area of 200x300mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automated production line , and the mercury lamp is for the surface treatment of UV adhesive.

High performance UVLED surface light source curing system, the system mainly contains control system, UVLED head, high pressure mercury lamp and conveyor belt. The machine UV LED irradiation head adopts High-intensity UV LED, plus 1KW mercury lamp, UV spectrum wavelength is 365nm, 395nm, 405nme, etc., optional forced air cooling, effective curing area of 300X200mm, support external Signal input and trigger, can be used in semi-automatic or fully automatic production line, conveyor belt material Teflon, transmission bandwidth 300nm.

Specification

1, luminous body (effective irradiation width): can be customized;

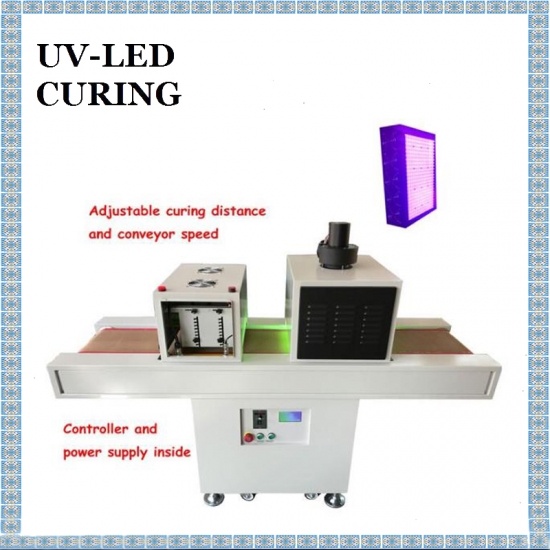

2, UV LED lights from the conveyor belt adjustable distance: 10-50mm;

3, UV LED lamp power density: 800mw / cm2; Mercury lamp: 1KW;

4, UV light intensity adjustable: 1% -100%;

5, Reflector: Aluminum reflector built-in imported reflective aluminum, high reflection efficiency, long service life;

6, the conveyor belt width: 300mm;

7, conveyor belt material: Teflon mesh belt or stainless steel mesh for optional;

8, Conveyor speed: 1-10 meters Promise adjustable;

9, LED lamp beads that is bright, without preheating, immediately begin curing work;

10, roller: surface knurling, to ensure smooth delivery;

11, the whole cooling method: air-cooled;

12, machine material: sheet metal;

13, machine appearance: white spray compute

14, the whole specification: 1500L * 580W * 100Hmm

15, power wiring: 220VAC 50HZ;

Parameter

1.Control systemSystem

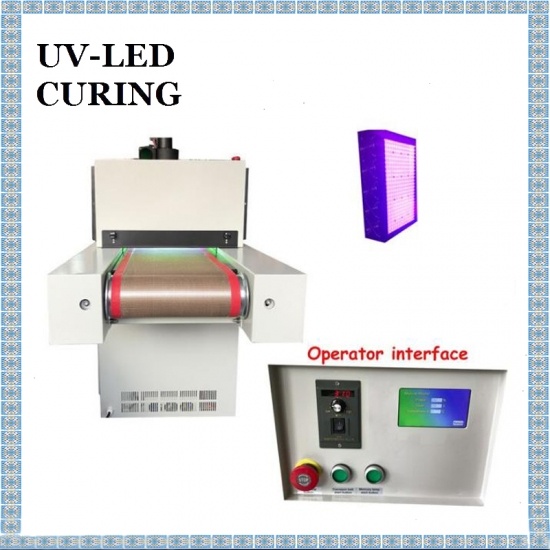

Panel display, touch operation, real-time monitoring of the working state of the head

 . Power 0-100% adjustable

 Temperature monitoring

 Infrared sensing control, working mode selection

 . Power consumption of the whole machine: 2200W

 The workers make electrical voltage: 220V 50HZ

 . Machine size: L1760*W581*H1152mm

2.UVLED head (DSX-S360-300X200-365)

 The wave length: 365 nm

Curing surface plot: 300x200mm

The electric power rate: 1080W

. Irradiation intensity of: 800mw / cm2 (irradiation 5mm height)

 Recommended illumination height: 10-100mm

3.High pressure mercury lamp . Main peak wavelength: 365nm

Lamp length: 300mm

The electric power rate: 1KW

. Irradiation intensity of: 33mW / cm
