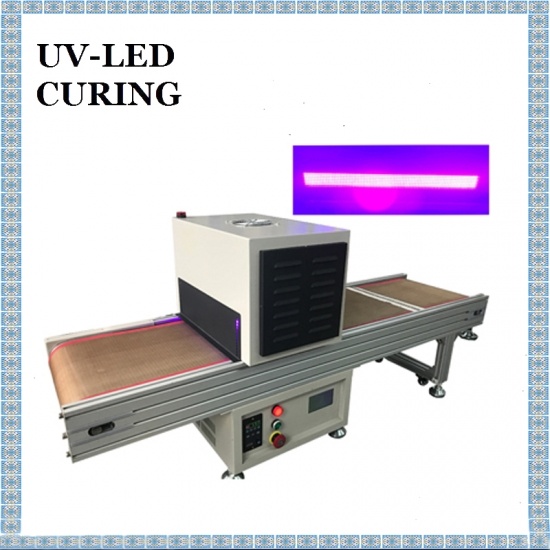

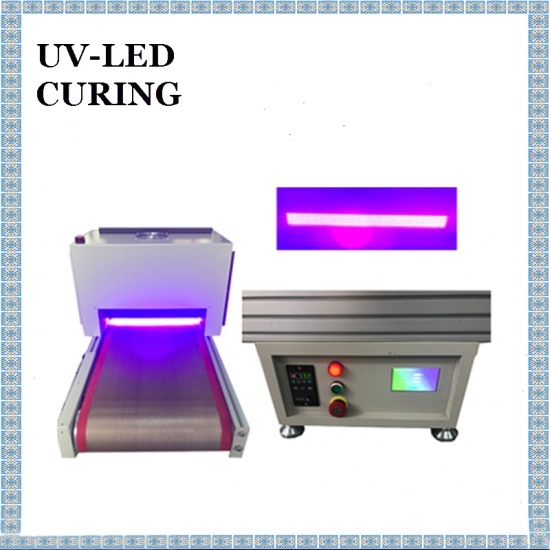

350X30mm Conveyor UV LED Curing Machine for Offset Printing 350X30mm Conveyor UV LED Curing Machine for Offset Printing

350X30mm Conveyor UV LED Curing Machine for Offset Printing

350X30mm Conveyor UV LED Curing Machine for Offset Printing replaces the traditional mercury lamp, low temperature, no ozone, no deep UV, low energy consumption, high efficiency.

  • model no. :

    350X30mm UV Conveyor
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
  • original region :

    CHINA
Product Details

350X30mm Conveyor UV LED Curing Machine for Offset Printing , replacing traditional mercury lamp, built-in UVLED curing light source, low temperature, no ozone, no deep ultraviolet, low energy consumption, high efficiency, no infrared radiation, cold light source, suitable for curing of various heat sensitive materials, infrared sensing Intelligent control, start and stop control on demand.



Specification Parameter

1.Control system:

  *panel display,touch opration, real-time

  *monitoring of head of the working state

  *intensity adjustable from 0-100%

  *temperature monitoring

  *infrared sensor control, work model optional

  *speed of conveyor:0-55m/min  adjustable

  *whole machine size:L1500W526H620mm


2.UV LED irradiation head (DSX-S528-30X350)

  *wavelength:395nm

  *curing area: 350x30mm

  *optic power:20w/cm2(10mm irradiation distance)

  *recommended height of irradiation:5-100mm

  *dimension:L390W80H54mm

  *cooling method: water cooling


3.Water cooler (KLD-LC16-FCL/0Z0)

Power supply: 220V/50HZ

. Cooling capacity: 1600W

. Total power; 0.8KW

.Refrigerant: R22




Product Overview

DSX-SL528-350X30-395 is a UV adhesive, UV oil. High-performance UV LED surface light source curing system with ink curing design , the system. Mainly including control system, UV LED head, water cooler and conveyor belt. The machine's UVLED head is imported with high-intensity UV LED, UV Spectral wavelength is 395nm, using forced water cooling to effectively cure the surface. The product is 350X30mm and supports external signal input and trigger.Dynamic or fully automatic production line, conveyor belt material Teflon, conveyor belt 300mm wide.

DSX-SL528-30X350 is a high-performance UV LED  curing system, the system includes the controller, UV LED irradiation head and cable. UV LED head with imported high-intensity UV LED integrated UV spectral wavelength of 365nm, 385nm, 395nm, 405nm, the use of water cooling, the effective curing area of 350x30mm, support for external signal input and trigger, can be equipped with semi-automatic or fully automated production line, also can be used for printing, such as flexo printing and offset printing.


UV Conveyor for Offset Printing


Belt Conveyor UV Oven for Offset Printing
