3535 LED 3 Pin Copper Substrate for Heat Dissipation

3535 LED 3 Pin Copper Substrate for Heat Dissipation

3535 LED 3 Pin Copper Substrate for Heat Dissipation

3535 LED 3 Pin Copper Substrate for Heat Dissipation

3535 LED 3 Pin Copper Substrate for Heat Dissipation

3535 LED 3 Pin Copper Substrate for Heat Dissipation

All red-copper, Copper Basal Plate often used for SVC LED or other brand 3535 size 3-pin LED

model no. :
3535 LED Copper PCB
Brand:
DSXUV
port of dispatch :
Shenzhen
Payment :
T/T 100% before shipment
original region :
China

contact now

Product Details

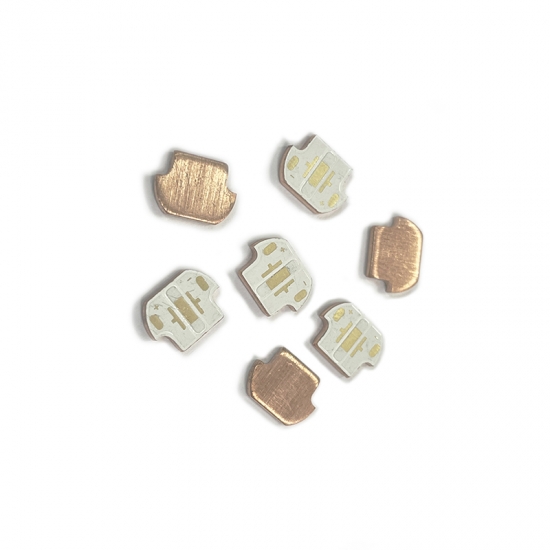

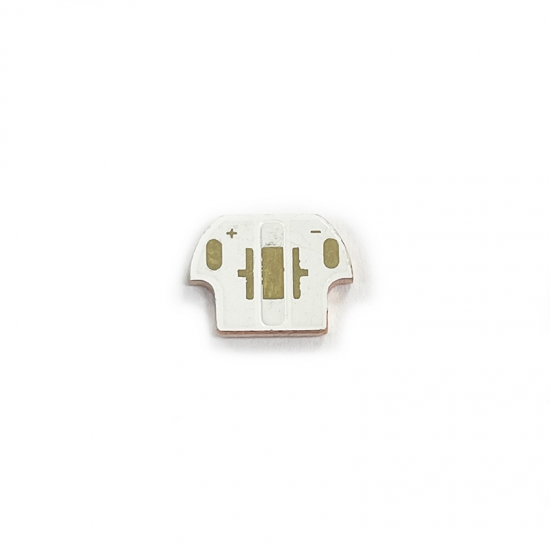

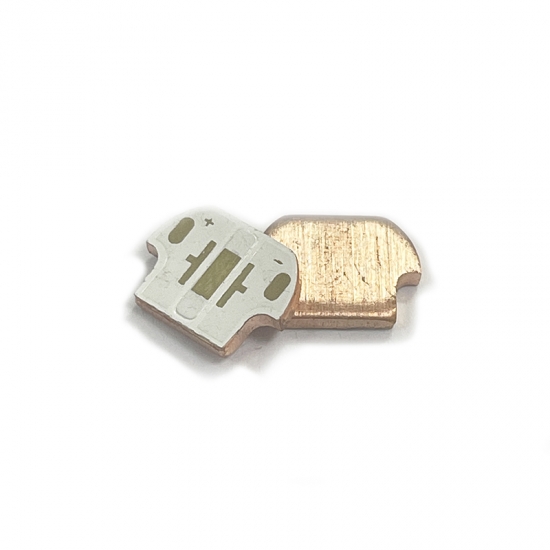

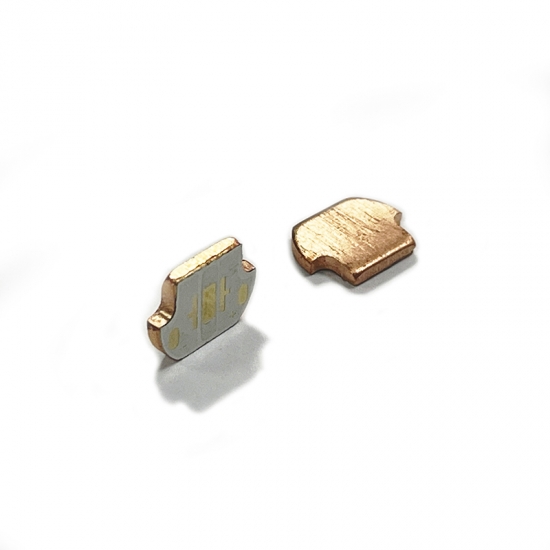

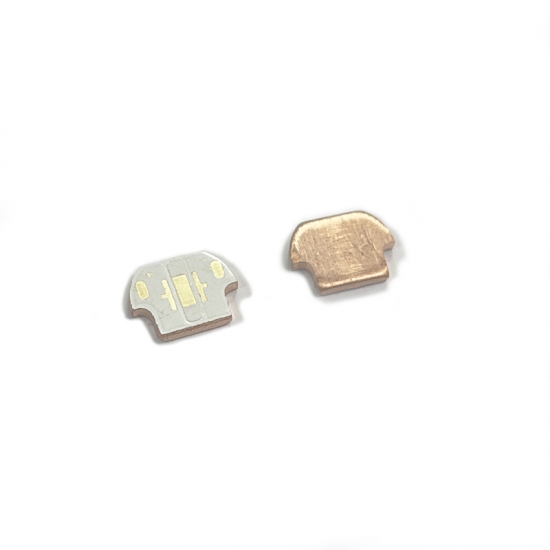

All red-copper, 3pin Cooper Base Board often used for SVC LED or other brand 3535 size 3-pin LED

Parameters:

Name: 3535 3-pin Copper Substrate

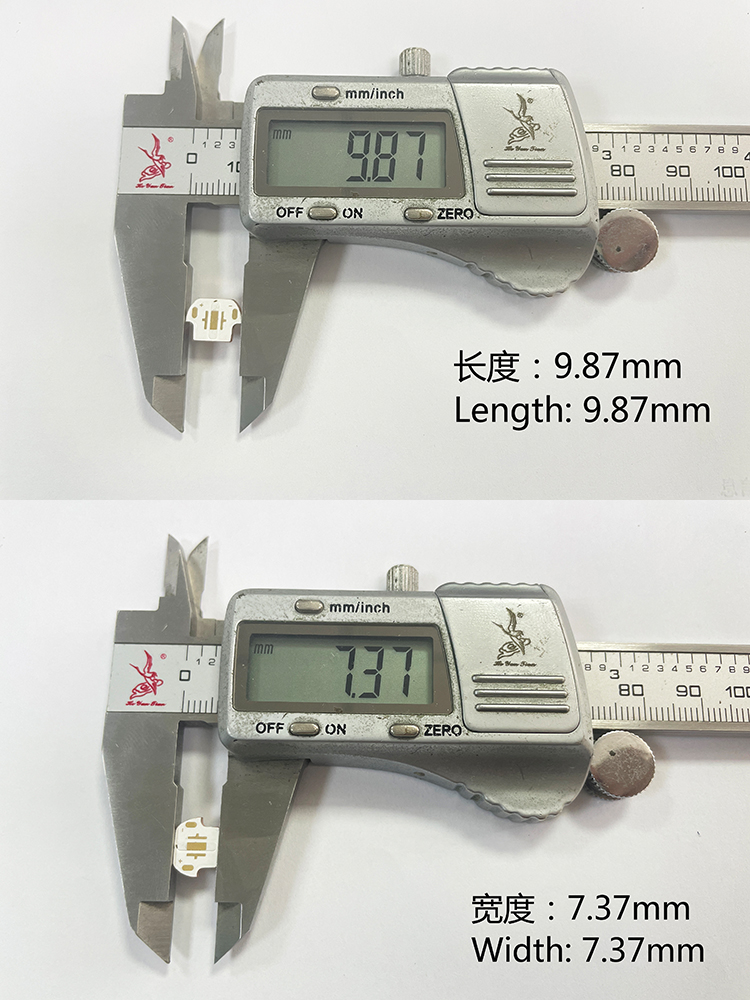

Size: L 9.87 * W 7.37 mm (± 0.1mm)

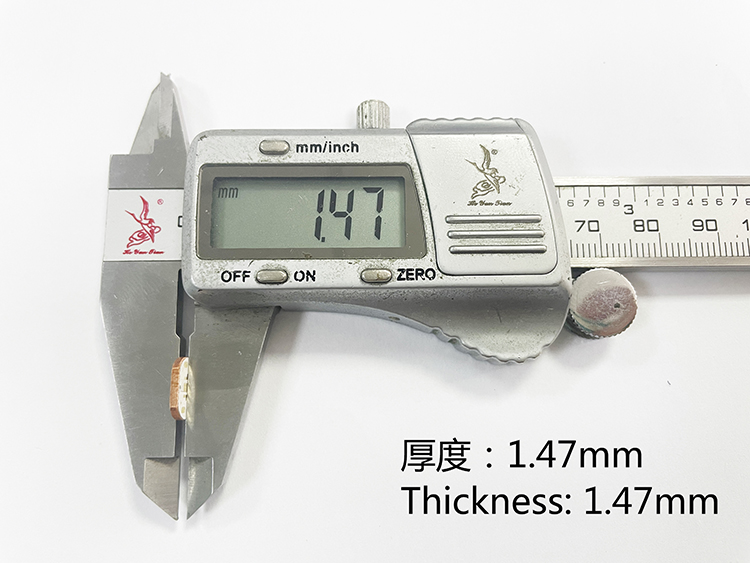

Thickness: 1.47 mm (± 0.1mm)

Surface Treatment: immersion gold

Copper Foil: 10Z

Ink: white oil

Material: copper

Applications: high power UV LED flashlight, laboratory biochemical reaction research, UV LED spot light source

3pin Cooper Base Board

3535 LED Light Copper Basal Plate

Related Tags : 3535 LED Copper PCB 3pin Cooper Base Board LED Light Copper Basal Plate
