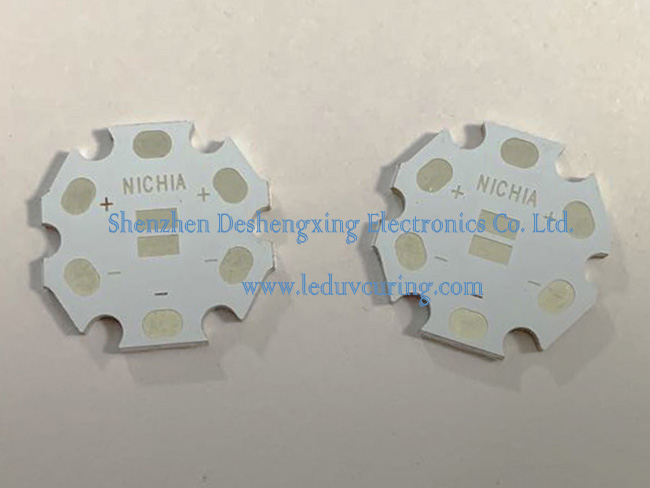

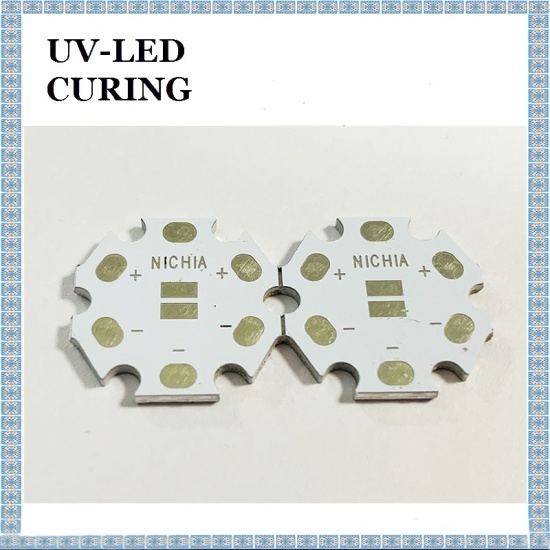

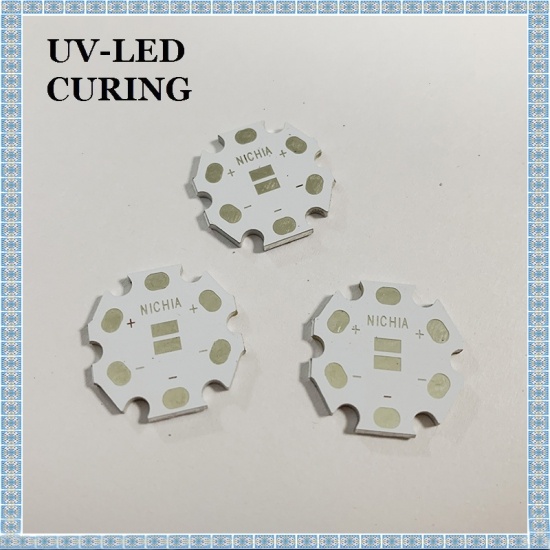

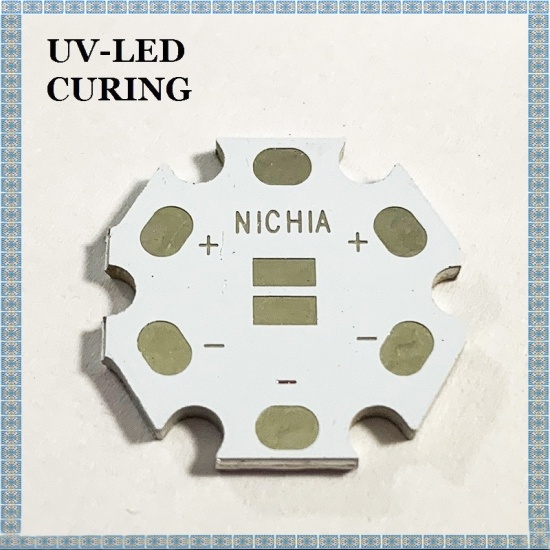

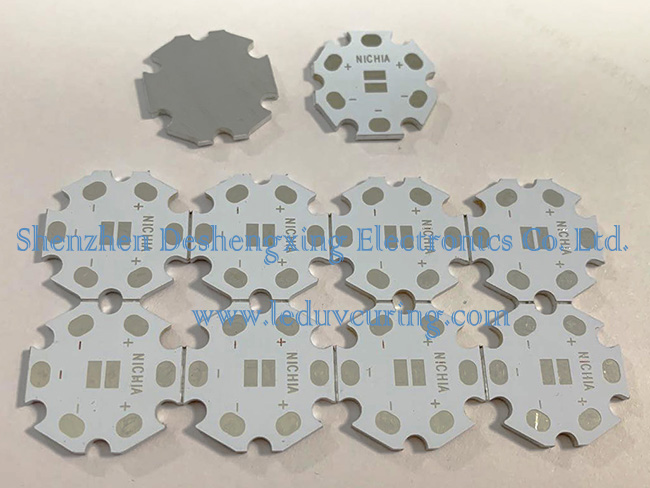

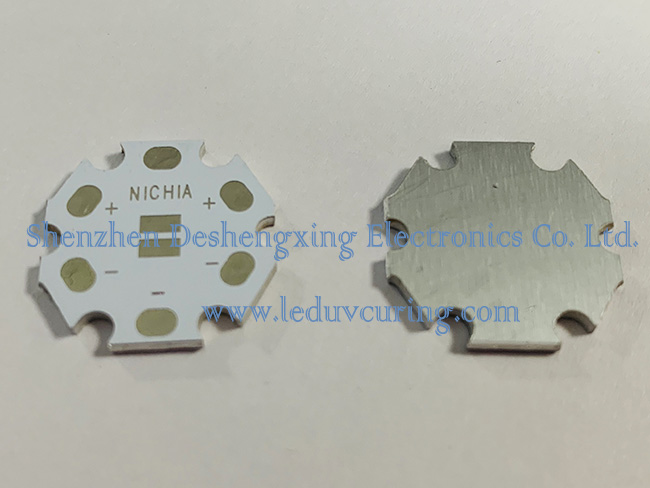

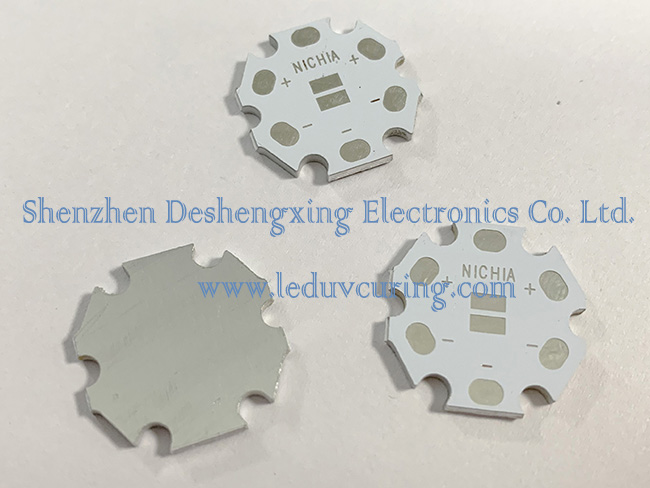

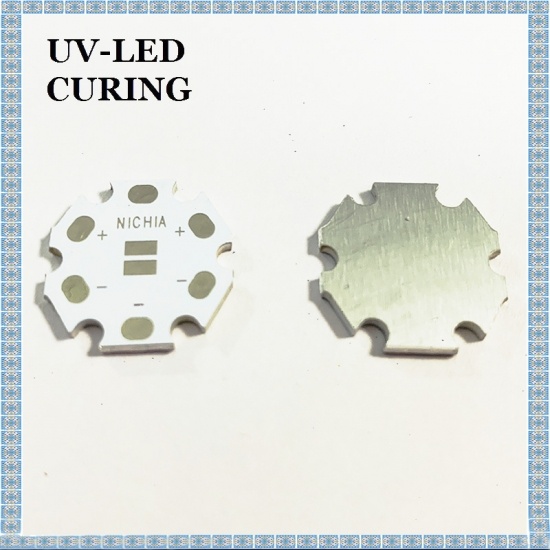

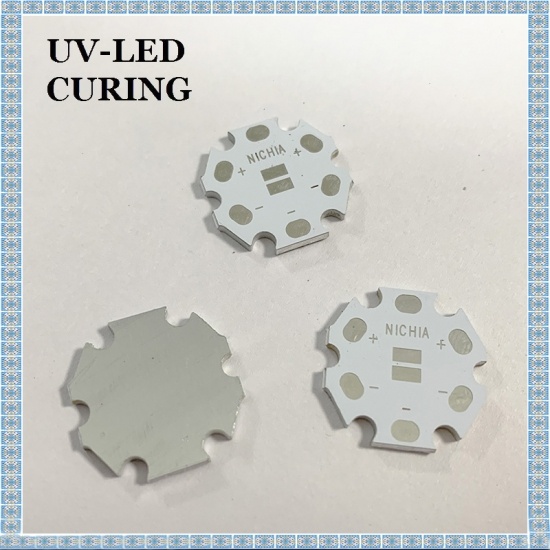

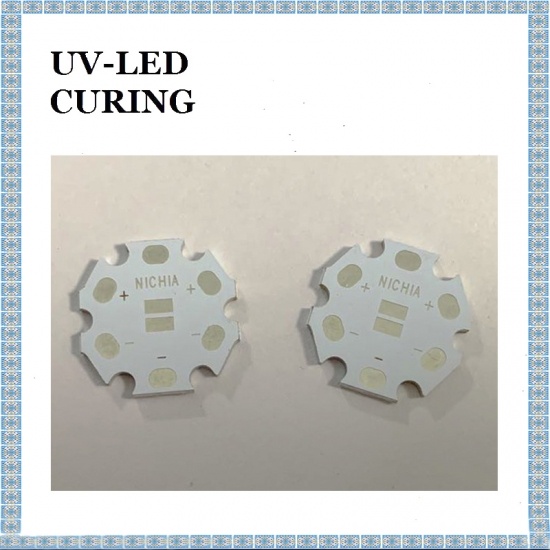

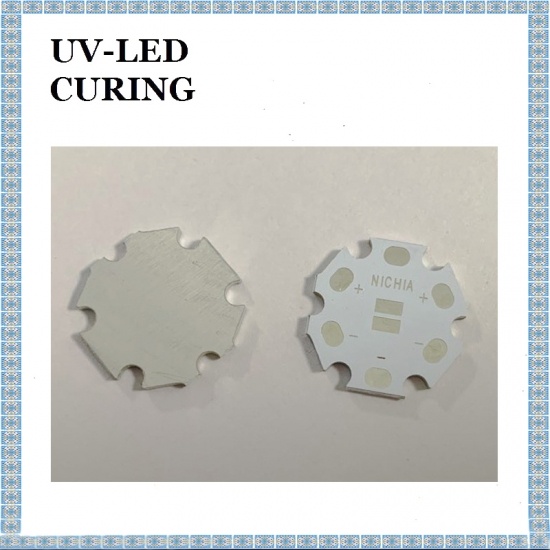

NICHIA 3535 UV LED Light Beads Aluminum Substrate is matched with NCSU276A and NVSU233B NICHIA LED.
model no. :
3535 Aluminum PCBBrand:
DSXUVport of dispatch :
ShenzhenPayment :
T/T 100% Before Shipmentoriginal region :
ChinaShenzhen Deshengxing Electronics Co., Ltd. manufactures aluminum printed circuit boards (PCB) with a full selection of high performance and low-cost materials around the world. Aluminum printed circuit boards (PCB) consists of a dielectric metal base with a bonded copper circuit layer to create superior heat transfer to help cool components while eliminating problems associated with managing fragile ceramics. Copper base substrate
Parameter of Aluminum Base Substrate :
Dimension : 20*1.6mm
LED : NCSU276A, NVSU233B
Material : aluminum
This type of 16mm Printed Circuit Board is suitable for 2835 LED light beads.
This is the type for welding three 3535 LEDs in parallel 20mm Copper Base Board, which is appropriate for all 3535 LED light beads.
NICHIA's two new lamp beads NCSU276A and NVSU233A can be equipped with a dedicated copper substrate. Nissan 3535 is tailor-made for copper substrates, for flshlight,laboratory,etc..
The NCSU033B Thermoelectric Separation Copper Substrate is a dedicated substrate for the UV LED spot light irradiation head.
CUN6GF1A 365nm 4 series 12V copper specifications: 20mm *1.5mm High brightness curing.
NICHIA dedicated copper substrate. Off-the-shelf NCSU033B copper board, NC4U133B copper board, NVSU333A copper board, size 20*1.6mm.
