150mm UV LED Linear Curing System UV Curing Machine 150mm UV LED Linear Curing System UV Curing Machine 150mm UV LED Linear Curing System UV Curing Machine 150mm UV LED Linear Curing System UV Curing Machine

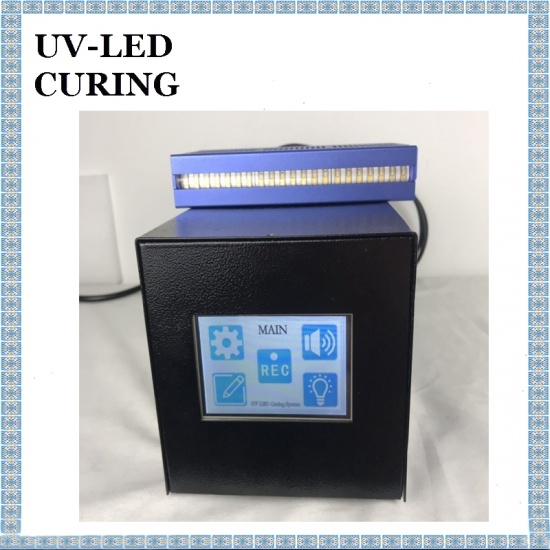

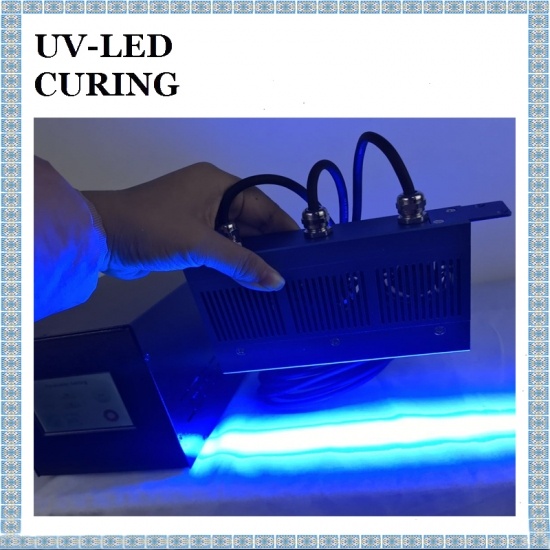

150mm UV LED Linear Curing System UV Curing Machine

150mm Linear UV LED Curing Light Source, with 365nm 395nm, curing UV glue and UV ink, can set time and illumination, external pedal RS232 and other multi-function.

  • model no. :

    150mm UV LED Curing Machine
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T 100% Before Shipment
  • original region :

    CHINA
Product Details

150mm Linear UV Light Curing Equipment for Screen Printing illuminating, with 365nm 395nm, curing UV glue and UV ink, can set time and illumination, external pedal RS232 and other multi-function.


Portable Linear UV Curing Machine Supplier



Parameter of Linear UV LED Ink Printing Curing Machine for Silk Screen :

Controller specification

shape

L320*W130*H130mm

weight

2.7kg

cool down

Air cooled

Input power

100-240V AC 50-60 HZ

material

Black, gold

Number of driving heads

One

RS232 serial communication

Can query and adjust intensity, time, mode

Display and operation

Touch screen for adjustable time and intensity

LED time accumulation

Active record cumulative usage time

External terminal block

Can be connected with single-chip, PLC and other equipment for control and working status feedback

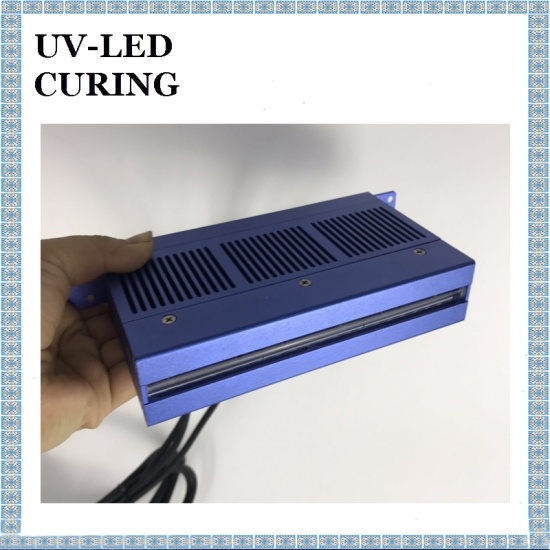

Glow head specifications

Light size

150 * 8mm

power

110W

Dimensions

L 192*W105*H30 mm

Recommended height

1-20 mm

cool down

Air cooled

wavelength

365 / 385 / 395 / 405

Material / weight

Sheet metal, blue paint / 0.25kg

Luminous power (mW/cm 2 )

365nm

2800mW/cm2 @ EIT

Prediction of service life

20000 H


Installation size of High Performance UV Offset Printing Curing Equipment :


Line Type UV LED Curing Machine Manufacturer


Application field of Small Area 365nm LED UV Curing Light Source for UV Glue :

The UV LED line source is one type of UV LED source, and the line source is a mode that only emits light. It is a long-range UV belt that is output through a specially designed optical lens set to meet the production needs of the edge banding, printing and other fields. Line light source has long life, cold light source, no heat radiation, long life without being affected by opening and closing times, high energy, uniform illumination to improve production efficiency, and no toxic substances are safer and more environmentally friendly than traditional light sources.


1. UV analyzer, biological genetic engineering, molecular genetics, medical hygiene, biological products, pharmaceutical research, health and epidemic prevention, dye chemical, petrochemical, textile industry, public security and political law department, cultural relics and archaeological department, where fluorescence analysis is required. The department can use it.  

2 , biochemistry , microbiology , genetics , genetics , medicine , catalysis, each channel uses different wavelengths of ultraviolet LED ,from 240nm to 410nm , every 5nm step, for detailed analysis   

3 , ultraviolet light therapy, medical applications, such as: dental curing, vitiligo treatment, wound complex promotion. 

4 , standard light source, because LED light spectrum is relatively single, energy is consistent, can be used as an effective standard light source  

5 , criminal investigation light source, with high-power LED , can emit a uniform intensity of light from 365nm to 780nm , from ultraviolet, purple, blue, green, blue, yellow, orange, red, to the infrared band, can provide 12 bands The light and includes a white light.  


More specifications please contact us or click : Linear Curing UV LED Light
