Fan/Water cooling is used to High Power 395nm UV LED Curing Lamp. Because of cold light source, it does not produce harmful ultraviolet radiation without thermal radiation and reduce the heat generated by the curing process.
model no. :
Customized 395nm LED UV Curing LampBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINALead Time :
15-30 DAYSOur products, like UV-LED CURING Water Cooling Customized 395nm LED UV Curing Lamp for UV Curing, are mercury free, safer and more environmentally friendly. High Power Water Cooling 395nm UV LED Curing Systems is simple equipment structure. Its service life can reach 20,000 hours.
Parameters of Customized Line LED UV Curing Light Source for UV Varnish :
Place of Origin
Guangdong, China (Mainland)
Brand Name
UV-LED CURING
Model Number
UV Curing Lamp
Rated Power
100~1500W
Voltage
220V
Application
UV curing
Product Name
UV curing Machine
Wavelength
395nm or customized
Certification
CE RoHS
Light Power Density
1-20W/cm2
Light Color
Ultraviolet
Packaging Details
Cartons/wooden Case

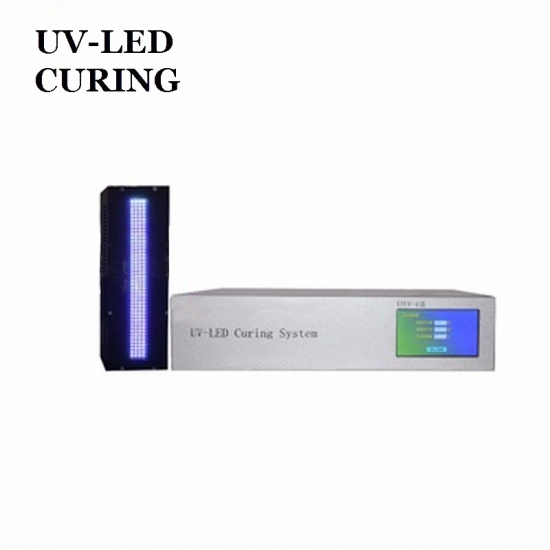

Technical Data of Fast Curing 395nm UV LED Linear Light Source Controller :
Type
XYUV - 4Ⅱ
Channel
1
The size of controller
L384*W284*H90mm
Terminal I/O
Input
Pedal switch & serial RS-232 communication signals
Output
Serial RS-232 communication signals
Cooling method of controller
Air cooling
Power supply voltage
AC100~240V±10%(50/60HZ)
Operation mode
Touch Panel
Ambient temperature and humidity
Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
Dimming/Exposure control
Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
Setting operation
Using the operating switch is set, Power key parameter switch, RS-232
External Control
External input
Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
External output
REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

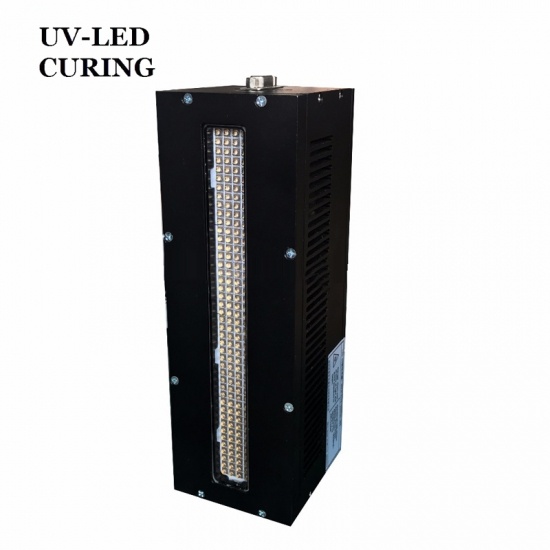

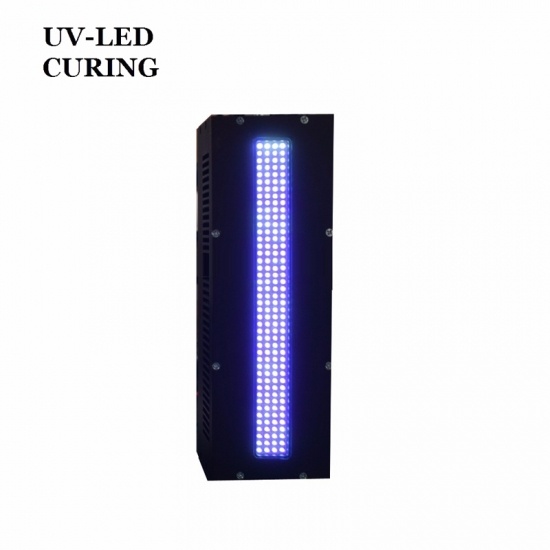

Water Cooling UV LED Line Light Source Irradiation Head Detail Parameters:
Model No.
Emitting Size
Wavelength
Light Intensity
Cooling Method
Power
Work Voltage
UV-LED CURING 200*20
200*20mm
395nm
4000mW/cm2
Air Cooling
550W
220V
Other Size could be Customized
High Effeciency UV LED Curing Lamp, because of its extra-long life, energy saving, stable output, high uniformity,has been chosen by customers. And also, mulyiple control modes is one of its advantages.
Professional and Effective UV LED Curing Dryer, the wavelength is 365~405nm, is not suitable for nails.
Air-Cooled UV LED Linear Light Souce is through professional designed optical lens module outputting a long and narrow UV LED light band, satisfying banding, printing and other production needs.
UV LED Linear Light Source Machine do not need to replace the ink, is power saving, high efficiency, practical, mercury free, etc..
Customized UV LED Linear Light Source System, its luminescent mode emits a linear light spot, is made of numbers of LED chips.
1000w 395nm UV LED Lamp Curing Machine is stable output, high uniformity, cold light source, low temperature.
