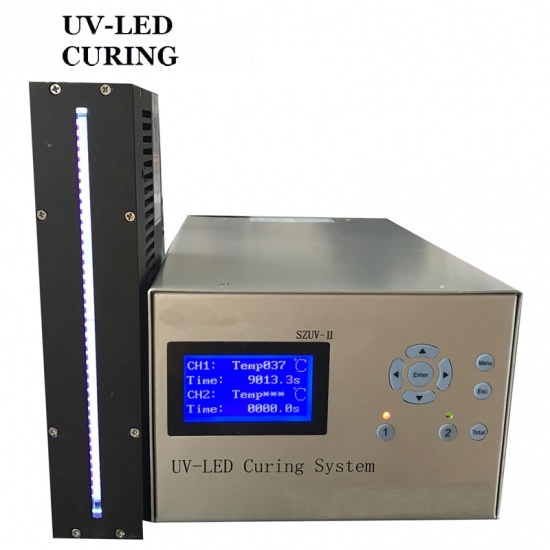

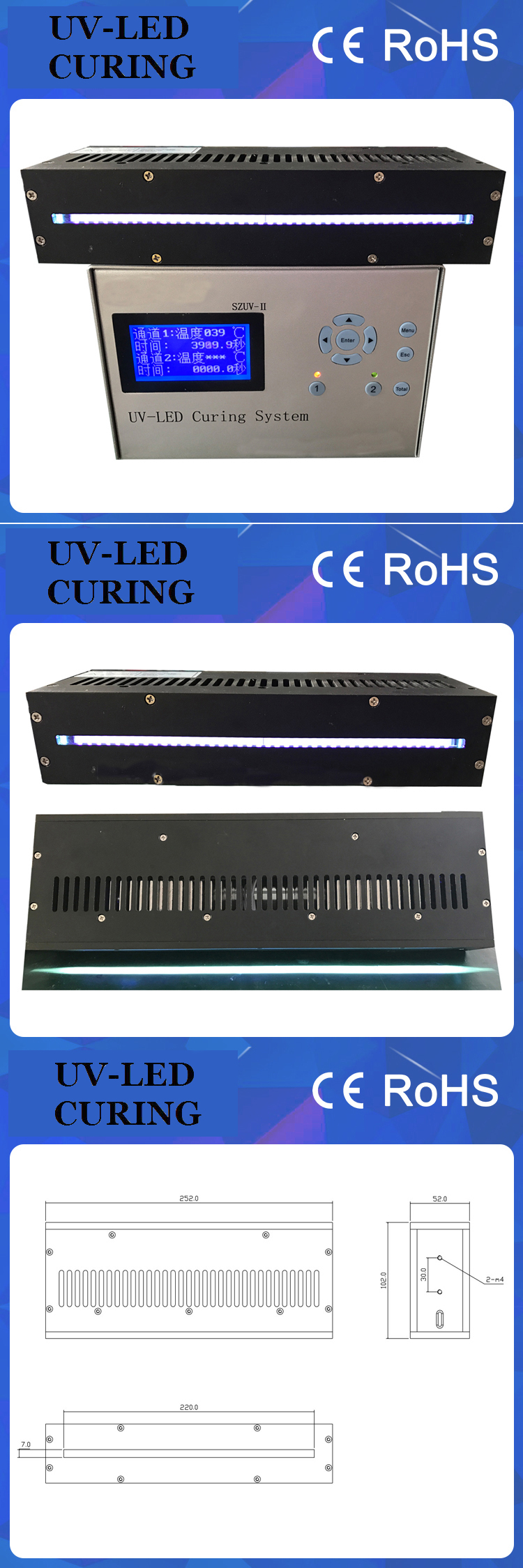

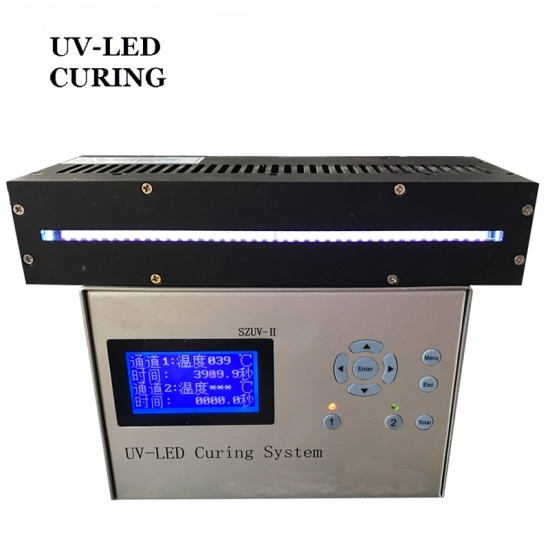

UV-LED CURING Professional Efficient UV LED Curing Lamp

UV-LED CURING Professional Efficient UV LED Curing Lamp

Professional and Effective UV LED Curing Dryer, the wavelength is 365~405nm, is not suitable for nails.

model no. :
UV LED Curing Light
Brand:
DSXUV
port of dispatch :
SHENZHEN
Payment :
T/T
original region :
CHINA
Lead Time :
15-30 DAYS

contact now

Product Details

UV-LED CURING Professional and Efficient UV LED Curing Dryer is no mercurcy,no Ozone, eco-friendly. Photoelectric induction, instant on/off, no preheating required.

Product Parameters of Professional UV Curing Dryer Curing UV Ink :

Type	UV Lamp	Place of Origin	Guangdong, China (Mainland)
Brand Name	UV-LED CURING	Model Number	UV-LED CURING-220x7
Wavelength	365nm~405nm	Cooling Method	Air cooling
Name	XZUV-2	Color	Purple
Channel	2	Packaging Details	Cartons

Professional and Effective UV LED Curing Dryer Lamp

Technical Data of Linear Type LED UV Exposure Curing Machine Controller：
Type	SZUV - Ⅱ
Channel	2
The size of controller	L200W310H150mm
Terminal I/O	Input	Pedal switch & serial RS-232 communication signals
	Output	Serial RS-232 communication signals
Cooling method of controller		Air cooling
Power supply voltage		AC100~240V±10%(50/60HZ)
Operation mode		Touch Panel
Ambient temperature and humidity		Ambient temperature: -10℃—50℃ Relative humidity: 25%—85%RH
Dimming/Exposure control		Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)
Setting operation		Using the operating switch is set, Power key parameter switch, RS-232
External Control	External input	Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch
	External output	REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

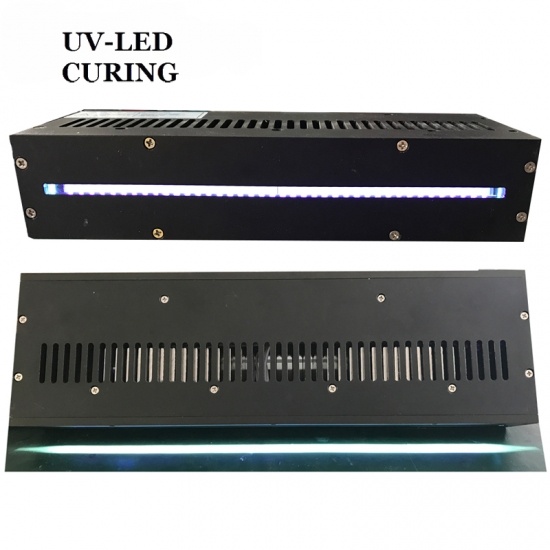

Irradiation Head Specification of High Intensity UV Printer Curing Light Source :
Curing Area	Wavelength	Power Intensity	Cooled Method
200*7mm	395nm	1000W/cm²	Air Cooled
