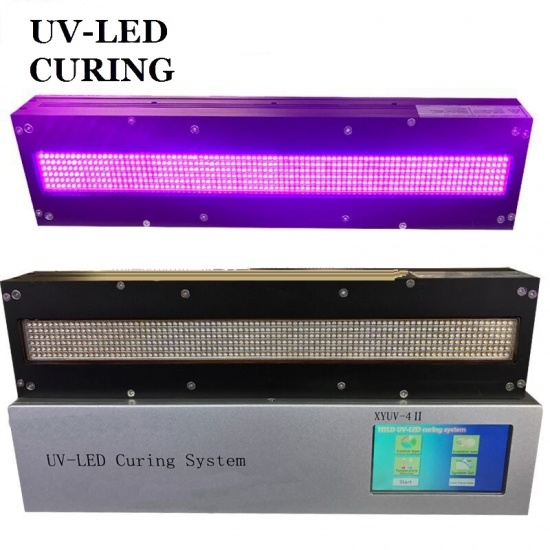

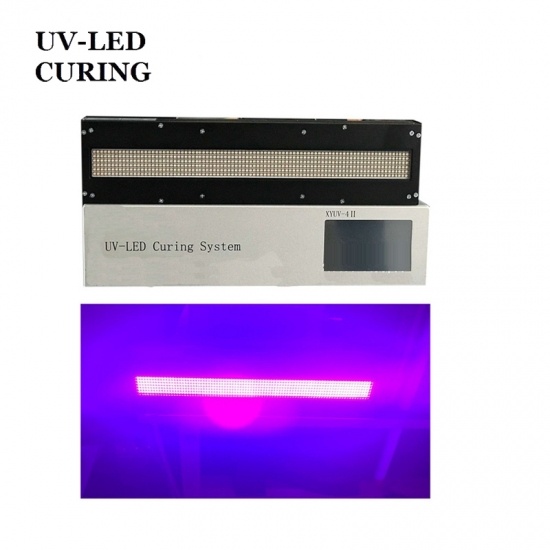

Hand-held UV Curing Equipment for Label Printing UV Curing Machine

Technical Data of the Controller：

Type

XYUV-4Ⅱ

Channel

1

The size of controller

L384*W284*H90mm

Terminal I/O

Input

Pedal switch & serial RS-232 communication signals

Output

Serial RS-232 communication signals

Cooling method of controller

Air cooling

Power supply voltage

AC100~240V±10%(50/60HZ)

Operation mode

Touch Panel

Ambient temperature and humidity

Ambient temperature: -10℃—50℃  Relative humidity: 25%—85%RH

Dimming/Exposure control

Digital Debugging, Manual exposure control, Foot control or timing control (0.1~9999s)

Setting operation

Using the operating switch is set, Power key parameter switch, RS-232

External Control

External input

Enter irradiation alone Irradiation stop input, Interlocking, All lights illuminated input, Query switch

External output

REDAY signal, Error signal, Warning Output, Busy output (Various skinhead), +5VOutput(indicator used)

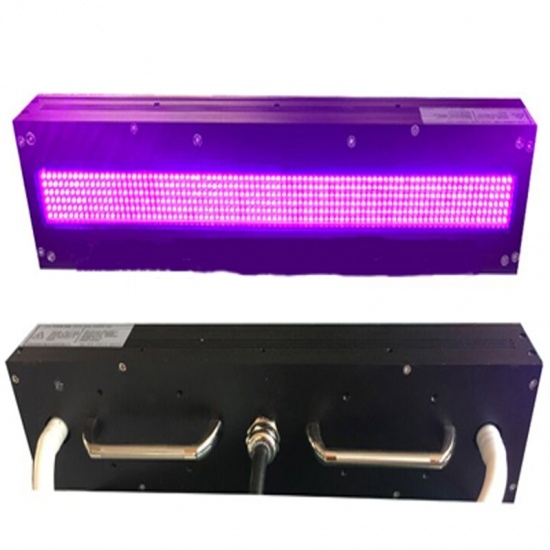

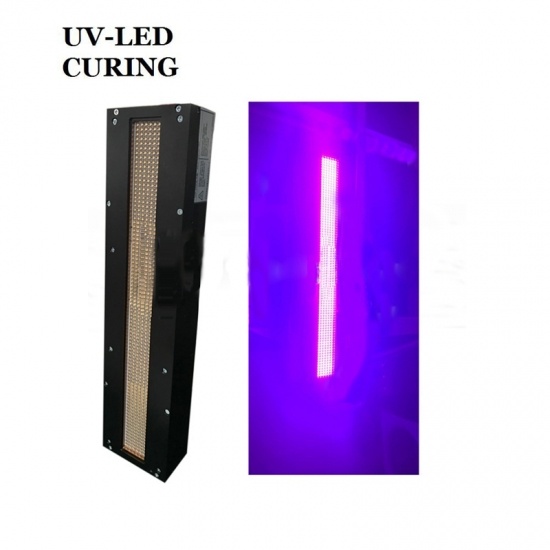

Technical Data of the 365nm-395nm UV Curing Equipment Irradiation Light Head :

Input voltage

220VAC 50Hz / 60Hz

Cooling method

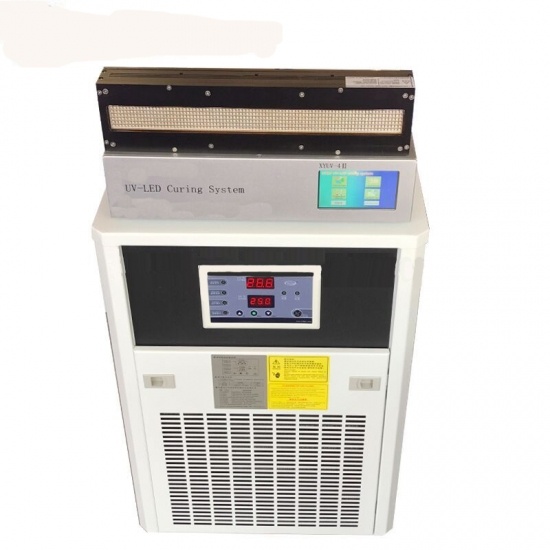

Water cooling

Life

>10000 H

Intensity

0-100% adjustable

Irradiation distance

10-100mm adjustable

Optic power

13000mw/cm² (10mm irradiation distance)

Product Feature of Immediate Drying Ultraviolet LED Curing Machine 365-395nm :

1.Instant ON / OFF, NO required.

2.Adjustable curing distance, UV output intensity and irradiation time.

3.Energy saving and environmental protection.

4.Long life.

5.No infrared radiation, cold light source, suitable for all types of heat-sensitive material curing.
