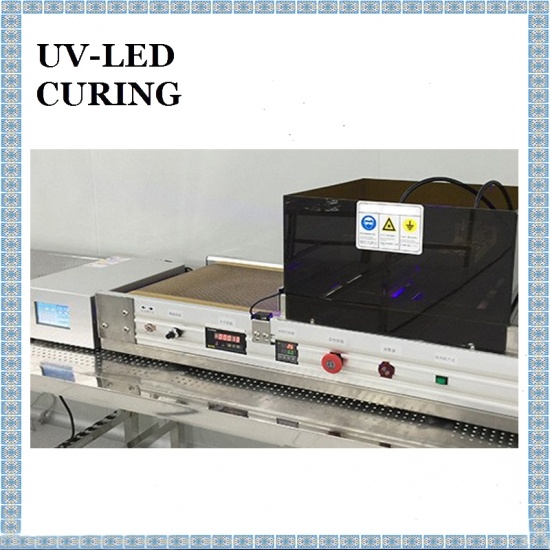

High Quality UV LED Curing Conveyor Machine Dryer Screen Printing

High Quality UV LED Curing Conveyor Machine Dryer Screen Printing can be set by the display screen, Multi-Channel drive, Bending resistance cable, etc..

Parameters :

Speed m / min : 1-10 adjustable

Outside Dimension mm : L1200 * W410

Belt Material : Teflon / Green Belt / Stainless steel mesh belt

Number of Light Sources : two LED lights can be placed at the same time

Effective Width of Belt : 350mm (with product guide)

Weight : about 10 KG

Power Consumption : 50W

Light Source Height : adjustable

Internal Draft Device of the Assembly Line : it needs to be equipped with the draft device

To the Product Line : both ends can be connected to other production lines

Air Pumping Unit at the Top of the Assembly Line : air pumping unit shall be selected

Sensor : yes

Draft Switch : yes

Emergency Stop Button : yes

Temperature Monitoring Report : yes (internal temperature > 55 degree)

Linear Speed Display : yes

Alarm Buzzer : yes

Light Source Controller Specification :

External Dimension mm : according to the specifications of light source luminescent head

Color : full aluminum housing

Input Power : 100-240VAC

Standby Power : <50W

Setting Interface : key + key knock / touch screen + password

Back End Serial Port of Controller : pedal, MCU, PLC, RS232 interface

Number of Driven Luminescent heads : 1 PCB standard

1.It can be set by the display screen : irradiation intensity, irradiation time and irradiation mode.

2.Multi-Channel drive can achieve independent control, independent adjustment of parameters.

3.Bending resistance cable : the bending resistance robot cable is adopted for the cable between the luminous head and the controller.

4.Interlock signal : short connection allows the light head to light up, automatic device interlock signal, the controller detects this signal before the LED lights up.

5.Serial Port Function : adjustable irradiation intensity, irradiation time and irradiation mode. The same industry can only control LED on and off functions.

6.Signal : by defecting the working status signal of the luminous head and various abnormal alarm signals. The next step of work is automatically carried out.

7.LED Light Time : it can be stored in the equipment (if the new LED is replaced, the manufacturer can reset it).

8.Highlights : it has the function of preparing signal output. When at least one bald heads is in the irradiable state, it outputs the signal.

The Specifications of Light Source Luminescent Head :

Wavelength : 365nm, 405nm

Cooling Method : air cooling

Connection Cable : 2m, 5m

Optical Power : 2000mW/cm2

Weight : 2 KG

Working Distance : 20mm

Color : silver (all aluminum)

Power Consumption : 200W

Configuration :

Top Optional : to the suction pipe suction device

Light Source Configuration :

1.Optional 1 to 2

2.The maximum luminous size is 100-300mm

3.Wavelength : 365-405nm

Exhaust Port Configuration : standard, no suction device to be selected
