100*20mm 365nm UV LED Curing Systems for UV Glue Curing

Environmental pollution is small, UV coating VOC content is very low, is recognized green environmental protection product. So we designed Customized 100*20mm 365nm UV LED Curing Systems specially for it. But UV Curing system not only use on UV coating, also can use in UV printing, UV plastic glazing oil, UV varnish. Normal temperature curing, UV LED Curing Machine is suitable for plastic work-piece, do not produce thermal deformation.

Parameters of High Power UV Curing Light for UV Glue :

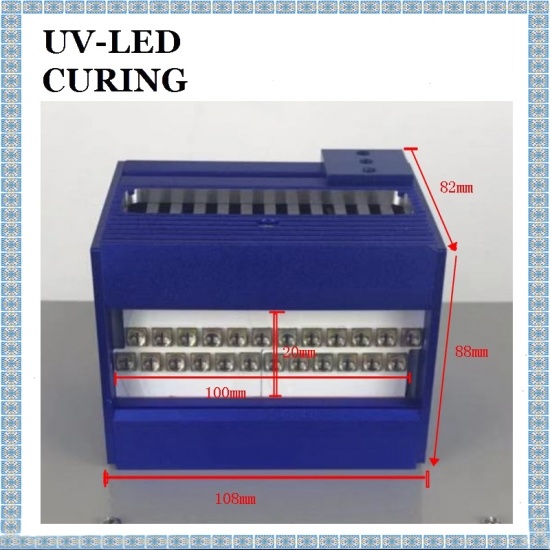

Irradiation Head :

Power : 170W

I / O Voltage : 110V / 220V

Current : 1.8A

Illuminance : 1-6W

Cooling Method : fan cooling

Emitted Area : 100*20mm

Size : 108*82*88mm (L*W*H)

Weight : 1kg

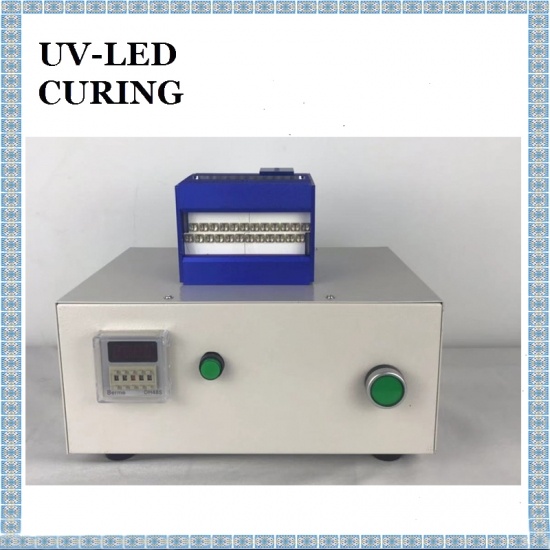

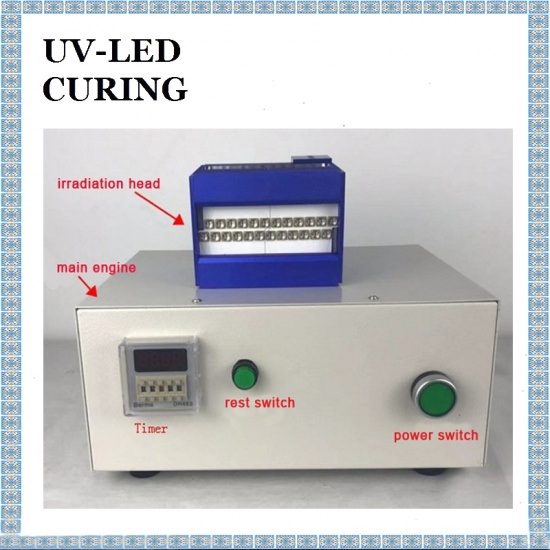

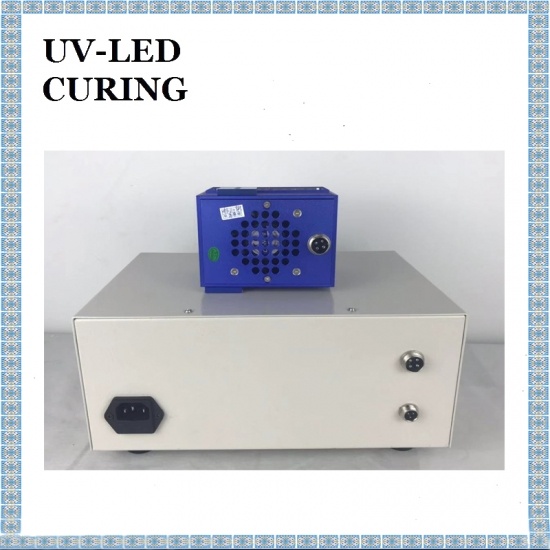

Controller :

Control Method : pedal control

Size : 280*200*230mm (L*W*H)

Weight : 3.5kg

Configuration : pedal*1, connection line*1, power line*1

Advantages of Hand-held Linear Ultraviolet Light Source Curing UV Ink :

1.The product has simple operation steps, compact design and convenient installation.

2.High power UV LED, fast curing speed.

3.With timing function, you can set the time.

Application of High Intensity 365nm UV Glue Curing Machine :
