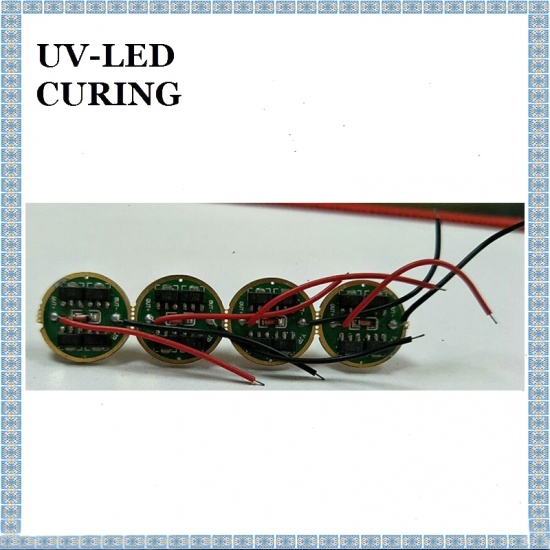

UV Flashlight Driver Constant Current Plate is 1400mA, single dimmer 7135*4IC circuit board, 17mm.
model no. :
1400mA 17mm 7135*4IC Circuit BoardBrand:
DSXUVport of dispatch :
SHENZHENPayment :
T/Toriginal region :
CHINAUV Flashlight Driver Board 1400mA 17mm Single Dimmer 7135*2 7135IC Circuit Board
Parameters
Specification: 7135*4
Size: diameter: 17mm
Output Current: 1400mA
Illustration
UV LED constant current circuit, high current, is especially suitable for 5W UV LED beads.
Input voltage: 3-6V
Use 7135IC combination is with each sufficiency 350mA.
7135*4 Output Current is 1400mA.

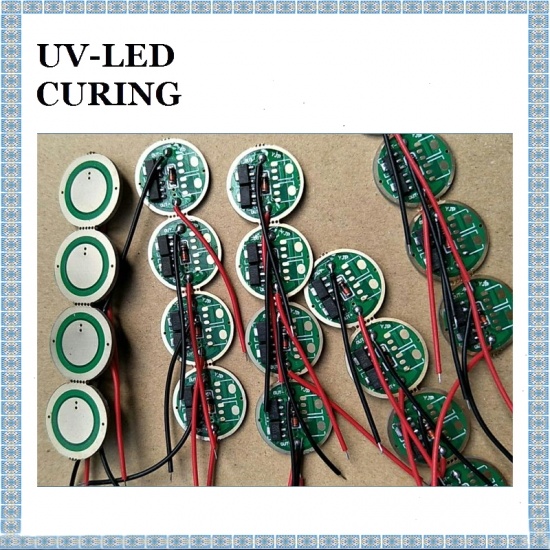

The diameter of PCB is 17mm, using double-sided gold-plated version, excellent quality, suitable for single lithium battery or 3AA / 4AA ordinary battery driver, and also suitable for UV Flashlight, modification of lamps, etc..
Applicable lamp bead model: the lights of NVSU233A, NVSU233B, NICHINA 5W, CUN6GB1A, Seoul in Korea SVC5W, LG5W.

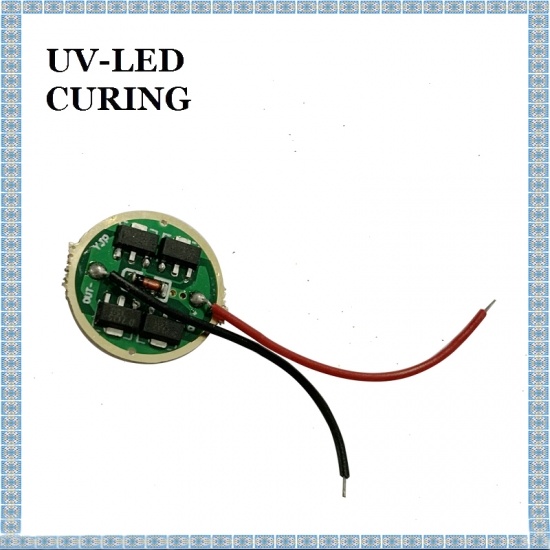

(Dirver plate has been weilded red and black output wire, wire red terminal connects LED positive, black terminal connects LED negative, the back of the metal ring connects battery input positive, the back of the outer metal ring connects battery input negative.)
Note:

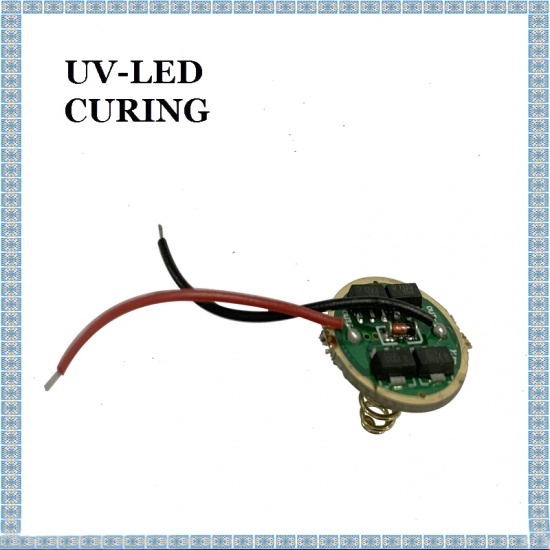

The dirver board contains a small positive spring.
