Japan NICHIA UV 365nm 6W UV Flashlight Fluorescence Detection System

NICHIA 6w Original Source UV Flashlight is made up with three-stage hard oxidation shell of aluminium alloy, inside Japan NVSU233A 5w 365nm UV LED. It's special in detecting amber, jade, cioin,etc..

  • model no. :

    NICHIA UV 365nm 5W UV Flashlight
  • Brand:

    UV-LED CURING
  • port of dispatch :

    SHENZHEN
  • Payment :

    T/T
  • original region :

    CHINA
Product Details

Imported Japan NICHIA UV Flashlight is 365nm, 6W. The produvt is suitable for fluorescence detection, such as amber, honey wax, south red jade, coin, and other identification.


Parameters

Brand : DSX

Type : 233A

Place of Origin : Japan NICHIA

Size : pure 365nm

Color (shell) : S2+ Black or Gray

Material (shell) : Aluminium Alloy

Material (Len) : Glass

Gear Model : single gear

Optical Mode :  reflected light of aluminum

Switch Position : tail

Switch Mode : press button

Operation Type : AMC7135*4

Battery Type : 18650 lithium battery can be used with a protective plate or without a protective plate

Battery Usage : one

Packing : white box

Diameter : 24.1mm

Length : 118mm

Weigh (UV Flashlight) : 76g

Weigh (include Packing) : 88g

Accessories : charger, protective sleeve, packaging box

Because of the distance, the battery is not easy to transport. Please provide one battery of 18650 for yourselves. (18650 lithium battery can be used with a protective plate or without a protective plate)


Application Area

1.High-grade tobacco and alcohol anti-counterfeiting industry

2.Stamp collection appraisal industry

3.Amber jade appraisal industry

4.Antique collection appraisal industry

5.Identification of anti - counterfeiting notes

6.Fluorescent seal ink industry

7.Global currency security industry

8.Paper towel fluorescence detection industry

9.Fluorescent fiber inspection industry

10.Dust, fiber and other industries

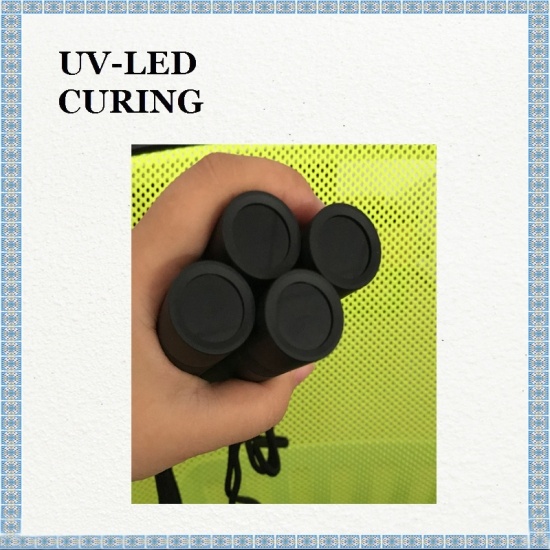

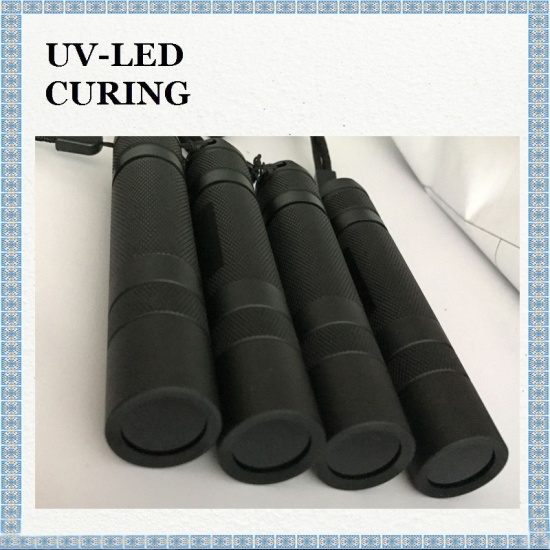

The UV Flashlight has black and gray (random delivery), both has optical filter, in which most of customers are used for detection and identification. Purple light of bring optical filter is more pure. If you don’t need optical filter, please explain in advance.

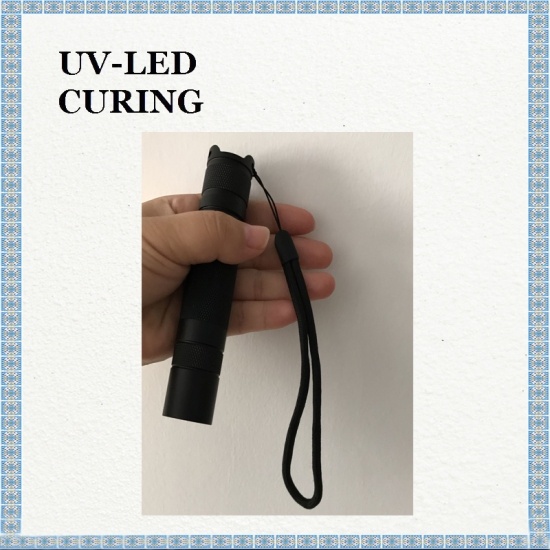

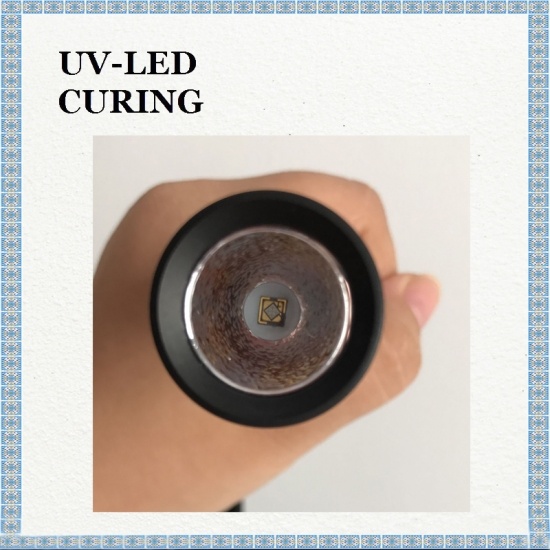

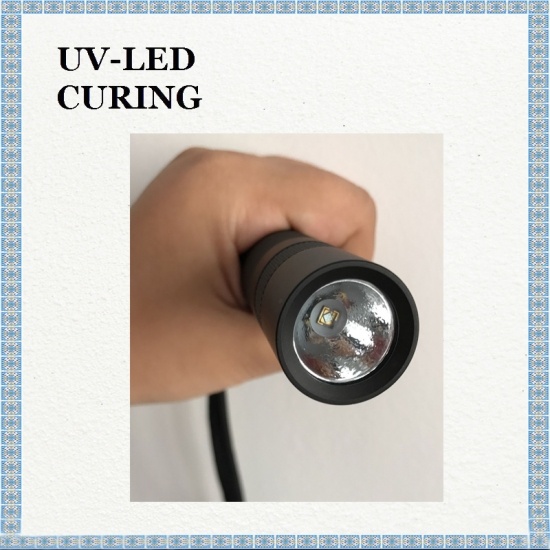

NICHIA UV 365nm 5W UV Flashlight


UV Flashlight Check the Authenticity of Foreign Currency

UV Flashlight Fluorescence Detection 365nm


Fluorescence Detection for stamp

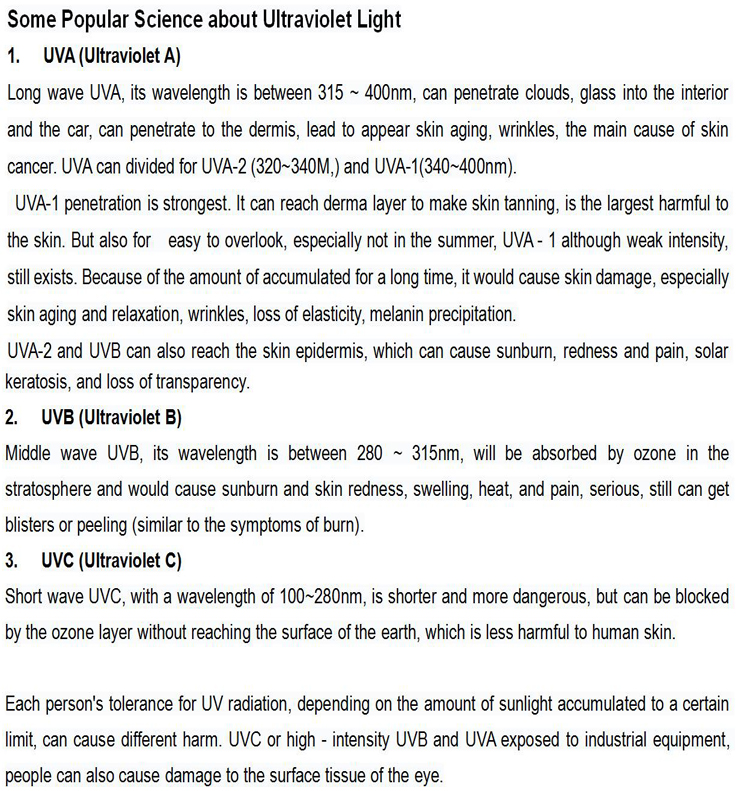

According to ISO-DIS-21348[4], UV radiation is classified as follows:

Name

Wavelength

Unit (eV)

UVA

400-315nm

3.10-3.94eV

NUV

400-300nm

3.10-4.13eV

UVB

315-280nm

3.94-4.43eV

MUV

300-200nm

4.13-6.20eV

UVC

280-100nm

4.43-12.4eV

FUV

200-122nm

6.20-10.2eV

VUV

200-100nm

6.20-12.4eV

LUV

100-88nm

12.4-14.1eV

SUV

150-10nm

8.28-124eV

EUV

121-10nm

10.2-124eV

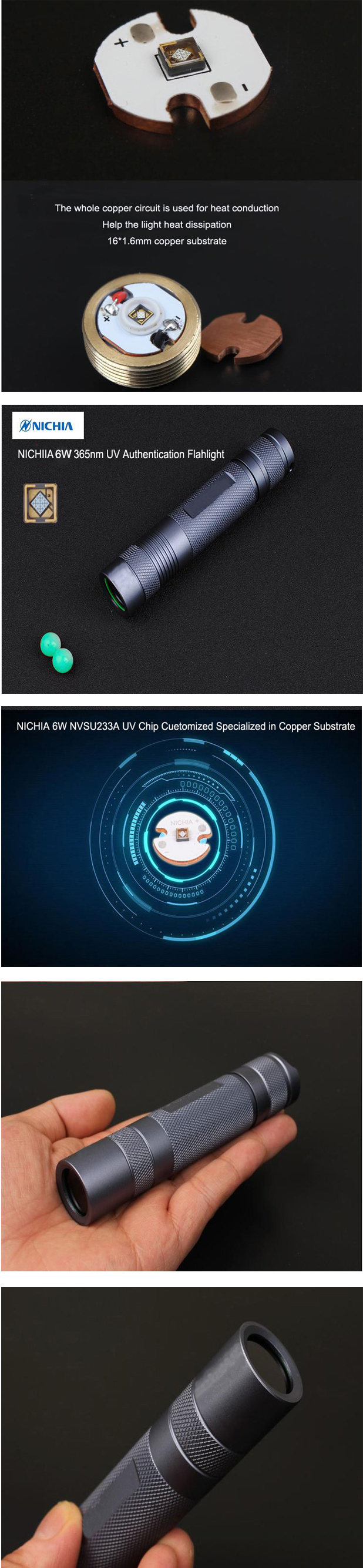

Imported Japan NICHIA UV Flashlight


Imported Japan NICHIA UV Flashlight 365nm 5W
