UV LED Flashlight NICHIA 365nm 3W

Nichia 365nm UV LED Flashlight is a perfect 365nm LED in the market. It almost has no stray light.365nm can detect cash, fluorescent agent,prayer beads, traces of forensic,etc.

model no. :
UV LED Flashlight
Brand:
DSXUV
port of dispatch :
HongKong
Payment :
T/T 100% before shipment
original region :
CHINA
Lead Time :
7days

contact now

Product Details

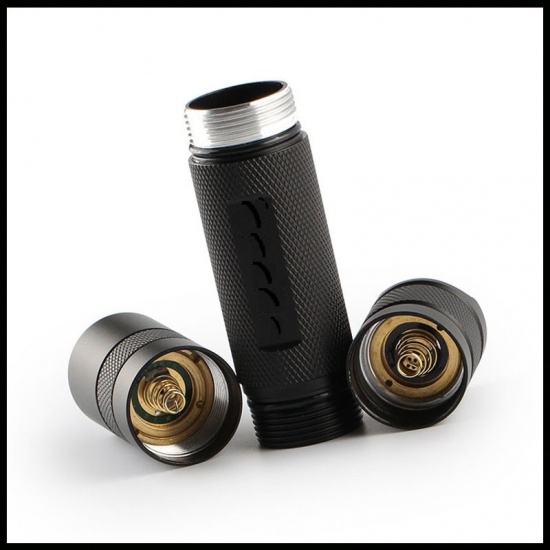

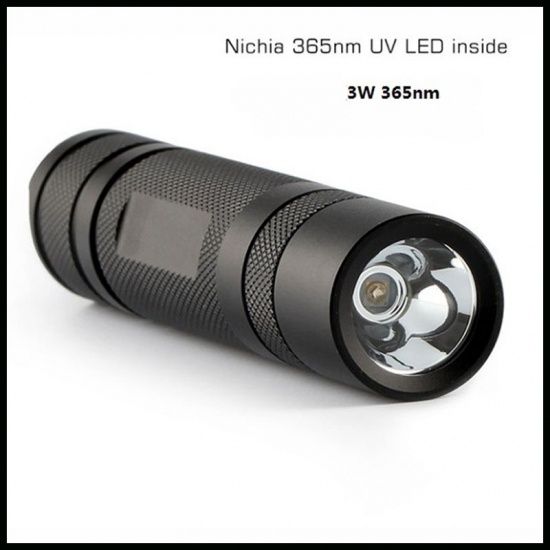

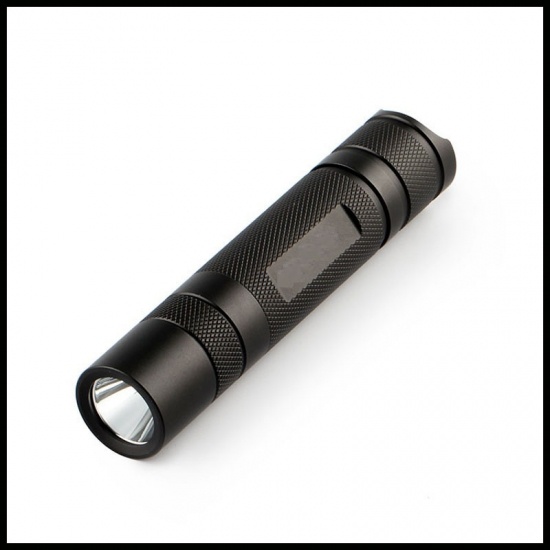

NICHIA 3W 365nm UV LED FLASHLIGHT DESCRIPTION

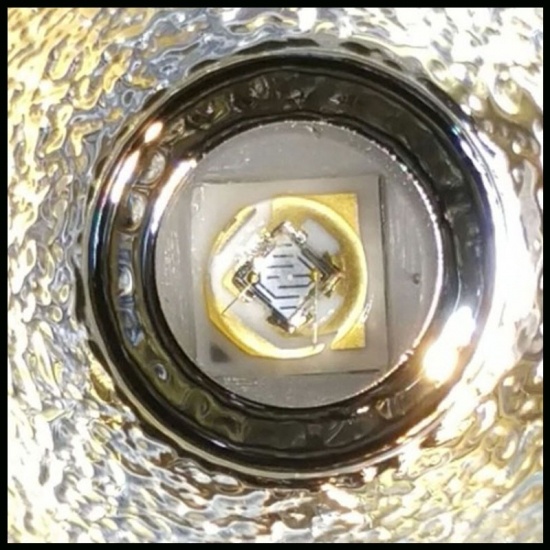

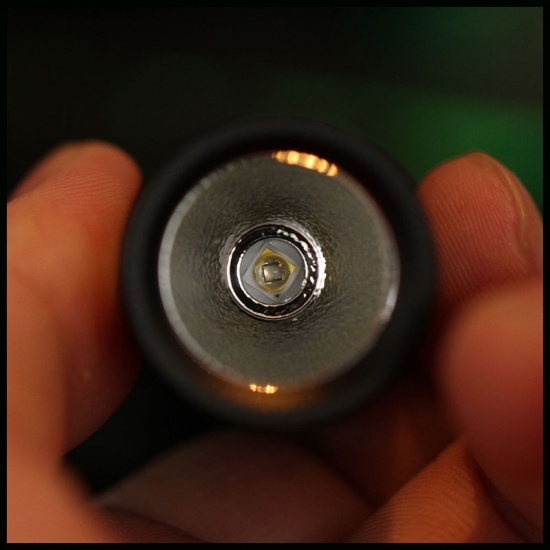

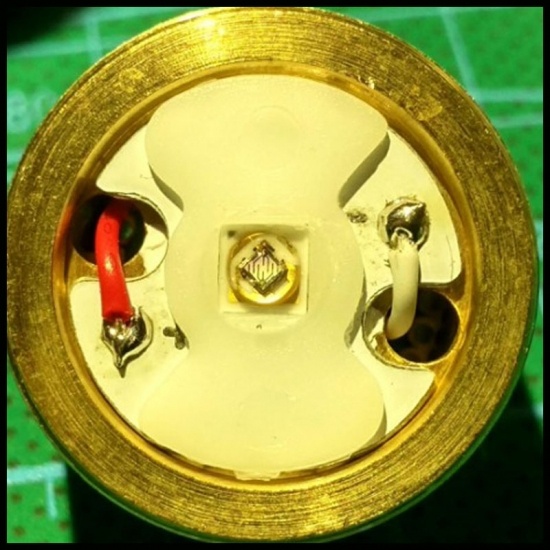

NICHIA UV 365nm led flashlight ,nichia 365UV in side ,OP reflector,Fluorescent agent detection.Nichia 365nm LED is the best 365nm LED in the market. It almost has no stray light.365nm can detect cash,fluorescent agent,prayer beads, traces of forensic,etc.

NICHIA 3W 365nm UV LED FLASHLIGHT SPECIFICATIONS

Brand	UV-LED CURING
Model	276A
Lamp	NICHIA UV LED
Wavelength	365nm
Color	S2+ black
Material	Aluminum alloy
Lens material	Glass
Input Voltage	3.6-4V
Forward Current	700mA
Radiant Flux	910mW
Power Dissipation	3W
Switch	End click switch
Driver specification	AMC7135*2
Battery	18650 1pc
Packing	white box paperback industry
Size	Diameter 24.1mm Length 118mm
Weight	76g (Excluding 1 battery)
Accessories	Flashlight + CHARGER + external packaging

NICHIA 3W 365nm UV LED FLASHLIGHT Application

A. Fluorescence observation of ore.

B. Cleaning detection of oil pollution.

C. Biological polymerization and fluorescence observation.
D. Air conditioning refrigerant leakage detection.

E. Detection of various traces and cracks.

F. Leakage detection of engine lubricating oil.

G. Table UV glue, adhesive curing curing intervention.
H. Collection of paper money, amber, jade, anti-counterfeiting testing.
I. Criminal investigation: fingerprint, fine spot, bloodstain observation and biochemical test.
J. Penetrant testing, fluorescent flaw detection, cosmetic brighteners and fluorescent agents detection.
K. Degreasing cleaning confirmation: degreasing cleaning confirmation for food industry, kitchen, cooking utensils and tableware.
L. Pollution inspection: electronic components, motherboard, dust inspection, LCD panel, clean room entry inspection.
M. Fluorescent flaw detection: fluorescent penetrant inspection and fluorescent magnetic particle inspection for iron and steel, non ferrous metal, automobile, aircraft, etc.N.Leak check: hydraulic machine, tank, pipe, oil leakage inspection, using fluorescent agent Water Leakage inspection, pipeline leakage, chemical UV glue.
